3. Remove the remaining 2 pins and springs from the same
side of the EXP base.

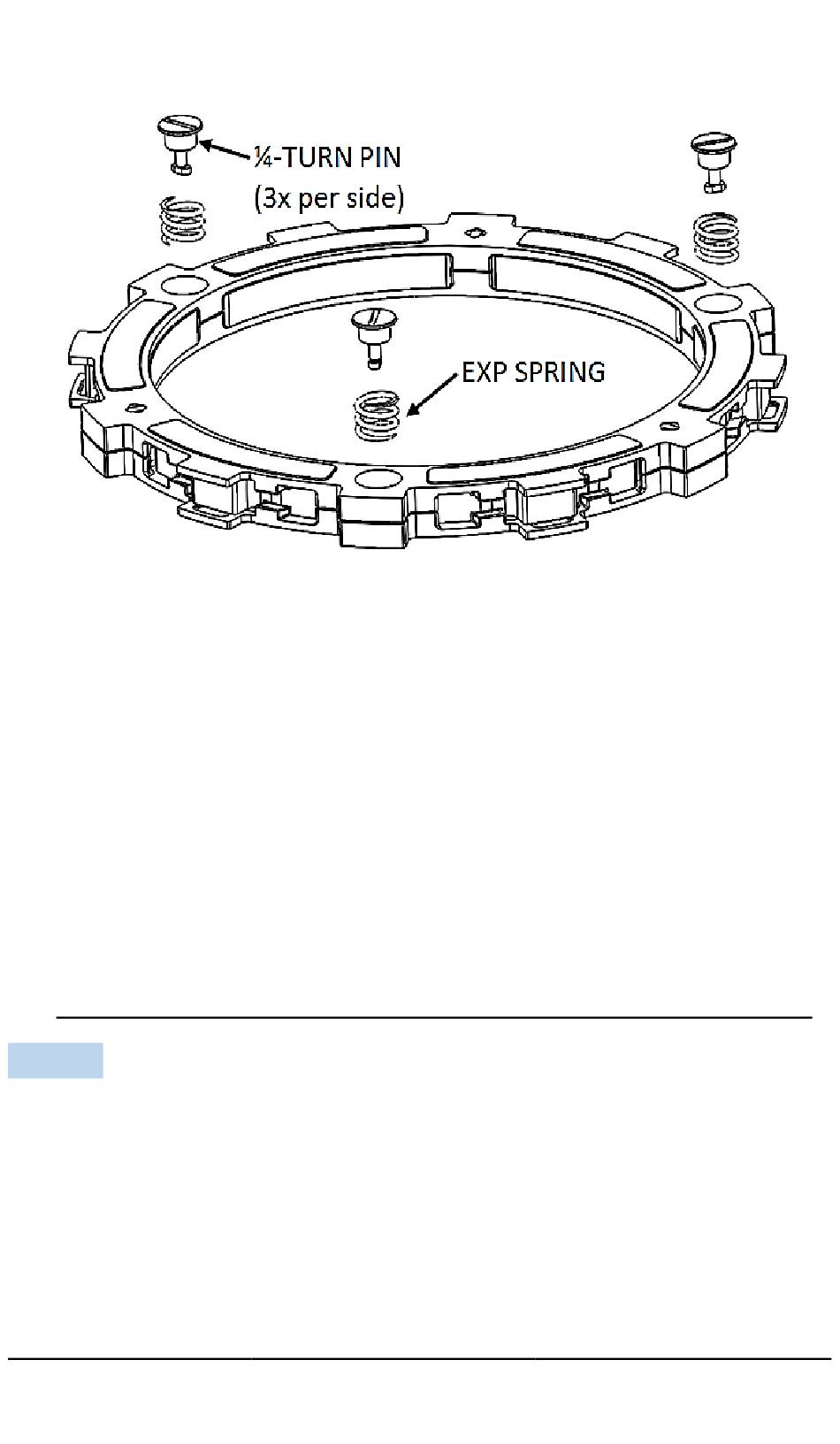

4. Drop a new spring into the spring slot on the base, then
add the ¼ turn pin.
5. Push the turn pin in far enough to clear the base, then
turn 90° and release the pin. The pin should sit almost
flush with the EXP base.
6. Flip the EXP friction disk over, and repeat on the other
side depending on engagement preference.
7. If you need to disassemble the EXP disk, you can watch
the video on our website under Tech Tips at
www.rekluse.com/support/videos/atv-mc-support-videos.
NOTE: To maintain even pressure, when using two different
color spring sets, install one set of 3 on one side of the EXP
and the remaining set of 3 on the other side.
Doc ID: 191-7913A
Doc Rev: 082018
Pg. 45
