7. Hold a TEC drive plate so that the "shark fin" notches face
toward the right. All the drive plates will follow this
orientation.
Note: Proper orientation of the drive plates is critical for
optimal clutch performance. If you install them
backwards, the clutch will still function but will lack
proper modulation performance.
8. Align the drive pin notches in the steel drive plate with
the drive pins on the hub, then install the drive plate into
the basket. Be sure that the drive pins are seated in the
notches and not in the bigger sections.
Pg. 12

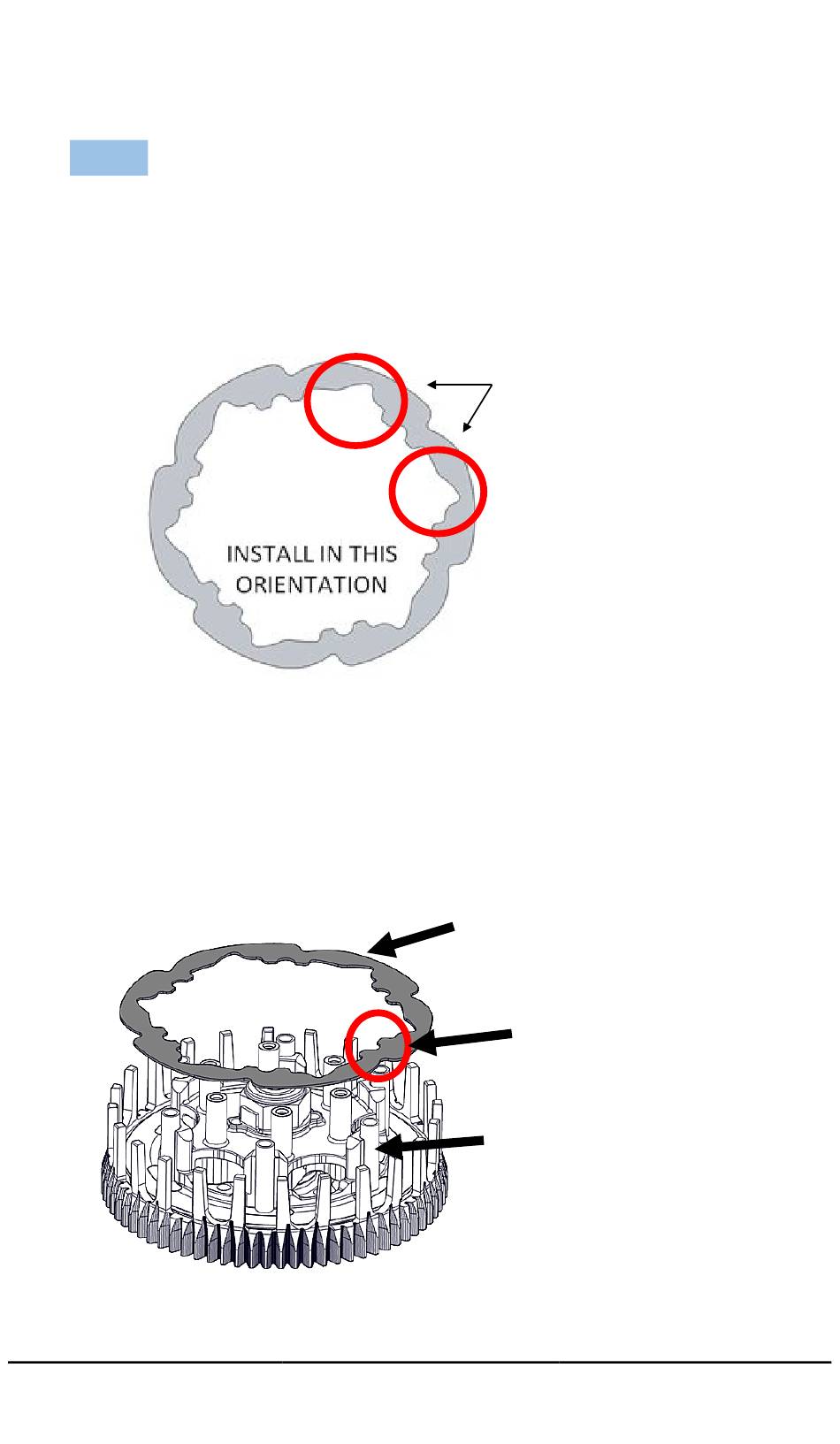

Install steel drive
plate first
Doc ID: 191-7913A
Doc Rev: 082018
Face the "shark fin"
to the right.
Drive pin notches
Drive pins
