Rekluse RadiusCX Installation & User Manual page 13

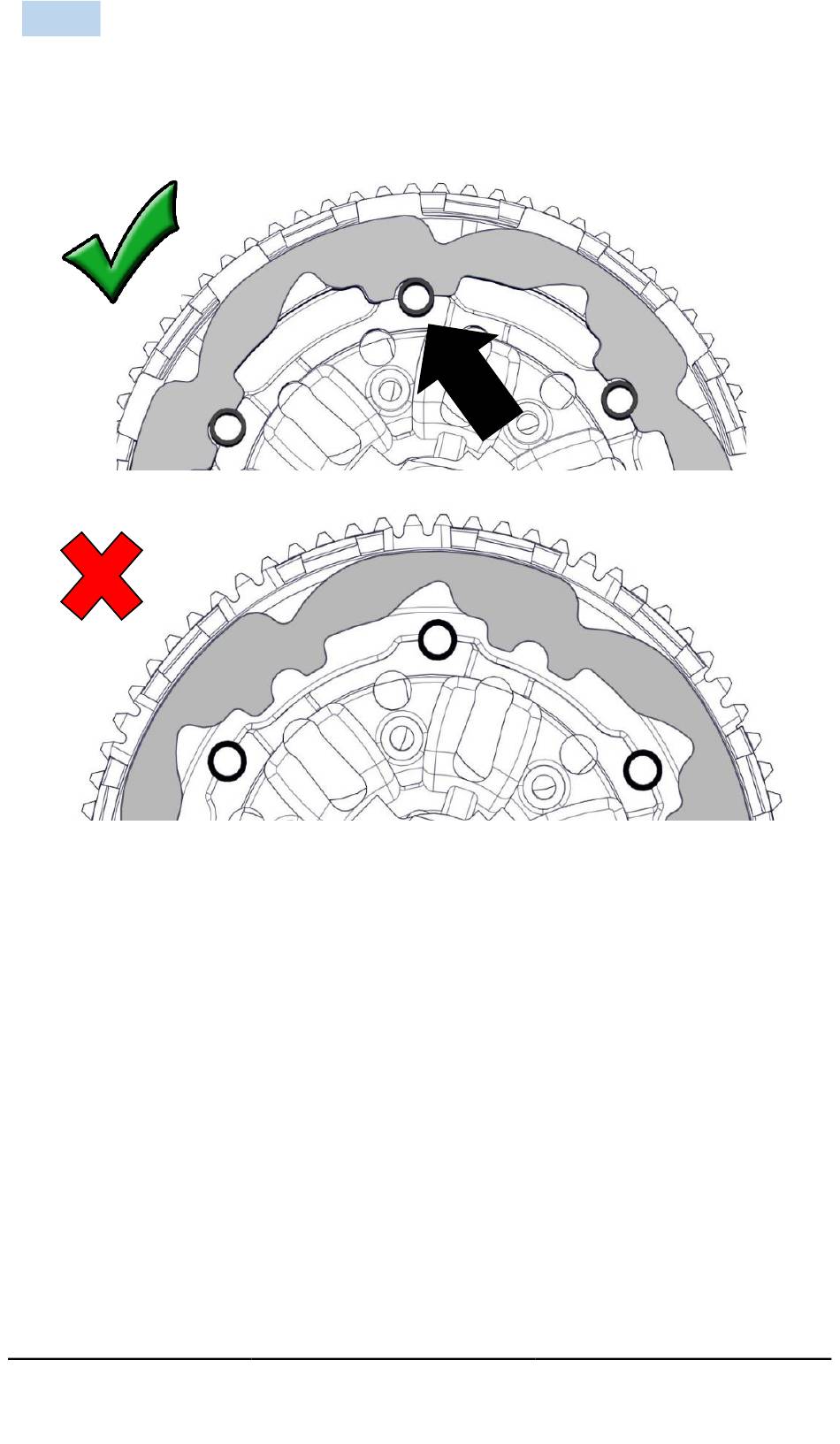

Note: ALL the steel drive plates must be aligned in the
drive pins notches or damage may occur. The plates will
not move when installed correctly.
9. On top of the steel drive plate, install a Rekluse fiction
disk.
10. Continue alternating the steel drive plates with the
friction disks for the entire Rekluse clutch pack. There
will be a total of 8 steel drive plates and 7 frictions
disks. See the following picture for reference.
11. Install the EXP disk on top of the last steel drive plate.
Make sure the EXP disk is seated in the main basket
slots along with the clutch pack.
Doc ID: 191-7913A
Doc Rev: 082018
Pg. 13
