IM-EN-PR23 v. 2.00
Instruction Manual
Vaisala K-PATENTS® Process Refractometer
PR-23

Advertisement

Table of Contents
loading

Related Manuals for Vaisala K-PATENTS PR-23 Series

Summary of Contents for Vaisala K-PATENTS PR-23 Series

  • Page 1 IM-EN-PR23 v. 2.00 Instruction Manual Vaisala K-PATENTS® Process Refractometer PR-23...
  • Page 3 THE PASSWORD FOR PR-23 IS 7 8 4 5 1 2 This product manual is delivered to the end user with a Vaisala K-PATENTS® product. Informa- tion in this manual is subject to change without notice. When the manual is changed, a revised copy is published at http://www.kpatents.com/.

  • Page 5: Table Of Contents

    Table of contents Introduction ............1 PR-23 refractometer models .
  • Page 6 5.4.5 Temperature measurement ........5.4.6 Sensor head humidity ........Sensor verification .
  • Page 7 8.1.12 Output signal error during ..... . 70 NORMAL OPERATION Measurement ..........71 8.2.1 Message .
  • Page 8 9.6.1 PR-23-GP sensor model code ....... . . 9.6.2 PR-23-GP specifications .
  • Page 9 10.5.3 Refractometer system with flame proof enclosure ....154 10.5.4 Wiring ........... . 158 10.5.5 Specifications .
  • Page 10 PR-23 instruction manual 13.1.1 Handling the R.I. liquids ........13.2 Verification procedure .

  • Page 11: Introduction

    1 Introduction 1 Introduction The PR-23 inline refractometer is an instrument for measuring liquid concentration in the process line. The measurement is based on the refraction of light in the process medium, an accurate and safe way of measuring liquid concentration. The inline refractometer sensor (in Figure 1.1) measures the refractive index n the temperature of the process medium.

  • Page 12: Principle Of Measurement

    PR-23 instruction manual 1.2 Principle of measurement The refractometer sensor determines the refractive index n of the process solution. It measures the critical angle of refraction using a yellow LED light source with the same wavelength (580 nm) as the sodium D line (hence n ).

  • Page 13: General Safety Considerations

    1 Introduction The position of the shadow edge is measured digitally using a CCD element (Fig- ure 1.4) and is converted to a refractive index value n by a processor inside the sensor. This value is then transmitted together with the process temperature via an interconnecting cable to the Indicating transmitter for further processing, display and transmission.

  • Page 14: Disposal

    PR-23 instruction manual 1.4 Disposal When wishing to dispose of an obsolete instrument or any parts of an instrument, please observe local and national regulations and re- quirements for the disposal of electrical and electronic equipment. An aluminium or stainless steel sensor housing can be recycled with other metallic waste of the same type.

  • Page 15: Inline Refractometer Sensor

    2 Inline refractometer sensor 2 Inline refractometer sensor 2.1 Sensor description Figure 2.1 below shows a cutaway picture of a PR-23 inline refractometer sensor. The measurement prism (A) is flush mounted to the surface of the probe tip. The prism (A) and all the other optical components are fixed to the solid core module (C), which is springloaded (D) against the prism gasket (B).

  • Page 16: Mounting The Sensor

    PR-23 instruction manual 2.2 Mounting the sensor The sensor mounting location should be chosen with care to ensure reliable read- ings from the process. Some basic rules, described in this section, apply to all sensor models. The model specific instructions can be found in Chapter 9, “Sensor specifica- tions”.

  • Page 17: Mounting Guide

    2 Inline refractometer sensor 2.2.2 PR-23 mounting guide...

  • Page 18: Check List For Pipe Mounting

    PR-23 instruction manual 2.2.3 Check list for pipe mounting Most PR-23 refractometer models are mounted in a pipe. The recommended mini- mum flow velocity of 1.5 m/s (5 ft/s). The diameter and form of the pipe and the process temperature all affect the measurement and need to be taken into account. 1.

  • Page 19: Indicating Transmitter Dtr

    3 Indicating transmitter DTR 3 Indicating transmitter DTR 3.1 Indicating transmitter description The Indicating transmitter DTR is a specialized computer designed to process data received from one or two sensors. The Indicating transmitter enclosure (Figure 3.1) contains a front panel with a backlit Liquid Crystal Display (LCD) and a keyboard. The front panel swings open to give access for connections and service.

  • Page 20: Mounting Indicating Transmitter

    PR-23 instruction manual 3.2 Mounting Indicating transmitter The Indicating transmitter is mounted indoors, it should preferably be located in an easily accessible, well lit and dry area. Avoid vibration. Take interconnecting cable length into consideration when choosing the mounting location. The enclosure is mounted vertically on an upright surface (wall) using four mounting feet, see Figure 3.3.

  • Page 21: Connecting Sensor

    3 Indicating transmitter DTR The junction box enables the use of customer’s own cable as long as it meets IEC 61158-2 type A standard requirements, see Section 10.3.2, “Interconnecting cable specifications”. 3.3.2 Connecting sensor Important: Sensor connector may not be connected or disconnected when the cir- cuits are energized.

  • Page 22: Connecting The Indicating Transmitter

    PR-23 instruction manual 3.3.3 Connecting the Indicating transmitter All the electrical terminals of the Indicating transmitter are behind the Front panel. To access them, first open the enclosure cover. Then loosen the front panel screw (Figure 3.5) and swing open the Front panel. All terminals are now accessible. POWER INDICATOR LIGHT...
  • Page 23 3 Indicating transmitter DTR completely turn the power off, use the external power switch. The external power switch shall be installed in accordance with the local installation requirements. Figure 3.7 Motherboard of the Indicating transmitter for AC power POWER Figure 3.8 Motherboard of the Indicating transmitter for 24V DC power...

  • Page 24: Power Terminals For Ac Power

    PR-23 instruction manual Description of the terminals on the H1 interface card PR-10701 and on the Transmit- ter motherboard PR-10600 (Figure 3.7): On H1 A 1 2 3 Connection for Sensor A, signal wires (1, 2), cable shield (3). B 1 2 3 Connection for Sensor B, signal wires (1, 2), cable shield (3).
  • Page 25 3 Indicating transmitter DTR reset button, the display will black out for a few seconds. The instrument will be back to full operation within 30 seconds. Reset button Figure 3.9 Location of the reset button...
  • Page 26 PR-23 instruction manual...

  • Page 27: Prism Wash Systems

    4 Prism wash systems 4 Prism wash systems 4.1 Prism coating Deposit build-up on the prism surface disturbs the measurement. Look out for an abnormally high concentration reading or an upward concentration (CONC) drift. In most applications the prism will keep clean due to the self-cleaning effect. If coating occurs, check the following: –...

  • Page 28: Recommended Wash Pressures And Times

    PR-23 instruction manual 4.2.1 Recommended wash pressures and times The recommended wash pressures and times are given in the tables below. Wash medium parameters for integral wash nozzles in PR-23-AP/GP Minimum above Maximum above Wash Recovery Interval process pressure process pressure time Steam (SN) 2 bar (30 psi)
  • Page 29 4 Prism wash systems Figure 4.1 A prism wash system for steam (non-sanitary)
  • Page 30 PR-23 instruction manual Figure 4.2 A sanitary prism wash system for steam...
  • Page 31 4 Prism wash systems In case of excessive pressure in steam systems: If the steam pressure exceeds to max- imum pressure differential, a pressure reducing valve PR-3341-J needs to be installed to reduce the steam pressure to optimal design. Figure 4.3 Pressure reducing valve PR-3341-J Note the orientation of the strainer.
  • Page 32 PR-23 instruction manual Figure 4.5 Wiring for a prism wash system for steam...
  • Page 33 4 Prism wash systems Figure 4.6 A prism wash system for high pressure water (non-sanitary)
  • Page 34 PR-23 instruction manual Figure 4.7 A sanitary prism wash system for high pressure water...
  • Page 35 4 Prism wash systems Figure 4.8 Wiring for a prism wash system for high pressure water...

  • Page 36: Prism Wash Nozzles

    PR-23 instruction manual 4.2.3 Prism wash nozzles When selecting a wash nozzle for a compact refractometer, take into account both the wash medium and the flowcell model: flowcells with larger pipe diameters need longer wash nozzles. Figure 4.9 below shows a wash nozzle for a flowcell and gives the measurements and part numbers for each nozzle type.
  • Page 37 4 Prism wash systems Figure 4.10 Process connection of a wash nozzle in a flow cell PR-23-AP PR-23-GP Steam nozzle PR-9321 PR-9324 Water nozzle PR-9320 PR-9323 Pressurized water nozzle PR-9322 PR-9325 Table 4.1 Prism wash nozzle selection...
  • Page 38 PR-23 instruction manual drawing updated to current design 08.04.14 TL AHä Date Rev. by Appr. Mark Rev. Leakage port detail, welding recommendation added 25.04.14 TL AHä K-Patents recommends to weld miniclamp directly to nozzle pipe Leakage port DETAIL A SCALE 2 : 5 Description Material Supplied by...
  • Page 39 4 Prism wash systems Figure 4.12 Mounting of the wash nozzle for Process refractometer PR-23-GP...
  • Page 40 PR-23 instruction manual...

  • Page 41: Startup And Use

    5 Startup and use 5 Startup and use 5.1 Startup 5.1.1 Initial check 1. Check the wiring, Section 3.3, “Electrical connections”. 2. Connect the power. The Power indicator light (Figure 3.5) and the screen should light up within a few seconds. 3.

  • Page 42: Calibration Check

    PR-23 instruction manual 6. For a connected sensor, the diagnostic message at start-up should be NORMAL OP- or, if the process pipe is empty, . Otherwise, see Section 8.4, ERATION NO SAMPLE “Diagnostic messages table”. 7. The TEMP value should show the current process temperature. 8.

  • Page 43: Keyboard Functions

    5 Startup and use 5.2.1 Keyboard functions Number keys: The 10 number keys, minus sign, and decimal point are used to enter numerical parameters. They are also used for menu selections. ENTER key: The ENTER key is used to implement the selected (highlighted) menu command or to accept an entered value.
  • Page 44 PR-23 instruction manual Figure 5.3 Display setup menu Main display format: As you can see in Figure 5.1, there are four different Main dis- play formats: the dual sensor format shows information on both sensors while the three different single sensor formats show selected information on one sensor at a time.

  • Page 45: Viewing System Information

    5 Startup and use the DTR. The default language is English and it is always available. The order and number of the languages in the language menu varies depending on what languages are loaded into the DTR. Language change through this menu is immediate. 5.3 Viewing system information selection from the Main menu (Figure 5.2) opens a path to complete DESCRIPTION...

  • Page 46: Viewing Sensor Status

    PR-23 instruction manual 5.4 Viewing sensor status Select at the Main menu. SENSOR STATUS 5.4.1 Optical image There are two different image detection algorithms in the PR-23. The original image detection algorithm has been complemented with an advanced IDS (Image Detection Stabilization) algorithm which compensates for some unwanted noise in the image.

  • Page 47: Optical Image With Vd

    5 Startup and use Empty pipe Normal conditions Figure 5.8 Typical optical images with IDS Figure 5.9 A slope graph with IDS It should be noted that the "empty" optical image may have vertical left and/or right edge close to the edge of the image. In the example, only the right edge is visible. 5.4.3 Optical image with VD A PR-23-GP can be ordered with option -VD, Vertical Borderline Image Detection.

  • Page 48: Diagnostic Values

    PR-23 instruction manual 5.4.4 Diagnostic values The values at the left of the graph are used for diagnostic purposes: – is the final concentration value including Field calibration adjustment, see CONC Figure 6.12. – , see Section 5.4.5. TEMP – gives the position of the shadow edge on CCD in %.

  • Page 49: Sensor Verification

    5 Startup and use 5.5 Sensor verification A company maintaining quality system according to ISO 9000 quality standards must have defined procedures for controlling and calibrating its measuring equipment. Such procedures are needed to demonstrate the conformance of the final product to specified requirements.
  • Page 50 PR-23 instruction manual...

  • Page 51: Configuration And Calibration

    6 Configuration and calibration 6 Configuration and calibration All changes of configuration and calibration are made through the Calibration menu selected from the Main menu by 5 CALIBRATION Password: It may be necessary to enter a password before proceeding to the Calibra- tion menu.

  • Page 52: Linear Damping

    PR-23 instruction manual 6.1.2 Linear damping If the process has fast step changes, linear (fast) damping gives shorter settling time. In the linear damping (fast damping), the output is the running average of the signal during the damping time. After a step change the signal rises linearly and reaches the final value after the damping time.

  • Page 53: External Hold

    6 Configuration and calibration 0.5 /s 0.2 /s 0.05 /s 90 100 110 120 Time [s] Figure 6.3 Slew rate damping 1. By using an external hold switch (see Section 6.3.2) 2. During prism wash (see Section 6.5.2) 3. For a preprogrammed time when there is an intermittent loss of sample on the prism (due to voids in the process) When the measurement result is in hold, the displayed concentration value and mA output do not change.

  • Page 54: Tolerance Time

    PR-23 instruction manual 6.2.3 Tolerance time The tolerance time setting can be used in processes where there are intermittent breaks in the measurement due to non-representative sample on the prism. This typ- ically occurs when there are large voids in the process liquid. If the optical image can be interpreted, the tolerance time setting does not have any effect.

  • Page 55: Hold Source Interactions

    6 Configuration and calibration defined tolerance time (see Section 6.2.3 for tolerance time). By default the QF thres- hold value is -500. 6.2.5 Hold source interactions There are three different reasons why the measurement signal may be in hold. All three result in the same behaviour, but they also interact with each other.

  • Page 56: Hold Functions With

    PR-23 instruction manual 6.2.7 Hold functions with DD-23 The Digital Divert Control System DD-23 uses the displayed concentration value in its decision logic. Due to this, the external hold functionality must not be used with a DD-23, as it could potentially render the system unsafe by freezing the measurement result.
  • Page 57 6 Configuration and calibration Figure 6.6 Relay menu for Relay 1 Closed contact if there is no equipment malfunction. See INSTRUMENT OK also Section 8.4 on page 74. Used as alarm relay, closing contact if source value is be- LOW LIMIT low set limit.

  • Page 58: Configuring Input Switches

    PR-23 instruction manual Figure 6.7 The manual set display for relays 6.3.2 Configuring input switches For the electrical properties of the four input switches, see Section 3.3. To see which switches are closed, check the Description menu, see Section 5.3. To configure the switches, follow the instructions below: 1.

  • Page 59: Configuring Ma Outputs

    6 Configuration and calibration Figure 6.9 Arrival to Switch 1’s sensor selection menu, sensor A selected process stops (as indicated by contact closure).The wash is repeated when the process restarts (if the stop lasts over 60 seconds). The signal is on hold between washes.When used with an external independent timer, contact closure holds the output signal.
  • Page 60 PR-23 instruction manual – First select in the Main menu and enter password if necessary. Then 5 CALIBRATION select in the Calibration menu. In the Outputs menu, select 2 OUTPUTS 5 mA OUT- PUTS – Select the mA output, 1 or 2, to get to the Output menu (Figure 6.10 below) where the output can be configured.

  • Page 61: Calibrating The Concentration Measurement

    6 Configuration and calibration NAMUR NE 43 uses the 3.8 to 20.5 mA signal range for measurement information, with ≥21 mA or ≤3.6 mA to indicate diagnostic failures (see Figure 6.11). With that information, it is easier to detect a failure condition on a refractometer, for example, it clearly tells you whether you have an empty pipe or a failed instrument.

  • Page 62: The Chemical Curve

    A chemical curve is specific to the given process medium, e.g. sucrose or sodium hy- droxide. The set of parameters is given by Vaisala and should not be altered, except in case of changing to another process medium. The parameters can be changed by...

  • Page 63: Field Calibration

    Field calibration form to your local Vaisala KPATENTS representa- tive. A computer analysis of the data will be made at Vaisala and optimal calibration parameters will be sent to be entered in the Indicating transmitter DTR. For a complete report, 10–15 valid data points (see below) are needed. A data point is of use for calibration only when the diagnostic message is .

  • Page 64: Entering Field Calibration Parameters

    – outside light reaching the prism Thus calibration using the process liquid should always be made inline. 6.4.4 Entering field calibration parameters The field calibration parameters supplied by Vaisala are entered by selecting 5 CALI- from the Main menu, followed by first BRATION 1 CHEMICAL &...

  • Page 65: Wash Cycle

    6 Configuration and calibration 6.5.1 Wash cycle The wash logic is shown in Figure 6.15 as a flow diagram. The automatic prism wash cycle (Figure 6.14) consists of three phases: precondition, wash and recovery. The op- tional preconditioning function is used to e.g. blow out the condensate before wash- ing.
  • Page 66 PR-23 instruction manual Preventing automatic wash: The preconditioning and wash relays are never activated by the automatic wash con- trol: – Under the diagnostic message (see Section 8.2.6) as this indicates a NO SAMPLE clean prism in an empty process line. The diagnostic message is WASH STOP/NO SAMPLE –...
  • Page 67 6 Configuration and calibration NOTES 1. Remote wash is triggered at The other the closing of the switch. If sensor the switch is held closed, washing? only one wash cycle is carried out. 2. The wash is inhibited if there is no sample, no sensor or the sensor cannot MANUAL measure correctly.
  • Page 68 PR-23 instruction manual Precondition enabled? Precondition 1 s wait Start washing Wash auto-cut enabled? nD < nD limit? Wash time reached? Wash time reached? Stop washing Recovery Figure 6.16 Wash cycle...

  • Page 69: Setting Prism Wash Parameters

    6 Configuration and calibration 6.5.2 Setting prism wash parameters To set the prism wash parameters for a given sensor, first select the sensor, then select from the Main menu, and then . This menu contains the 5 CALIBRATION 4 PRISM WASH alternatives (factory settings are given in parentheses): 0–30 s (0 s) PRECONDITION TIME...
  • Page 70 PR-23 instruction manual To set a low temperature limit, choose and enter the temper- 8 TEMP LIMIT VALUE °C ature (in °C!) where the limit should be. The empty pipe check prevents washing if message is , i.e. there’s no NO SAMPLE process liquid in the pipe.

  • Page 71: Regular Maintenance

    Important: In 3-A certified sensors, prism gasket replacement and other repairs ® must be done by authorized Vaisala K-PATENTS service centers only. If gaskets of 3-A certified sensors are replaced in the field, the certification is no more valid.
  • Page 72 PR-23 instruction manual...

  • Page 73: Troubleshooting

    8 Troubleshooting 8 Troubleshooting 8.1 Hardware To troubleshoot refractometer hardware problems, it is often important to localize the different cards inside the DTR. The Diagnostic LEDs on the cards help solve the problems and give an indication on whether a connection is good. Warning! Hazardous voltage, contact may cause electric shock or burn.
  • Page 74 PR-23 instruction manual Figure 8.2 Motherboard PR-10600 and H1 interface card PR-10701 in detail.

  • Page 75: Blank Display

    8 Troubleshooting 8.1.1 Blank display Is Power indicator light on? Processor See figure on next page to Power supply card LEDs troubleshoot power supply. problem blinking? Processor card PR-10500 or Front panel bad. Processor Processor card card LEDs PR-10500 bad. blinking? Contrast and backlight are reset by pressing .
  • Page 76 PR-23 instruction manual Important safety considerations +24 V Always switch off the mains before Power supply OK disconnecting or reconnecting cables, modules, etc. Beware of the high voltage terminals 34 and 35 Mains Have it fixed Measuring instructions Use a DMM (Digital Multimeter) to measure the voltage Measure the +24 V from terminals Disconnect +24 V from...

  • Page 77: Diagnostic Leds

    8 Troubleshooting 8.1.2 Diagnostic LEDs Figure 8.1 and Figure 8.2 assist to localize the diagnostic LEDs. Status Indication Front panel green LED DTR power is on; 8.1.1 Processor card PR-10500 is active. Transmitter processor card PR-10500 2 yellow LEDs blinking Processor card ok. Transmitter motherboard PR-10600 yellow LED (D17) blinking Motherboard processor working.

  • Page 78: Display Unreadable

    PR-23 instruction manual Transmitter processor card POWER DISPLAY 24 V/3 V KEYBOARD 3 V DC 24 V DC Power supply module DC/DC Relay 1 Relay 2 mA outputs Transmitter motherboard H1 interface card Figure 8.5 Diagnostic LED functions 8.1.3 Display unreadable If the display is unreadable because of extreme display backlight and contrast settings or wrong display language, you can perform a display reset.

  • Page 79: Message No Sensor

    8 Troubleshooting 8.1.4 Message NO SENSOR Cause: The current in the cable to this sensor is below 20 mA. Normally this means that there’s no sensor connected to the cable or that there’s no cable to the DTR. If this message comes up while a sensor properly is connected, the most likely cause of this message is a fault in the sensor.

  • Page 80: Message

    PR-23 instruction manual 8.1.7 Message HIGH SENSOR HUMIDITY Tells that humidity measured at the Sensor processor card exceeds 60 % relative hu- midity. The reason may be moisture leaking in through prism seal or the cover being open. Also, check and, if necessary, replace prism seal. 8.1.8 Message HIGH SENSOR TEMP The temperature on the Sensor processor card exceeds 65 °C (150 °F).

  • Page 81: Measurement

    8 Troubleshooting 8.2 Measurement 8.2.1 Message OUTSIDE LIGHT ERROR Cause: The measurement is not possible because too much outside light reaches the camera. Action: Identify the light source (for example sun shining into an open tank or a translucent pipe) and block the light from getting to the prism at the sensor tip. 8.2.2 Message NO OPTICAL IMAGE The optical image can be seen from selecting...

  • Page 82: Message Outside Light To Prism

    PR-23 instruction manual 8.2.4 Message OUTSIDE LIGHT TO PRISM Cause: Some light from the outside reaches the sensor and may disturb the measure- ment. Action: Identify the light source (for example sun shining into an open tank or a translucent pipe) and block the light from getting to the prism at the sensor tip. 8.2.5 Message LOW IMAGE QUALITY Cause: The most likely cause for this message is scaling on the prism.

  • Page 83: Wash

    8 Troubleshooting 8.3 Wash 8.3.1 Message EXTERNAL HOLD The concentration measurement is on HOLD due to an external switch closure. For explanation, see Section 6.3.2, “Configuring input switches”. 8.3.2 Messages PRECONDITIONING WASH RECOVERING – : An optional preconditioning relay is closed, see Section 6.5 PRECONDITIONING “Configuring prism wash”.

  • Page 84: Diagnostic Messages Table

    PR-23 instruction manual 8.4 Diagnostic messages table Important: The messages are listed in descending order of priority. Example: If both are activated, only NO OPTICAL IMAGE TEMP MEASUREMENT FAULT NO OPTICAL will be shown. The wash related messages have priority only during the wash IMAGE cycle (preconditioning–wash–recovery).

  • Page 85: Sensor Specifications

    9 Sensor specifications 9 Sensor specifications Note: For the specifications of the PR-23-SD sensor for Safe-Drive™ system, see Sec- tions 11.2 and 10.4. Figure 9.1 Sensor nameplates 9.1 Sensor compatibility Electrically: All the PR-23 refractometer sensors are interchangeable. The PR-23 sensors are not interchangeable with the PR-01 and PR-03 range sensors.

  • Page 86: Sanitary Process Refractometer Pr-23-Ac

    PR-23 instruction manual The refractometer models PR-23-M/MS and PR-23-W for aggressive solutions and ultra-pure fine chemicals can be equipped with a sapphire prism with a refractive in- dex range 1.2600–1.4600, Figure 9.3. M74/W74 M62/W62 1.25 1.30 1.35 1.40 1.45 1.50 1.55 Figure 9.3 PR-23-M/MS/W rangeability with a sapphire prism (74) and with a standard prism (62)

  • Page 87: Pr-23-Ac Sensor Model Code

    9 Sensor specifications 9.3.1 PR-23-AC sensor model code SANITARY COMPACT REFRACTOMETER for pipelines Model and description Model PR-23 = Refractometer PR-23 Sensor model -A = 3-A Sanitary Standard 46-03 certified Sensor type C = Compact type for pipeline installations Refractive index range limits -62 = R.I.

  • Page 88: Pr-23-Ac Mounting Hardware Model Code

    PR-23 instruction manual 9.3.2 PR-23-AC mounting hardware model code Elbow flow cells for PR-23-AC-62-HSS sensor Model and description Model AFC = Elbow flow cell Sensor connection -H = Sanitary 3A-clamp, 2½ inch Material of construction SS = AISI 316 L Process connection -H = Sanitary 3A-clamp Pipe section diameter...
  • Page 89 9 Sensor specifications EHEDG -EH = EHEDG Type EL Class I Certified Model Polishing option -EP = Electropolished process wetted parts (RA 0.38µm, 15 µ inch) Elbow flow cells with prism wash nozzle for PR-23-AC-63-HSS Model and description Model AFC = Elbow flow cell Sensor connection -H = Sanitary 3A-clamp, 2½...
  • Page 90 PR-23 instruction manual Mounting hardware for PR-23-AC-62-HSS sensor Model and description Model MFC = Mini Flow Cell Sensor connection -H = Sanitary 3A-clamp, 2½ inch Material of construction SS = AISI 316 L Process connection -H = Sanitary 3A-clamp Pipe section diameter 05 = 15 mm (½...
  • Page 91 9 Sensor specifications Side Flow Cells, connection Sanitary 3A-Clamp 2½ inch Model and description Model SFC = Side Flow Cell (A) Sensor connection -HH = Sanitary 3A-clamp, 2½ inch Material of construction SS = AISI 316 L Process connection -H = Sanitary 3A-clamp Pipe section diameter 10 = 25 mm (1 inch) 15 = 40 mm (1½...

  • Page 92: Pr-23-Ac Specifications

    Built-in Pt-1000 Temperature compensation: Automatic, digital compensation Instrument verification: With certified refractive index liquids and Vaisala documented procedure Ambient temperature: Sensor: max. 45 °C (113 °F), min. -20 °C (-4 °F) Indicating transmitter: max. 50 °C (122 °F), min. 0 °C (32 °F)

  • Page 93: Pr-23-Ac Parts List

    9 Sensor specifications 9.3.4 PR-23-AC parts list Item Pcs. Part No. Description PR-9205 2.5” Sanitary ferrule PR-9201 2.5” Sanitary clamp PR-9202 2.5” Sanitary gasket EPDM PR-9203 2.5” Sanitary gasket NBR PR-9204 2.5” Sanitary gasket PTFE (Teflon®) PR-10001 PR-23 H head (3A sanitary clamp connection) PR-10021 PR-23 E head (Varivent®connection) PR-10048...

  • Page 94: Pr-23-Ac Mounting Specifics

    2. Efficient drainage when the pipe is emptied. For pipe diameters of 3" or above, a ferrule is welded directly to the pipe wall, Figure 9.4 (a ferrule, length 21.5 mm, is delivered with standard sensor delivery from Vaisala). Figure 9.4 Mounting with sanitary ferrule Pipe diameter 3"...
  • Page 95 9 Sensor specifications Rev. Date Rev. by Appr. Mark Drawing updated 29.8.06 SECTION A-A SCALE 1 : 2 AFC-HSS-H10/H15-SI AFC-HSS-H15-RI Flow cell type AFC-H10-SI 22.6 [0.890] 22.6 [0.890] 25.6 [1.008] 50.8 [2] AFC-H15-RI 22.6 [0.890] 35.6 [1.402] 38.6 [1.520] 70.3 [2.768] AFC-H15-SI 35.6 [1.402] 35.6 [1.402] 38.6 [1.520] 70.3 [2.768] Ite m No.
  • Page 96 PR-23 instruction manual SECTION A-A SCALE 1 : 2 Flow cell type 48.6 51.6 89.0 AFC-HSS-H20-SI 48.6 48.6 51.6 89.0 AFC-HSS-H20-RI 35.6 60.3 64.1 108.0 AFC-HSS-H25-SI 60.3 Figure 9.7 Flowcell AFC-HSS- H20 for pipe diameter 2" (50 mm) and H25 for pipe diameter 2 1/2" (65 mm) SECTION A-A SCALE 1 : 2 Flow cell type...

  • Page 97: Pr-23-Ac I-Line Fitting

    PRE.01 Appr. 07.08.2013 AHä Vaisala offers certain PR-23-AC configurations which have been certified to fulfill the sanitary requirements published by EHEDG (European Hygienic Engineering & De- sign Group) organization. During this certification the hygienic characteristics of both the refractometer and the process connection were evaluated against the applicable requirements.

  • Page 98: Sanitary Probe Refractometer Pr-23-Ap

    Vaisala offers a 3A Sanitary Standard Accepted repair and maintenance package in which all wetted parts, prism, gaskets and dryer are replaced. Note that this repair service can be completed only by a 3A authorized service center (Vaisala factory or regional headquarters).
  • Page 99 9 Sensor specifications Electrical classification -GP = General purpose -AX = ATEX and IECEx certified Ex II 3G, Ex nA IIC T4 Gc (up to zone 2) (T -20 ... +65°C) -FM = FM certified Class I, Div.2, Groups A, B, C, D T6 (T -20 ...

  • Page 100: Pr-23-Ap Mounting Hardware Model Code

    PR-23 instruction manual -AX = ATEX and IECEx certified Ex II 3G, Ex nA IIC T4 Gc (up to zone 2) (T -20...+65°C) -IA = Ex and IECEx certified Ex II 1G, Ex ia IIC T4 Ga (up to zone 0) (T -20...+65°C) (A) -IF = IF certified to US and Canadian standards Class I, Div.1, Groups A, B, C, D T4 (T -20 ...
  • Page 101 9 Sensor specifications Model and description Model WNA = Wash nozzle adapter Sensor type -T = Sanitary 3A-clamp, 2½ inch, insertion lenght 170 mm -ZP = Sanitary I-line male (14 WI) 2½ inch, insertion length 178 mm Material of construction SS = AISI 316 L Process connection -H = For sanitary 3A-clamp, 2½...
  • Page 102 PR-23 instruction manual Aseptic Steam Valve for PR-23-AP-ISS Model and description Model ASV = Aseptic Steam Valve Sensor connection -H = Sanitary 3A-clamp, 2½ inch -E = Varivent® in-line access unit clamp DN65 Material of construction SS = AISI 316 L Option -ASI = Adapter and Bürkert 8695 Control Head, Process Valve Mounting -ASI...

  • Page 103: Pr-23-Ap Specifications

    Temperature compensation: Automatic, digital compensation Instrument verification: With certified refractive index liquids and Vaisala documented procedure Ambient temperature: Sensor: max. 45 °C (113 °F), min. -20 °C (-4 °F) Indicating transmitter: max. 50 °C (122 °F), min. 0 °C (32 °F)

  • Page 104: Pr-23-Ap Parts List

    PR-23 instruction manual 9.4.4 PR-23-AP parts list Item Pcs. Part No. Description PR-9205 2.5” sanitary ferrule VFMA-23-PSS MT4 DN25/1T APV tank bottom flange PR-9275 4” sanitary ferrule PR-9201 2.5” sanitary clamp PR-9271 4” sanitary clamp PR-9202 2.5” sanitary gasket EPDM PR-9203 2.5”...

  • Page 105: Pr-23-Ap Mounting Specifics

    9 Sensor specifications 9.4.5 PR-23-AP mounting specifics The Probe refractometer PR-23-AP is primarily designed for mounting in a tank wall. To ensure that the measurement is representative and that the prism stays clean, the probe should be installed close to a stirrer. Probe refractometer type PR-23-AP-T is connected to the process by a 2 1/2"...

  • Page 106: Pr-23-Ap I-Line Fitting

    Sensor wetted parts material is AISI 316L or Alloy C, gaskets EPDM. 9.4.7 Mounting specifics for EHEDG certified PR-23-AP configuration Vaisala offers certain PR-23-AP configurations which have been certified to fulfill the sanitary requirements published by EHEDG (European Hygienic Engineering & De- sign Group) organization.

  • Page 107: Sanitary Standard Compliance

    Vaisala offers a 3A Sanitary Standard Accepted repair and maintenance package in which all wetted parts, prism, gaskets and dryer are replaced. Note that this repair service can be completed by 3A authorized service center only (Vaisala factory or re- gional headquarters).
  • Page 108 PR-23 instruction manual Wafer flowcell model code MODEL AND DESCRIPTION MODEL WFC = Wafer flowcell Sensor connection -K = Sandvik L coupling 76.1 mm (insertion length 14 mm) Construction material -SS = AISI 316 L -HA = Alloy 20 -HC = Alloy C276 -NI = Nickel 200 -TI Titanium ASTM B248 -SU = AISI 904L (A)

  • Page 109: Pr-23-Gc Specifications

    Built-in Pt-1000 Temperature compensation: Automatic, digital compensation Instrument verification: With certified refractive index liquids and Vaisala documented procedure Ambient temperature: Sensor: max. 45 °C (113 °F), min. -20 °C (-4 °F) Indicating transmitter: max. 50 °C (122 °F), min. 0 °C (32 °F)

  • Page 110: Pr-23-Gc Parts List

    PR-23 instruction manual 9.5.3 PR-23-GC parts list Item Pcs. Part No. Description PR-9280 Sandvik ferrule 76.1 PR-9283 Sandvik 76.1 reducing ferrule PR-9282 Sandvik clamp FCLC-76.1 PR-9281 Sandvik O-ring FCLG-T-76.1 Teflon® PR-9291 Sandvik O-ring FCLG-V-76.1 Viton PR-9284 PR-23/33-GC head PR-10048 68x3 O-ring Alignment pin PR-10005-SC PR-23 base...

  • Page 111: Pr-23-Gc Mounting Specifics

    9 Sensor specifications 9.5.4 PR-23-GC mounting specifics The Compact refractometer is mounted either in a pipe elbow by a Sandvik coupling connection or in a straight pipe via a Wafer flow cell or a Pipe flow cell. Both flow cell mounting designs create optimum flow velocity on the measurement surface pro- viding a good self-cleaning effect.
  • Page 112 PR-23 instruction manual Figure 9.13 Mounting the sensor in a 2" pipe Figure 9.14 Mounting the sensor with a pfc flow cell...
  • Page 113 9 Sensor specifications Figure 9.15 Mounting the sensor with a wfc flow cell...
  • Page 114 PR-23 instruction manual Use gasket material appropriate to the process media Use PTFE Teflon tape for all threaded connections Figure 9.16 Mounting the Wafer flow cell and sensor in a vertical pipe...
  • Page 115 9 Sensor specifications Use gasket material appropriate to the process media Use PTFE Teflon tape for all threaded connections Figure 9.17 Mounting the Wafer flow cell and sensor in a horizontal pipe...

  • Page 116: Probe Process Refractometer Pr-23-Gp

    PR-23 instruction manual 9.6 Probe process refractometer PR-23-GP Probe process refractometer PR-23-GP is a general industry model for measuring liq- uid concentrations in various in-line applications, like chemicals, fibers, plastics, salts and sodium components. It is typically installed in large pipes and vessels. 9.6.1 PR-23-GP sensor model code MODEL AND DESCRIPTION MODEL...

  • Page 117: Pr-23-Gp Specifications

    Temperature compensation: Automatic, digital compensation Instrument verification: With certified refractive index liquids and Vaisala documented procedure Ambient temperature: Sensor: max. 45 °C (113 °F), min. -40 °C (-40 °F) Indicating transmitter: max. 50 °C (122 °F), min. 0 °C (32 °F)

  • Page 118: Pr-23-Gp Thermal Cover

    PR-23 instruction manual 9.6.3 PR-23-GP thermal cover The thermal cover prevents heat flow between process and ambient surroundings. It helps maintain the sensor tip and the prism surface at process temperature and may reduce prism coating. Use thermal cover when the temperature difference between the process and the ambient is more than 30°C or when the process temperature is over 60°C.

  • Page 119: Pr-23-Gp Parts List

    9 Sensor specifications 9.6.4 PR-23-GP parts list Item Pcs. Part No. Description PR-10009 PR-23-GP-L head PR-10010 PR-23-GP-D head Item Pcs. Part No. Description PR-10011 PR-23-GP-D-NC head PR-10103 Sensor processor card ANSI 3” 150 lbs flange Screw M3x6 DIN 912 A2 DIN 80 PN 25 flange PR-10300 Bus terminator card...

  • Page 120: Pr-23-Gp Mounting Specifics

    PR-23 instruction manual 9.6.5 PR-23-GP mounting specifics Model Model PFC-23-GP-ASS-Y-NC PFC-23-GP-ASS-Y-NC 190.5 [7.5] 190.5 [7.5] PFC-23-GP-DSS-Y-NC PFC-23-GP-DSS-Y-NC 200 [7.874] 200 [7.874] PFC-23-GP-JSS-Y-NC PFC-23-GP-JSS-Y-NC 185 [7.283] 185 [7.283] Customer’s pipe <2” Customer’s pipe <2” Centering hole Centering hole 0.787 0.787 20.0 20.0 Customer’s pipe <2”...
  • Page 121 9 Sensor specifications Customer’s pipe Customer’s pipe 0.787 0.787 Customer’s pipe Customer’s pipe Figure 9.21 PR-23-GP-LSS Y flowcell 25 [1] 25 [1] 125 [6.102] 125 [6.102] PFC-23-GP-LSS-D20-NC PFC-23-GP-LSS-D20-NC PFC-23-GP-LSS-J20-NC PFC-23-GP-LSS-J20-NC 51 [2] 51 [2] 155 [6.102] 155 [6.102] Figure 9.22 PR-23-GP-LSS flowcell...

  • Page 122: Process Refractometer Pr-23-Rp

    PR-23 instruction manual 9.7 Process refractometer PR-23-RP Process Refractometer PR-23-RP is a heavy-duty refinery model that is designed to support the unique requirements of the refining and petroleum industries. Typical applications are in accurate liquid concentration mesurements, e.g. acid in alkylation, glycol or amines in gas processing and multi-product (crude oil, fuel oil, diesel) in- terfaces in transfer operations.

  • Page 123: Pr-23-Rp Specifications

    Temperature compensation: Automatic, digital compensation Instrument verification: With certified refractive index liquids and Vaisala documented procedure Ambient temperature: Sensor: max. 45 °C (113 °F), min. -20 °C (-4 °F) Indicating transmitter: max. 50 °C (122 °F), min. 0 °C (32 °F)

  • Page 124: Pr-23-Rp Parts List

    PR-23 instruction manual 9.7.3 PR-23-RP parts list Item Pcs. Part No. Description PR-10043 PR-23-RP-SS head PR-10043-HC PR-23-RP-SS Hastelloy® C 276 Item Pcs. Part No. Description PR-10043-HA PR-23-RP-SS Alloy® 20 head PR-10103 Sensor processor card PR-10048 68x3 O-ring Screw M3x6 DIN 912 A2 Alignment pin PR-10300 Bus terminator card...

  • Page 125: Pr-23-Rp Head Parts List

    9 Sensor specifications REV. DESCRIPTION DATE APPR. 30.3.2012 Code changed, PR-numbers added 6.6.2012 9.7.4 PR-23-RP head parts list Torque 6Nm (4,4 lbs/ft) PR-10043 PR-10043-HC Item Pcs. Part No. Description Item Pcs. Part No. Description PR-10043-HA PR-23-RP head 2” ANSI 300 flange PR-23-RP head Hastelloy C PR-10049 O-ring 50x3 FPM...

  • Page 126: Pr-23-Rp Dimensions

    PR-23 instruction manual REV. DESCRIPTION DATE APPR. Wetted parts note clarified 26.5.2017 HC material name updated 26.10.2017 9.7.5 PR-23-RP dimensions AISI 316 Wetted parts Wetted parts material options SS = AISI 316L HA = Alloy 20 HC = Alloy C276 AISI 316L 2"...

  • Page 127: Pr-23-Rp Mounting Specifics

    9 Sensor specifications 9.7.6 PR-23-RP mounting specifics The Refractometer sensor is installed in the process, either directly by welding a mounting flange to 2 inch or larger pipes or vessels, or via a 1 inch, 2 inch or 3 inch cross flowcell.
  • Page 128 PR-23 instruction manual PR-23-RP mounting in CFC 1” line Item. Description Supplied by Pcs. Item. Description Supplied by Pcs. Sensor PR-23-RP-73-M20 K-Patents Bolt, washer and nut for 1”flange Customer CFC-RP-M20-M10-NC-PG/SN/WP K-Patents 1’’ flange gasket Customer 2”ANSI 300 Wash nozzle K-Patents 2’’...
  • Page 129 9 Sensor specifications PR-23-RP mounting in 2” line Item. Description Supplied by Pcs. Item. Description Supplied by Pcs. Sensor PR-23-RP-73-M20 K-Patents 2”flange gasket Customer CFC-23-RP-M20-M20-NC-PG/SN/WP K-Patents 2”ANSI 300 Welding neck flange Customer 2’’ ANSI 300 Wash nozzle K-Patents Bolt, washer and nut for 2”flange Customer 1’’...

  • Page 130: Pr-23-Rp Prism Wash System

    A prism wash system is available for the PR-23-RP. This requires the use of a CFC- RP-M20 flow-cell in combination with a 2” ANSI 300 CFC wash nozzle. Both of these components are available from Vaisala. All the further components specifically re- quired for the wash system installation, are obtained independently by the customer.

  • Page 131: Teflon Body Refractometer Pr-23-M/Ms

    9 Sensor specifications 9.8 Teflon body refractometer PR-23-M/MS Teflon body refractometer PR-23-M/MS is designed for use in chemically aggressive solutions and ultra-pure fine chemical processes. PR-23-M is an all-purpose model, PR-23-MS is designed especially for the semicon- ductor industry. The sensor has a built-in flowcell designed to keep all metal and other easily corroding parts from coming into contact with the process liquid.

  • Page 132: Pr-23-M Sensor Model Code

    PR-23 instruction manual 9.8.1 PR-23-M sensor model code MODEL AND DESCRIPTION MODEL PR-23 = Sensor PR-23 Sensor model -M = Aggressive medium adapter Refractive Index range limits 73 = n 1.320–1.530 (0–100 Brix) Sapphire prism 74 = n 1.260–1.470 Sapphire prism Electrical classification -GP = General purpose -AX = ATEX and IECEx certified Ex II 3 G, Ex nA IIC T4 Gc (up to Zone 2) (T...

  • Page 133: Pr-23-M Specifications

    Built-in Pt-1000 Temperature compensation: Automatic, digital compensation Instrument verification: With certified refractive index liquids and Vaisala documented procedure Ambient temperature: Sensor: max. 45 °C (113 °F), min. -20 °C (-4 °F) Indicating transmitter: max. 50 °C (122 °F), min. 0 °C (32 °F)

  • Page 134: Pr-23-M Parts List

    PR-23 instruction manual 9.8.3 PR-23-M parts list 28 29 Item Pcs. Part No. Description Item Pcs. Part No. Description Screw DIN 7991 M5x70 A4 PR-10036 PR-23 compact sensor CORE module PR-23-M endplate PR-9011 Thermal conductor PR-9129 PR-03/23-M protection cover PR-9010 Disc spring set Screw DIN 912 M4x10 A4 Disc spring...

  • Page 135: Pr-23-Ms Sensor Model Code

    9 Sensor specifications 9.8.4 PR-23-MS sensor model code MODEL AND DESCRIPTION MODEL PR-23 = Sensor PR-23 Sensor model -MS = Aggressive medium adapter, semiconductor industry Refractive Index range limits 73 = n 1.320–1.530 (0–100 Conc% b.w.) Sapphire prism 74 = n 1.260–1.470 Sapphire prism Electrical classification -GP = General purpose...

  • Page 136: Pr-23-Ms Specifications

    Built-in Pt-1000 Temperature compensation: Automatic, digital compensation Instrument verification: With certified refractive index liquids and Vaisala documented procedure Ambient temperature: Sensor: max. 45 °C (113 °F), min. -20 °C (-4 °F) Indicating transmitter: max. 50 °C (122 °F), min. 0 °C (32 °F)

  • Page 137: Pr-23-Ms Parts List

    9 Sensor specifications 9.8.6 PR-23-MS parts list 28 29 Item Pcs. Part No. Description Screw DIN 7991 M5x70 A4 PR-23-MS endplate PR-9129-EC PR-23-MS protection cover Item Pcs. Part No. Description Screw DIN 912 M4x10 A4 PR-9120 PR-03/23-M-PV-R05 flow cell (PVDF) PR-9010 Disc spring set PR-9121...

  • Page 138: Pr-23-M/Ms Mounting Specifics

    PR-23 instruction manual 9.8.7 PR-23-M/MS mounting specifics Teflon body refractometer PR-23-M/MS is connected to the process by a G1/2" female or a 1/2" NPT process connection, Figure 9.28 below. Important: Always install PR-23-M/MS with sensor support to prevent the sensor weight from pulling at the non-metallic piping.

  • Page 139: Saunders Body Refractometer Pr-23-W

    9 Sensor specifications 9.9 Saunders body refractometer PR-23-W Saunders body refractometer PR-23-W is a heavy-duty instrument designed for chem- ically aggressive liquids and ultra-pure fine chemicals in large-scale production and in large pipelines. The materials and design of the sensor are similar to the Teflon body refractometer PR-23-M, but the Saunders body makes it possible to fit this re- fractometer into 50, 80 or 100 mm (2", 3"...

  • Page 140: Pr-23-W Sensor Model Code

    PR-23 instruction manual 9.9.1 PR-23-W sensor model code MODEL AND DESCRIPTION MODEL PR-23 = Sensor PR-23 Sensor model -W = Aggressive medium Saunders body flowcell Refractive Index range limits 73 = n 1.320–1.530 Sapphire prism 74 = n 1.260–1.4700 Sapphire prism Sensor wetted parts material ®...

  • Page 141: Pr-23-W Specifications

    Built-in Pt-1000 Temperature compensation: Automatic, digital compensation Instrument verification: With certified refractive index liquids and Vaisala documented procedure Ambient temperature: Sensor: max. 45 °C (113 °F), min. -20 °C (-4 °F) Indicating transmitter: max. 50 °C (122 °F), min. 0 °C (32 °F)

  • Page 142: Pr-23-W Parts List

    PR-23 instruction manual 9.9.3 PR-23-W parts list Item Pcs. Part No. Description Saunders valve body PFA/ETFE lining ANSI 2”/DIN 50/JIS 50 Saunders valve body PFA/ETFE lining ANSI 3”/DIN 80/JIS 80 Saunders valve body PFA/ETFE lining ANSI 4”/DIN 100/JIS 100 Facing for 2” valve body Facing for 3”...

  • Page 143: Pr-23-W Mounting Specifics

    9 Sensor specifications 9.9.4 PR-23-W mounting specifics PR-23-W Saunders valve body flowcell can be mounted either vertically or horizon- tally. Special sensor support is not needed as the valve body (piping) supports the sensor. Either way sensor cover should always be horizontal to avoid sedimentation or gas/air pocket on the prism.

  • Page 144: Process Refractometers In Potentially Explosive Atmosphere

    The PR-23 refractometer series can be used in locations with potentially explosive atmosphere with following modifications, made by Vaisala Oyj. The refractometer sen- sor’s compliance with the Essential Health and Safety Requirements is assured by complying with standard EN 50 021:1999.
  • Page 145 9 Sensor specifications The ATEX/FM/CSA approved sensors PR-23-...-AX/FM/CS are identified by the sensor nameplate, see Figure 9.1. The Indicating transmitter is a standard DTR. The approvals are valid for sensors PR-23-AC, PR-23-AP, PR-23-GP, PR-23-M, PR-23-MS, PR-23-SD, PR-23-W and PR-23-RP. PR-23-AC/AP-...-AX nameplate -AX nameplate, all other models EX approval symbol...

  • Page 146: Installation

    All wiring of PR-23-...-FM systems must run in a conduit. Important: Tampering and replacement with other than original Vaisala K-PATENTS® components is not allowed because this may affect adversely the safe use of the system.
  • Page 147 9 Sensor specifications Safe sensor wiring according to WRG-367 (100-240 VAC) Safe sensor wiring according to WRG-350 (24 VDC) Figure 9.33 Safe sensor wiring...

  • Page 148: Intrinsically Safe Refractometers Pr-23

    E60079-11:2002. Note: Servicing of the intrinsically safe PR-23-...-IA/-IF refractometer is only allowed for trained service personnel of Vaisala and its representatives. Servicing must be done according to separate instructions defined by Vaisala and must be reported to Vaisala. 9.11.1 Equipment Intrinsically Safe Process Refractometer consists of: a modified refractometer sen- sor PR-23-...-IA/-IF, an Indicating transmitter STR with single sensor connectivity, and...
  • Page 149 9 Sensor specifications Figure 9.34 Refractometer system PR-23-...-IA/-IF with an STR 3-A approved intrinsically Other intrinsically safe -IA sensor safe -IA sensor 3-A approved intrinsically Other intrinsically safe -IF sensor safe -IF sensor Figure 9.35 Intrinsically safe sensor nameplates The intrinsically safe sensor PR-23-...-IA/-IF is identified by the nameplate, see Fig- ure 9.35.

  • Page 150: Intrinsically Safe Mounting

    If any of the system parts are affected by a sudden impact, power off immediately and have the system checked by trained Vaisala service personnel before it is used again. The electrical connections for PR-23-...-IA are described in Figure 9.38. The electrical...
  • Page 151 9 Sensor specifications Figure 9.38 Intrinsically safe wiring, PR-23-...-IA according to WRG-362...
  • Page 152 PR-23 instruction manual Figure 9.39 Intrinsically safe wiring, PR-23-...-IF with STR according to WRG-478...

  • Page 153: Isolator/Barriers

    9 Sensor specifications Notes: In the United States, installation must be in accordance with the applicable require- ments of ANSI/ISA RP12.6 and the national electrical code (ANSI/NFPA 70). In Canada installation must be in accordance with the applicable requirements of Cana- dian electrical code part I C22.2.1 section 18 and appendix F.
  • Page 154 PR-23 instruction manual ISOLATOR UNIT Power cable PR-8250-xxx 24VDC (max 100m) Cable Cable PR-8230-xxx PR-8260-xxx (max 100m) (max 100m) Figure 9.40 Isolator unit wiring...

  • Page 155: Indicating Transmitter Dtr Specifications

    Product code: DTR-M-GP-DC-DD S/N: T06802 S/N: T06816 Tag: Tag: 100-240 V AC, 50/60 Hz, 30 VA 24 V DC, 30 VA Made by VAISALA Oyj, Vantaa, Finland Made by VAISALA Oyj, Vantaa, Finland www.vaisala.com www.vaisala.com IP66 IP66 AC label DC label Figure 10.1 Indicating transmitter DTR serial number label...

  • Page 156: Transmitter Program Versions

    PR-23 instruction manual 10.1.1 Transmitter program versions The DTR program version can be updated over the Ethernet connection (see Chap- ter 12). Contact your nearest representative for more information on how to update your DTR program version. Program version 4.07: The DTR program version 4.07 is compatible with any DTR and any PR-23 sensor with program version 1.00 or higher.

  • Page 157: Model Code

    10 Indicating transmitter DTR specifications 10.2 Model code 10.2.1 Transmitter model code MODEL AND DESCRIPTION MODEL DTR = Indicating transmitter (connectivity for two sensors) STR = Indicating transmitter (connectivity for one -IA/-IF sensor) Cable connection -U = ½ inch NPT type conduit hubs for CSA certified Transmitter -M = M20x1.5 metric cable glands for general purpose Transmitter Electrical classification -GP = General purpose...

  • Page 158: Specifications

    PR-23 instruction manual 10.3 Specifications 10.3.1 Indicating transmitter specifications Display: 320x240 pixel graphical LCD with LED backlight Keypad: 18 membrane keys Current output: Two independent current sources, 4-20 mA, max. load 1000 Ohm, galvanic isolation 1500 VDC or AC (peak), hold function during prism wash Power: AC input 100-240 VAC, ±10%, 50/60 Hz/30 VA, optional 24 VDC, Overvoltage Category II, Pollution...

  • Page 159: Transmitter Parts List

    10 Indicating transmitter DTR specifications 10.4 Transmitter parts list Figure 10.3 Indicating transmitter DTR (STR) parts...
  • Page 160 PR-23 instruction manual...

  • Page 161: Flame Proof Dtr/Str Enclosures

    10 Indicating transmitter DTR specifications 10.5 Flame proof DTR/STR enclosures The flame proof enclosures embedding a DTR or a STR have aluminium enclosures with ATEX and IECEx options and with or without Isolator for hazardous Zone 1 and 2 installations. The Ex type junction box is intended for hazardous areas where flammable gases are present in the environment and can be ignited by an electrical spark or hot surfaces.

  • Page 162: Model Code

    PR-23 instruction manual 10.5.1 Model code Model and description Model DTR = Indicating transmitter (connectivity for two sensors) STR = Indicating transmitter (connectivity for one -IA/-IF sensor) Cable connection -R = ½" ISO 7/1 RC threads Electrical classification -B1 = Atex Ex d IIB+H2 T6 Gb, for -AX model T -25 ...

  • Page 163: Dimensions

    10 Indicating transmitter DTR specifications Description Date PRE.01 10.5.2 Dimensions bleed valve 7 pcs plugged ISO 7/1 R thread holes 15,24 9,76 14,02 DTR/STR-R-B3/B4-AL-A Description Figure 10.4 EJB enclosure dimensions DTR/STR-R-B3/B4-AL-D Drawing description General t Welding DTR/STR-R-B3/B4-AL-AC/DC-MX Mass Drawn Drawing 7pcs plugged ISO7/1 R thread holes Scale Material...

  • Page 164: Refractometer System With Flame Proof Enclosure

    PR-23 instruction manual 10.5.3 Refractometer system with flame proof enclosure Figure 10.6 DTR/STR-R-B1/B2-AL-AC/DC...
  • Page 165 10 Indicating transmitter DTR specifications Figure 10.7 STR-R-B3/B4-AL-AC/DC...
  • Page 166 PR-23 instruction manual Figure 10.8 DTR/STR-R-C1/C2-AL-AC/DC...
  • Page 167 10 Indicating transmitter DTR specifications Figure 10.9 STR-R-C3/C4-AL-AC/DC...

  • Page 168: Wiring

    PR-23 instruction manual 10.5.4 Wiring Phoenix Contact Power supply unit UNO - PS/1AC/24DC/60W - 2902992 Figure 10.10 EJB enclosure wiring without an isolator (DTR/STR-R-B1/B2-AL-AC)
  • Page 169 10 Indicating transmitter DTR specifications Phoenix Contact Power supply unit UNO - PS/1AC/24DC/60W - 2902992 MOXA UC-7110 Figure 10.11 EJB enclosure wiring with an isolator and fieldbus converter (STR-R-B3/B4-AL-AC-MX)
  • Page 170 PR-23 instruction manual Ground terminal Phoenix Contact Power supply unit UNO - PS/1AC/24DC/60W - 2902992 Figure 10.12 GUB enclosure wiring without an isolator (DTR/STR-R-C1/C2-AL-AC)
  • Page 171 10 Indicating transmitter DTR specifications Ground terminal Phoenix Contact Power supply unit UNO - PS/1AC/24DC/60W - 2902992 Figure 10.13 GUB enclosure wiring with an isolator (STR-R-C3/C4-AL-AC)

  • Page 172: Specifications

    PR-23 instruction manual 10.5.5 Specifications Specifications for DTR/STR in EJB or GUB type enclosure Electrical specifications EJB type enclosure with AC power source Nominal input voltage range 100 V AC ... 240 V AC Current consumption 1.3 A (100 V AC) 0.6 A (240 V AC) Nominal power consumption 60 W...
  • Page 173 10 Indicating transmitter DTR specifications IECEx EJB type enclosure Ex d IIB+H2 T6 Gb IP66/67 Ta -25 ... +45°C (without isolator) Ex d[ia Ga] IIB+H2 T6 Gb IP66/67 Ta-25 ... +45°C (with isolator) GUB type enclosure Ex d IIC T6 Gb IP66 Ta -25 ... +45°C (without isolator) Ex d[ia Ga] IIC T6 Gb IP66 Ta -25 ...
  • Page 174 PR-23 instruction manual...

  • Page 175: Safe-Drive

    11 Safe-Drive™ 11 Safe-Drive™ The Safe-Drive™ system is used for safe insertion and removal of a refractometer sen- sor while the process line is under full process flow and pressure. The Safe-Drive™ system is typically used in a continuous process with infrequent shutdowns and large pipe size, diameter 50 mm (2") or above, e.g.

  • Page 176: Specifications

    Temperature compensation: Automatic, digital compensation Instrument verification: With certified refractive index liquids and Vaisala documented procedure Ambient temperature: Sensor: max. 45 °C (113 °F), min. -20 °C (-4 °F); Indicating transmitter: max. 50 °C (122 °F), min. 0 °C (32 °F) SAFE-DRIVE™...

  • Page 177: Parts Lists

    11 Safe-Drive™ 11.3 Parts lists 11.3.1 PR-23-SD sensor 12 13 16 17 23 22 Item Pcs. Part No. Description Item Pcs. Part No. Description PR-10015 PR-23-SD head Screw M5x10 DIN 912 A2 PR-10101 Sensor processor card Safe-Drive™ flange Screw M3x5 DIN 7380 A4 PR-10300 Bus terminator card PR-10048...

  • Page 178: Safe-Drive™ Isolation Valve

    PR-23 instruction manual 11.3.2 Safe-Drive™ Isolation valve Item Pcs. Part No. Description Item Pcs. Part No. Description PR-11000 SDI flange and nozzle M12 nut A4 weld assembly SAF 2205 SDI isolation valve handle PR-11001 DN 40 ball valve assembly: parts 2, 6, 7 Safety lock screw DN 40 ball valve Safety lock...

  • Page 179: Safe-Drive™ Steam Wash System Parts

    11 Safe-Drive™ 11.3.3 Safe-Drive™ steam wash system parts...

  • Page 180: Safe-Drive™ Retractor

    By special order the Safe-Drive™ Isolation valve can also be welded to a suitable length of pipe at the Vaisala factory to be part of the piping on site. Warning! Hard-scale removal in green liquor handling systems: Make sure that the sensor and wash nozzle materials are suitable for the hard-scale removal chemi- cals.
  • Page 181 11 Safe-Drive™ Floor, work platform 1000-1500 (3-5ft) Figure 11.3 Selecting the mounting location The Safe-Drive™ system is mounted on a vertical pipe or horizontal pipe. When choos- ing mounting location, keep in mind that you have to be able to lift the Retractor with sensor inside over and off the isolation valve for sensor insertion and removal.

  • Page 182: Welding Isolation Valve To Pipe

    For the Safe-Drive™ Isolation valve, two holes – 50 mm (2") and 25 mm (1") – are drilled to the pipe and the bridge between the holes is then removed. To help you place the holes correctly, Vaisala delivers with the valve an installation guide sticker (see Figure 11.6).
  • Page 183 11 Safe-Drive™ 1. Clean the surface of the pipe around the installation area and place the guide sticker across the pipe. Make sure that the flow marker is parallel to the pipe and points to the correct flow direction. 2. Disassemble the isolation valve for welding to avoid thermal damage to the isolation valve sealing.
  • Page 184 PR-23 instruction manual Installation guide sticker (1:1) Valve handle always on top Large bayonet always on top Assembly/disassembly of isolation valve Material SAF2205 Torque 35Nm (26 lbf ft) 25 (1.0) Drill 50mm(2") and 25mm (1") Welding holes and cut between Figure 11.7 Welding the Safe-Drive™...
  • Page 185 11 Safe-Drive™ Installation guide sticker (1:1) Valve handle always on top Large bayonet always on top Torque 35Nm (26lbf ft) Assembly/Disassemble isolation valve for welding Material SAF2205 Drill 50mm (2") and 25mm (1") Welding holes and cut between Figure 11.8 Welding the Safe-Drive™ isolation valve to a vertical pipe...

  • Page 186: Wiring

    PR-23 instruction manual 11.4.2 Wiring Figure 11.9 PR-23-SD system wiring...

  • Page 187: Steam Piping For Sdi2 (Eg Weak And Black Liquor)

    11 Safe-Drive™ 11.4.3 Steam piping for SDI2 (eg weak and black liquor) Box steam ushing before retraction Warning : Drain valves, normally closed Figure 11.10 Mounting steam wash to isolation valve...
  • Page 188 PR-23 instruction manual In case of excessive pressure: If the steam pressure exceeds to maximum pressure differential, a pressure reducing valve PR-3341-J needs to be installed to reduce the steam pressure to optimal design. Figure 11.11 Pressure reducing valve PR-3341-J Note the orientation of the strainer.

  • Page 189: High Pressure Water Piping For Sdi2 (Eg Green Liquor)

    11 Safe-Drive™ 11.4.4 High pressure water piping for SDI2 (eg green liquor) Prism wash -see manual 4.2.1 for recommended wash pressures and times Box ushing before retraction Warning: Drain valves, normally closed Description Extended nipple 5344 1/4" ball valve PR-3516 Check valve PR-3304 Figure 11.13 Mounting high pressure water wash to isolation valve...

  • Page 190: Water Consumption Of The High Pressure Wash System

    PR-23 instruction manual 11.4.5 Water consumption of the high pressure wash system Water add Pressure 10 s wash 10 s wash every 15 min Nozzle flow 17 bar (250 psi) 1.5 l (0.40 gal) 6 l (1.6 gal)/h 0.15 l (0.04 gal)/s 34 bar (500 psi) 2.2 l (0.58 gal) 8.8 l (2.3 gal)/h...

  • Page 191: Safe Sensor Insertion And Removal For Safe-Drive™ Generation 2.1

    11 Safe-Drive™ 11.5 Safe sensor insertion and removal for Safe-Drive™ Genera- tion 2.1 Important: These instructions are for Safe-Drive™ generation 2.1. If you have Gen- eration 1 or Generation 2 Safe-Drive™ , consider upgrading to 2.1. Upgrade from Gen- eration 1 requires shutdown, upgrade from Generation 2 can be done any time. See http://www.kpatents.com/support/product-upgrades-and-notifications for more information on how to upgrade.
  • Page 192 PR-23 instruction manual Figure 11.15 The recommended work zone is by the side of the SD...

  • Page 193: Sensor Insertion

    11 Safe-Drive™ 11.5.1 Sensor insertion Before you start • check that the gaskets and gasket surfaces are clean and undamaged • remove the sensor cable gland and unlock Inner casing 1. Insert the sensor into Inner casing. Make sure that the sensor cable gland has been taken off.
  • Page 194 PR-23 instruction manual 1. Insert the safety pin. 2. Lock the safety pin with safety clip. DO NOT PROCEED UNTIL YOU HAVE COMPLETED THIS STEP! 1. Close the blow-out ball valve under Isolation valve. 2. Lift up the Isolation valve handle locking plate. 3.
  • Page 195 11 Safe-Drive™ 1. Turn the wheel 90° clockwise. 2. Open the locking latch on Outer casing. 3. Rotate Outer casing handle 60° counterclockwise. 1. Turn the hand-wheel counterclockwise to drop the thread. 2. Lift off Outer casing. 1. Lift up the latch of Inner casing to unlock it. 2.

  • Page 196: Sensor Removal

    PR-23 instruction manual 11.5.2 Sensor removal Switch off the DTR to cut off power from the sensor. Close wash valve. 1. Unscrew and remove sensor nameplate 2. Loosen the cable gland 3. Unscrew the wires 4. Remove the sensor cable and cable gland Note: If another in-line sensor is connected to the same DTR, disconnect the loose cable from the DTR and turn on power again.
  • Page 197 11 Safe-Drive™ 1. Insert the safety pin. 2. Lock the safety pin with the safety clip. DO NOT PROCEED UNTIL YOU HAVE COMPLETED THIS STEP! Open and remove the four M12 nuts on the bolts holding the sensor to Isolation valve using a 19 mm or ¾”...
  • Page 198 PR-23 instruction manual 1. Lift open Outer casing locking latch. 2. Rotate Outer casing 60° counterclockwise so that the handle comes up on top. Take a firm hold on the hand-wheel and the handle and pull out Retractor with sensor inside. Warning! A firm hold of the tool is essential as the combination of the tool and the sensor is noticeably heavier than Retractor alone.

  • Page 199: Wash Nozzle Insertion And Removal

    11 Safe-Drive™ 11.6 Wash nozzle insertion and removal Warning! Non retractable wash nozzle SDI2-23-WPR/WPN-XS for high pressure water can only be inserted or removed when the process pipe is empty. Insertion and retraction instructions below are valid only for wash nozzles SDI2-23-SN2 for steam and SDI2-23-WP2 for high pressure water.

  • Page 200: Wash Nozzle Removal

    PR-23 instruction manual 11.6.2 Wash nozzle removal Warning! Always shut the main steam valve before performing any work on the wash nozzle. WARNING: Make absolutely certain that the steam or water supply is shut off before starting nozzle removal procedure. 1 Close the steam line supply valve (1).

  • Page 201: Thermal Cover For Pr-23-Sd

    11 Safe-Drive™ 11.7 Thermal cover for PR-23-SD The thermal cover prevents heat flow between process and ambient surroundings. It helps maintain the sensor tip and the prism surface at process temperature and may reduce prism coating. Use thermal cover when the temperature difference between the process and the ambient is more than 30°C or when the process temperature is over 60°C.
  • Page 202 PR-23 instruction manual To remove the thermal cover, first open the two velcro fasteners on the right. Then open the velcro fastener on the left, unwrap the cover underneath the sensor and then remove the cover. Figure 11.17 Removing the thermal cover...

  • Page 203: Blinding The Safe-Drive™ System

    Safe-Drive™ system is of different generation and a different set of instructions is needed. Vaisala strongly recommends upgrading the system to Generation 2.1, for more information see http://www.kpatents.com/support/product-upgrades-and...
  • Page 204 PR-23 instruction manual Figure 11.19 Markings on the retractor handle...
  • Page 205 11 Safe-Drive™ Generation 1 (2006-2014) Retractor without safety bracket. Isolation valve without safety bracket. Generation 2 (2014-2017) Retractor with safety bracket. Isolation valve with safety bracket. Generation 2.1 (2017-) Retractor with safety bracket and integrated safety clip and pin. Isolation valve with safety bracket. Table 11.2 Identifying the different Safe-Drive™...
  • Page 206 PR-23 instruction manual...

  • Page 207: Ethernet Connection Specification

    DTR. This document gives all the specifications necessary to write a communications program for downloading purposes. It is also possible to get a ready-to-install communications software from Vaisala. 12.1 Cable requirements and connection 12.1.1 Ethernet cable specification The DTR uses a standard Ethernet cable (10/100BASE-T Cat 5e UTP cable with RJ45 connectors).

  • Page 208: Connecting The Ethernet Cable

    PR-23 instruction manual If you are connecting the DTR to a hub or switch or WLAN access point, please con- sult the user’s guide of your hub/switch/access point for the correct cable type (Fig- ures 12.3 and 12.4). POWER POWER Hub/Switch PROCESS INSTRUMENTS PROCESS INSTRUMENTS...

  • Page 209: Connection Settings

    12 Ethernet connection specification Figure 12.6 Ethernet connector on the underside of the Front panel. Note: The DTR has automatic speed negotiation, i.e. it will automatically find out what the optimal speed for the connection is and choose accordingly either 10 Mbit/s or 100 Mbit/s speed.

  • Page 210: Testing The Ethernet Connection

    PR-23 instruction manual If you are using Windows (or Mac OS X 10.3 or newer or any recent Linux distrib- ution) and the computer has the default network settings, change the DTR IP ad- dress to 169.254.x.y, where x=1–254 and y=1–254, for example 169.254.100.100 or 169.254.123.1.

  • Page 211: Troubleshooting The Connection

    12 Ethernet connection specification very simple: go to the command interface (for example the Command Prompt), type the name of the command and the IP address you want to check and press Enter. If the Ethernet connection is good, the DTR is powered on and the address given to ping is correct, the DTR will answer to ping and return any data packets sent to it, see Fig- ure 12.8.

  • Page 212: Instrument Homepage

    PR-23 instruction manual If the green LED is lit, your Ethernet connection is made correctly with the right type of cable. In this case, try pinging the DTR and check if the orange LED flashes during ping. If the LED does not flash, re-check the IP address (so that you are really pinging the DTR in question).

  • Page 213: Remote Panel

    DTR it is http://192.168.23.254/ (the figure 12.10 above uses a different address, not the default). Give the address to the browser just like you’d enter any other address (for example http://www.vaisala.com/) 4. Wait until the homepage is loaded, this may take a few seconds.

  • Page 214: Collecting Data Via Ethernet

    The main purpose of the Ethernet connection is to collect measurement data from the instrument. You can program a downloading facility yourself following the specifica- tions below. Note: Vaisala guarantees that the specifications are correct, but cannot assume any responsibility or provide support for software. 12.5.1 Communication protocol The communications protocol is based on UDP/IP to port 50023.

  • Page 215: Request-Response Pair Specification

    12 Ethernet connection specification Response format The response data sent by the DTR is in ASCII format. With the exception of the packet number, the data is human-readable. The data structure is very simple: – packet number (32-bit integer) – zero or more lines of ASCII (text) keys and values associated with these keys (for example temperature key and process temperature in Celsius) The packet number is echoed back without change.
  • Page 216 PR-23 instruction manual NULL message The null message is included in the query messages for debugging purposes as it can be used to check whether the server is listening. The message gives a high-level ’ping’ functionality. Request ID 0x00000000 Request data (none) Response key : IP address...

  • Page 217: Error Message Specification

    : string, error details ErrorMsg There may also be error-dependent extra keys. Other error codes may be returned. is to be handled as unknown request. Codes with higher numbers refer 0x00000003 to internal errors; contact Vaisala for more information on these.
  • Page 218 PR-23 instruction manual...

  • Page 219: Sensor Verification

    In cases where no such standards exist, the basis used for calibration must be documented. Vaisala verifies the calibration of all delivered instruments according to a procedure similar to the one described Section 13.1. Vaisala K-PATENTS® quality system is ISO 9001 certified by Det Norske Veritas.

  • Page 220: Handling The R.i. Liquids

    As the specified accuracy of PR-23 is ±0.0002, then the representative level is the sum of the three accuracy specifications, that is ±0.0004. Vaisala provides a set of standard R.I. liquids, PR-2300, containing these five liquids. The set can be ordered directly from Vaisala or through your nearest representative.
  • Page 221 13 Sensor verification Figure 13.3 Verification display Important: Clean and dry the prism and the sample holder very carefully between the RI liquids. Use a suitable solvent, e.g. ethanol or IPA (Isopropyl alcohol). To check that the standard liquid is properly wetting the prism, it is possible to press soft key .

  • Page 222: Sensor Verification Certificate

    PR-23 instruction manual Figure 13.5 Verification in process Figure 13.6 Verification completed successfully (here only with one RI liquid) If the verification fails, please see section 13.4 for corrective action. 13.3 Sensor verification certificate The DTR stores the most recent verification done on the DTR and the results of that verification can be viewed and printed on the instrument homepage by following the Verification link on the link bar.

  • Page 223: Corrective Action

    13 Sensor verification Figure 13.7 Instrument verification page open in a browser Note: If you need to verify two sensors connected to one DTR, you need to verify one and then to save or print the certificate, as the results from the verification of the sec- ond sensor will overwrite the results of the first sensor.
  • Page 224 PR-23 instruction manual K-Patents PR-23 Refractometer System: Sensor verification http://192.168.23.250/verif.shtml PROCESS REFRACTOMETER PR-23 Sensor verification Page loaded on February 2, 2009 at 03:19:28 PM Sensor information Serial number: R05676 Test results Nominal nD Measurement Sensor at 25°C Measured Accuracy Result Head Head Supply...
  • Page 225 13 Sensor verification If verification fails even on the repetition of the verification procedure, fill in the PR-23 sensor verification form (available in Appendix C) and send it to your nearest rep- resentative or email the collected information to <info@kpatents.com> and wait for further instructions.
  • Page 226 PR-23 instruction manual...

  • Page 227: Regulatory Compliance And Certifications

    – Part 1: General requirements EN 61326-1:2013 Electrical equipment for measurement, control and laboratory use – EMC requirements – intended for use in industrial locations Signed for and on behalf of Vaisala Oyj, in Vantaa, on 1 September 2019 ______________________________________ Jukka Lyömiö...

  • Page 228: Declaration Of Conformity For Pr-23

    – EMC requirements – intended for use in industrial locations Notified body DEKRA Certification B.V. has issued type examination certificate KEMA 05ATEX1183 X for this product. Signed for and on behalf of Vaisala Oyj, in Vantaa, on 1 September 2019 ______________________________________ Jukka Lyömiö...

  • Page 229: Declaration Of Conformity For Pr-23

    – EMC requirements – intended for use in industrial locations Notified body Eurofins Expert Services Oy (number 0537) has issued EU-type examination certificate EESF 19 ATEX 028X for this product. Signed for and on behalf of Vaisala Oyj, in Vantaa, on 1 September 2019 ______________________________________ Jukka Lyömiö...
  • Page 230 PR-23 instruction manual...

  • Page 231: A Glossary And Abbreviations

    A Glossary and abbreviations • CCD = Charge Couple Device, sensor optical element • CORE, CORE Optics = Compact Optical Rigid Element: All measuring components are in one solid module, the CORE (Optics) module. • DTR = Indicating transmitter DTR, Dual sensor indicating transmitter of a PR-23 refractometer system.

  • Page 233: B Index

    B Index culinary steam 17 APV tank bottom flange 96 cycle see prism wash air cooling 6 alarm relay see relay ambient see temperature DTR see Indicating transmitter automatic DTR TMP 38 prism wash see prism wash DTR V1 38 temperature compensation see tem- DTR V2 38 perature...
  • Page 234 troubleshooting 70 fiberglass pipe 6 interconnecting cable 3, 6, 10, 147, 148 field calibration 49, 51, 53 isolation valve see Safe-Drive form 53, 231 parameters 54 service 53 keyboard 9, 33 flow cell 84 flow velocity 6, 17 minimum 8 LCD see display flowcell 85, 86 LED 2, 5...
  • Page 235 NO SAMPLE 32, 56 prism wash 17, 54, 73 NO SAMPLE message 72 automatic prism wash 55 NO SAMPLE/WASH STOP message 73 check 59, 73 NO SENSOR 69 cycle 55, 59, 73 NO SIGNAL message 69 external stop 73 NORMAL OPERATION 32 high pressure water 17 nameplate see Indicating transmitter low temp stop 73...
  • Page 236 wash relay 48 signal damping see damping replacing see prism gasket time 41 reset button 14 slew rate 42 sodium D line 2 soft key 33 Safe-Drive standard refractive index liquids see inner casing 170 certified standard refractive index installation guide sticker 178 liquids isolation valve 165, 170 startup 31...
  • Page 237 wash check see prism wash wash time see prism wash wash cycle 55, see prism wash water cooling 6 wash nozzle see prism wash water wash wash nozzle insertion see Safe-Drive water temperature 18 wash nozzle removal see Safe-Drive wiring see Indicating transmitter, wash pressure see prism wash prism wash, Safe-Drive and sensor wash relay see relay...

  • Page 239: Sensor Verification Form

    C PR-23 sensor verification form Fill in this email it to <info@kpatents.com> or to your local service representative. Sensor serial no: Customer: Address: Fax: Email: Date: Verification made by: VERIFICATION RESULTS DISPLAY Sample no Nominal n Measured n Temp 1.3300 1.3700 1.4200 1.4700...

  • Page 241: Field Calibration Form

    D PR-23 field calibration form Fill in this form and email it to <info@kpatents.com> or to your local service repre- sentative. Sensor serial no: Customer: Address: Fax: Email: Sample description: Solvent (water/other): Laboratory method: Date: Data collected by: DTR DISPLAY VALUES Sample no LAB% CALC...

  • Page 243: Edtr Command Selection Tree

    E DTR command selection tree SENSOR A/B MAIN MENU VERIFICATION SYSTEM mA OUTPUTS RELAYS DESCRIPTION SWITCHES PRISM WASH CHEMICAL CURVE PARAMETERS FIELD CALIBRATION NETWORK SENSOR nD CALIBRATION FIELD SAMPLE SENSOR RESTART SENSOR STATUS SLOPE WASH WASH DUAL SENSOR MAIN DISPLAY FORMAT SINGLE SENSOR: CONC DISPLAY BACKLIGHT &...

  • Page 245: Fstr/Divert Mode Command Selection Tree

    F STR/Divert mode command selection tree MENU VERIFICATION SYSTEM mA OUTPUTS RELAYS DESCRIPTION SWITCHES PRISM WASH CHEMICAL CURVE PARAMETERS FIELD CALIBRATION NETWORK SENSOR nD CALIBRATION FIELD SAMPLE SENSOR RESTART SENSOR STATUS SLOPE WASH WASH MAIN DISPLAY FORMAT SINGLE SENSOR: CONC DISPLAY BACKLIGHT &...
  • Page 246 www.vaisala.com...

This manual is also suitable for:

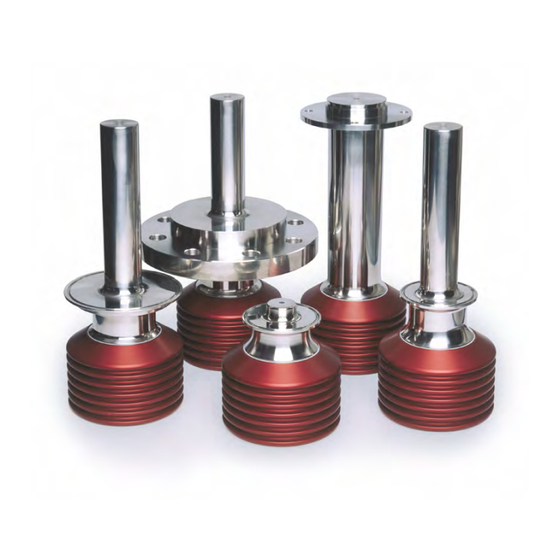

K-patents pr-23-apK-patents pr-23-gpK-patents pr-23-acK-patents pr-23-gcK-patents pr-23-rpK-patents pr-23-m ... Show all

Table of Contents
