VECTORVISION COMPACT NAVIGATION STATION
3.4.4 Base Frame and Wheel Assembly
The wheel assembly and a rail, which holds the VectorVision compact workstation, are attached
Overview
to the base frame.
The Base Frame
No.
a
s
d
f
The wheels can only be exchanged by Brainlab support.
Wheel Exchange
Technical User Guide Rev. 2.7 VectorVision & Kolibri
a
f
Component Explanation
Foot brake pedal Simultaneously activates the front and rear wheels
Rail Holds the workstation
Front wheels Steer the system
Rear wheels Turn in a fixed position

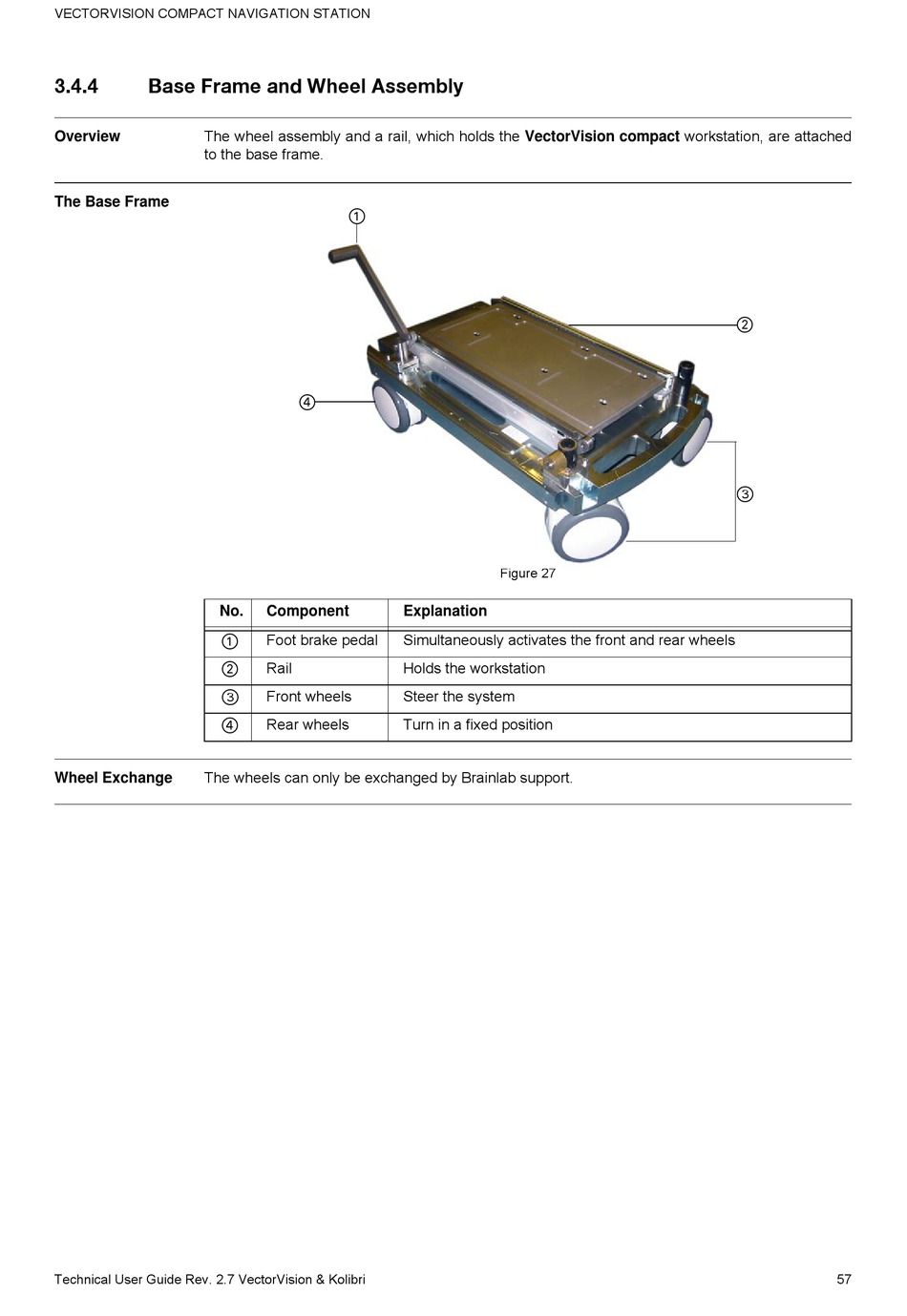

Figure 27
s
d
57
