Electrical Safety Tests

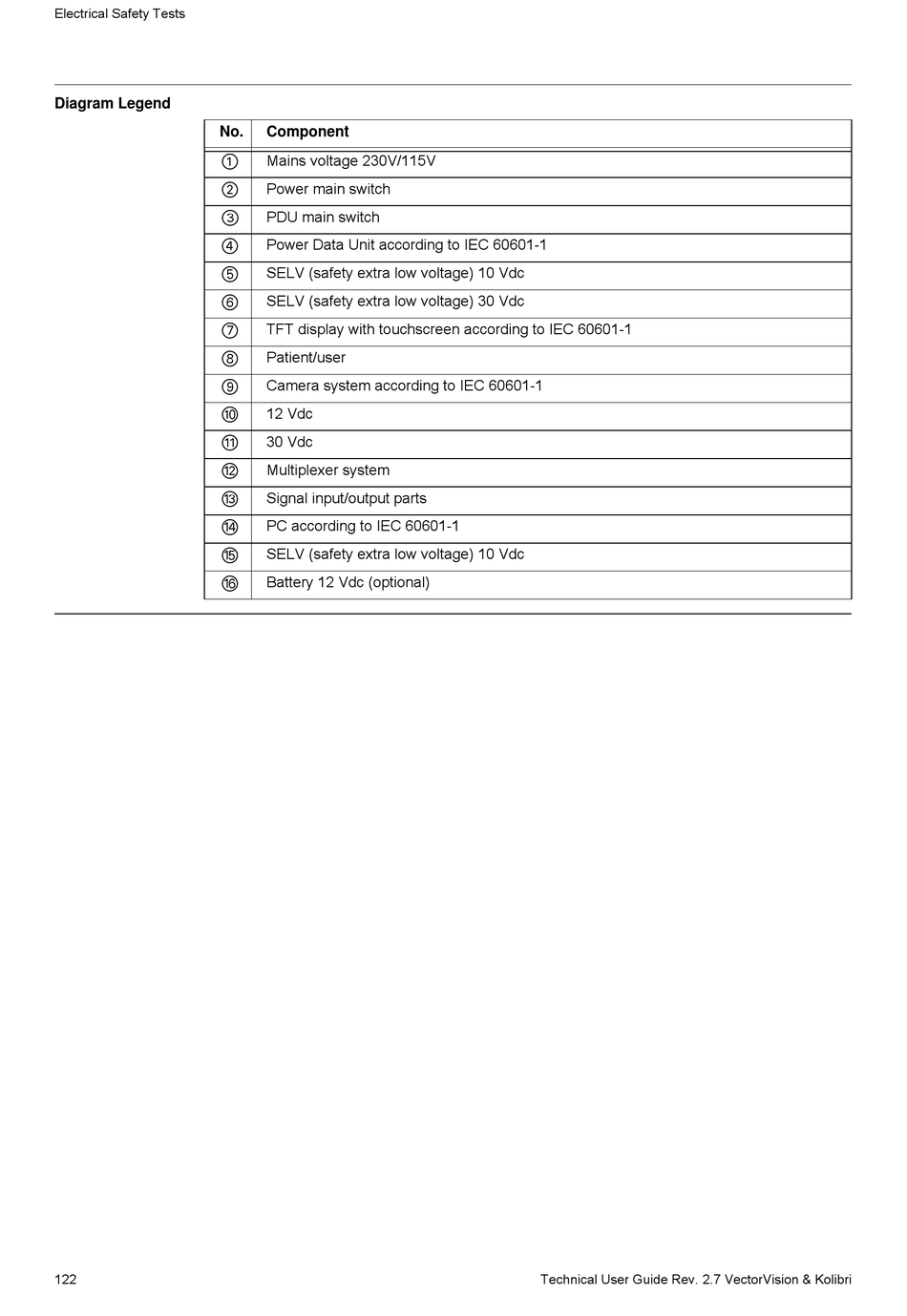

Diagram Legend
No.
a
s
d
f
g
h
j
k
l
;
A
S
D
F
G
H
122
Component
Mains voltage 230V/115V
Power main switch
PDU main switch
Power Data Unit according to IEC 60601-1
SELV (safety extra low voltage) 10 Vdc
SELV (safety extra low voltage) 30 Vdc
TFT display with touchscreen according to IEC 60601-1
Patient/user
Camera system according to IEC 60601-1
12 Vdc
30 Vdc
Multiplexer system
Signal input/output parts
PC according to IEC 60601-1
SELV (safety extra low voltage) 10 Vdc
Battery 12 Vdc (optional)
Technical User Guide Rev. 2.7 VectorVision & Kolibri
