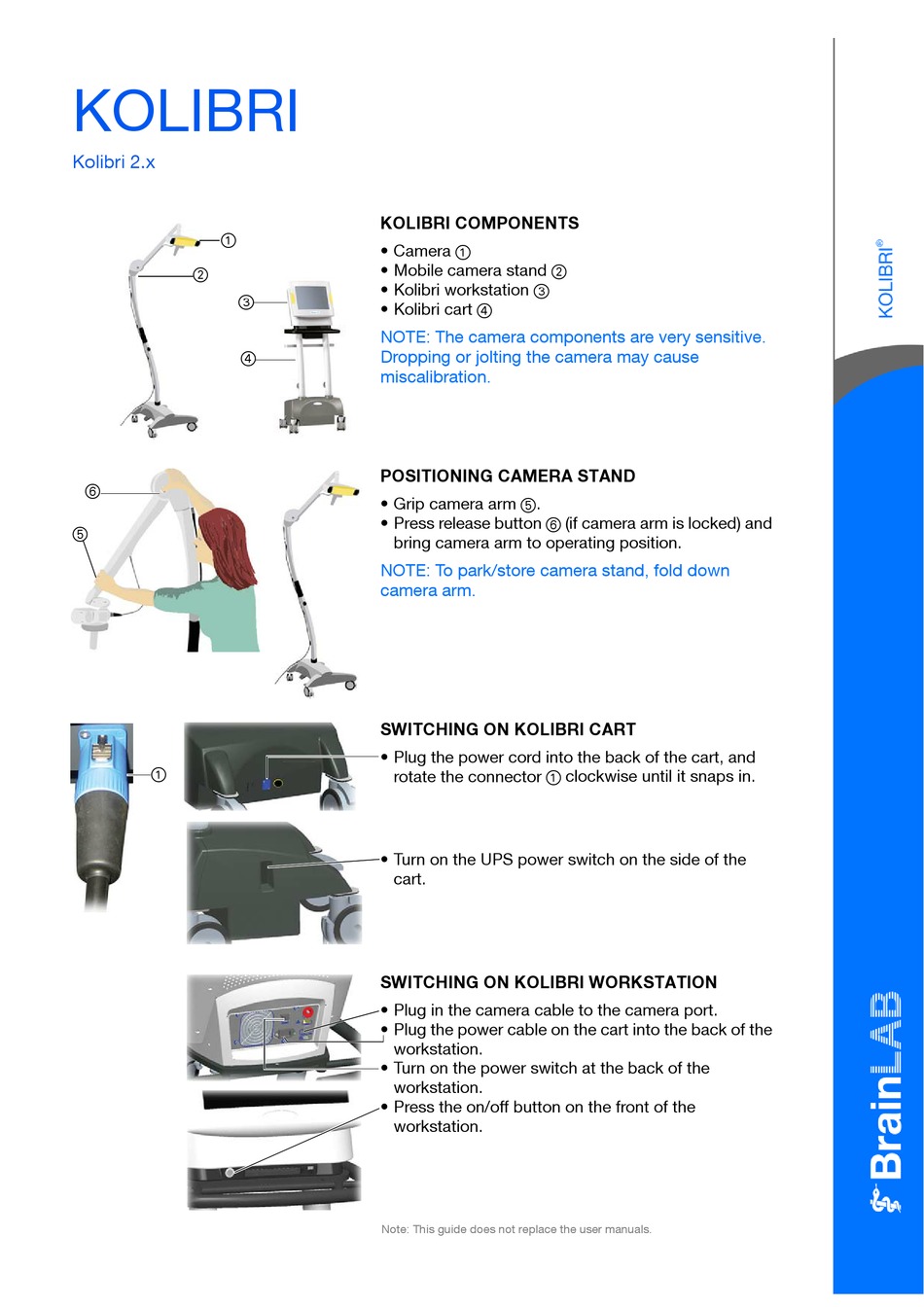

Brainlab KOLIBRI Manual

KOLIBRI
Kolibri 2.x
a
s
d
f
h
g
a
KOLIBRI COMPONENTS
• Camera
a
• Mobile camera stand
s
• Kolibri workstation
d
• Kolibri cart
f
NOTE: The camera components are very sensitive.
Dropping or jolting the camera may cause
miscalibration.
POSITIONING CAMERA STAND
• Grip camera arm .
g
• Press release button
h
bring camera arm to operating position.
NOTE: To park/store camera stand, fold down
camera arm.
SWITCHING ON KOLIBRI CART
• Plug the power cord into the back of the cart, and
rotate the connector
a
• Turn on the UPS power switch on the side of the
cart.
SWITCHING ON KOLIBRI WORKSTATION
• Plug in the camera cable to the camera port.
• Plug the power cable on the cart into the back of the
workstation.
• Turn on the power switch at the back of the
workstation.
• Press the on/off button on the front of the
workstation.
Note: This guide does not replace the user manuals.
(if camera arm is locked) and
clockwise until it snaps in.
