VECTORVISION² NAVIGATION STATION

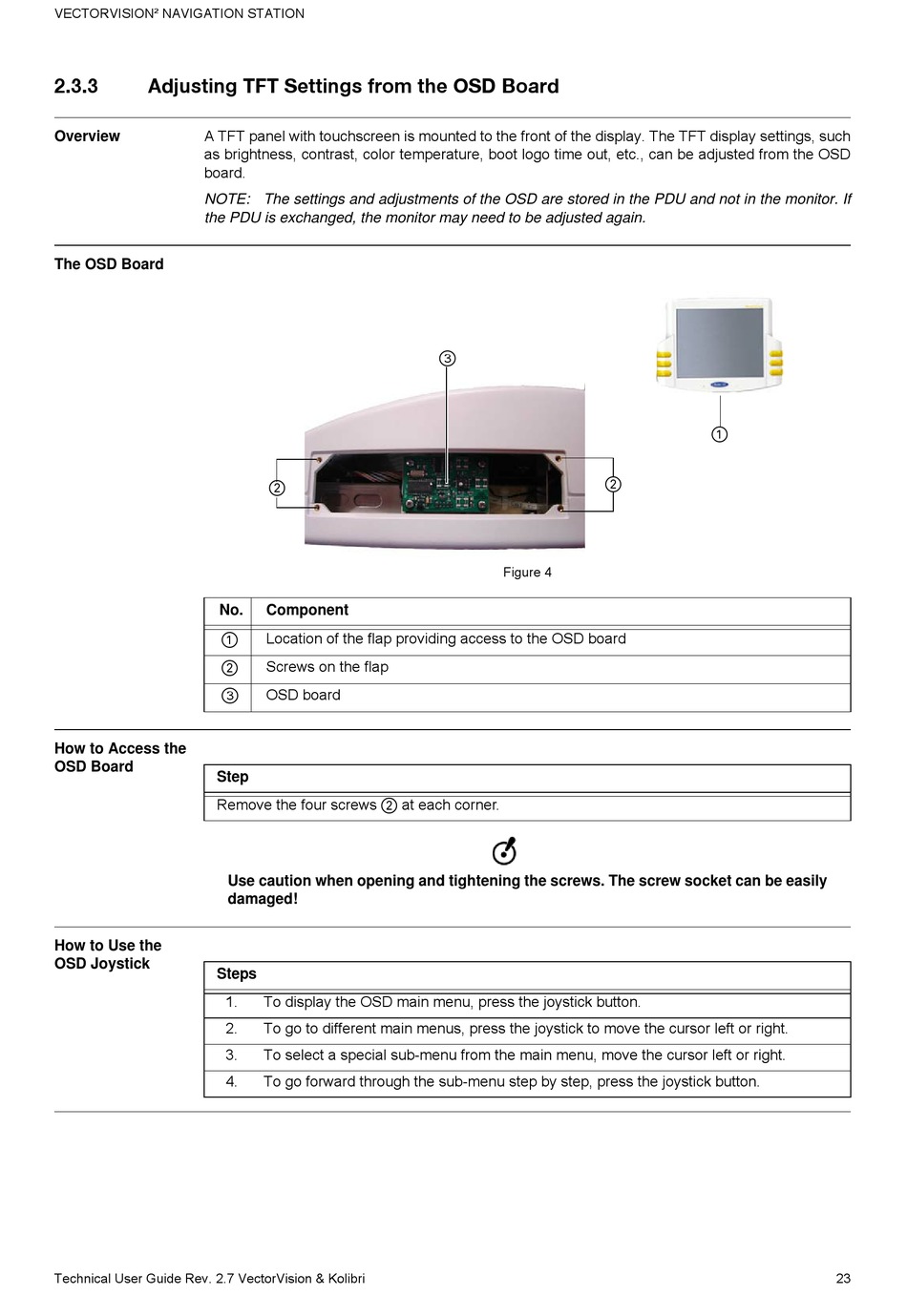

2.3.3 Adjusting TFT Settings from the OSD Board
A TFT panel with touchscreen is mounted to the front of the display. The TFT display settings, such
Overview
as brightness, contrast, color temperature, boot logo time out, etc., can be adjusted from the OSD
board.
NOTE: The settings and adjustments of the OSD are stored in the PDU and not in the monitor. If
the PDU is exchanged, the monitor may need to be adjusted again.
The OSD Board
No.
a
s
d
How to Access the
OSD Board
Step
Remove the four screws
How to Use the
OSD Joystick
Steps
Technical User Guide Rev. 2.7 VectorVision & Kolibri
s
Component
Location of the flap providing access to the OSD board
Screws on the flap
OSD board
s
Use caution when opening and tightening the screws. The screw socket can be easily
damaged!
1. To display the OSD main menu, press the joystick button.
2. To go to different main menus, press the joystick to move the cursor left or right.
3. To select a special sub-menu from the main menu, move the cursor left or right.
4. To go forward through the sub-menu step by step, press the joystick button.
d
Figure 4
at each corner.
a
s
