VECTORVISION² NAVIGATION STATION
2.3 VectorVision² Monitor Kit
2.3.1 Introduction

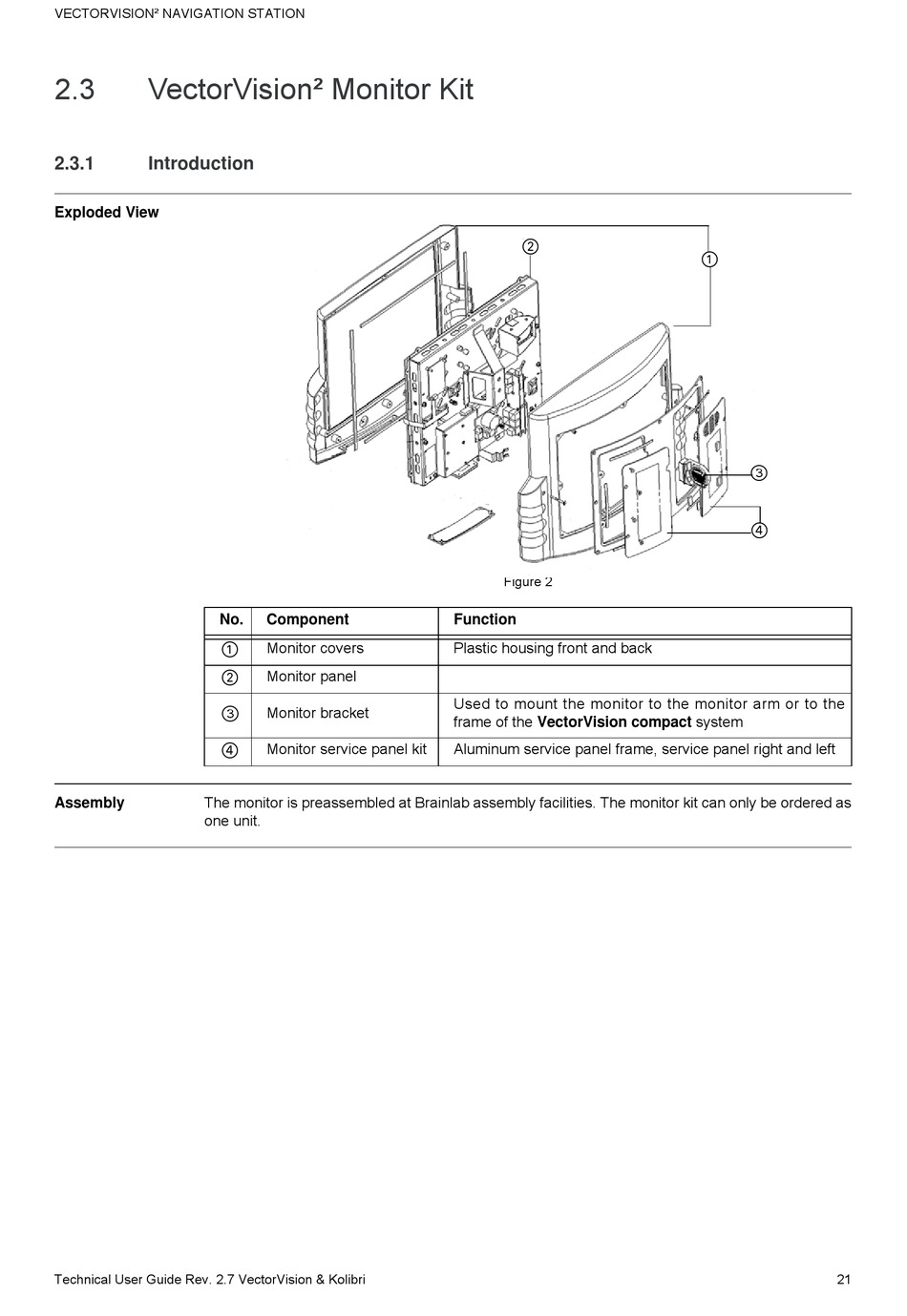

Exploded View
No.
a
s
d
f
The monitor is preassembled at Brainlab assembly facilities. The monitor kit can only be ordered as
Assembly
one unit.
Technical User Guide Rev. 2.7 VectorVision & Kolibri
Component
Monitor covers
Monitor panel
Monitor bracket
Monitor service panel kit
s
Figure 2
Function
Plastic housing front and back
Used to mount the monitor to the monitor arm or to the
frame of the VectorVision compact system
Aluminum service panel frame, service panel right and left
a
d
f
