2.5 VectorVision² Frame
2.5.1 Introduction
The VectorVision2 frame refers to the basic structure of the system. The system components, such
About the Frame
as the camera and monitor kits are attached to the frame.
Illustration
No.
a
s
d
f
g
Technical User Guide Rev. 2.7 VectorVision & Kolibri
g
f
Component
Curved arm
Base of the system
Wheel assembly
Housing
Arm fixation kit
d

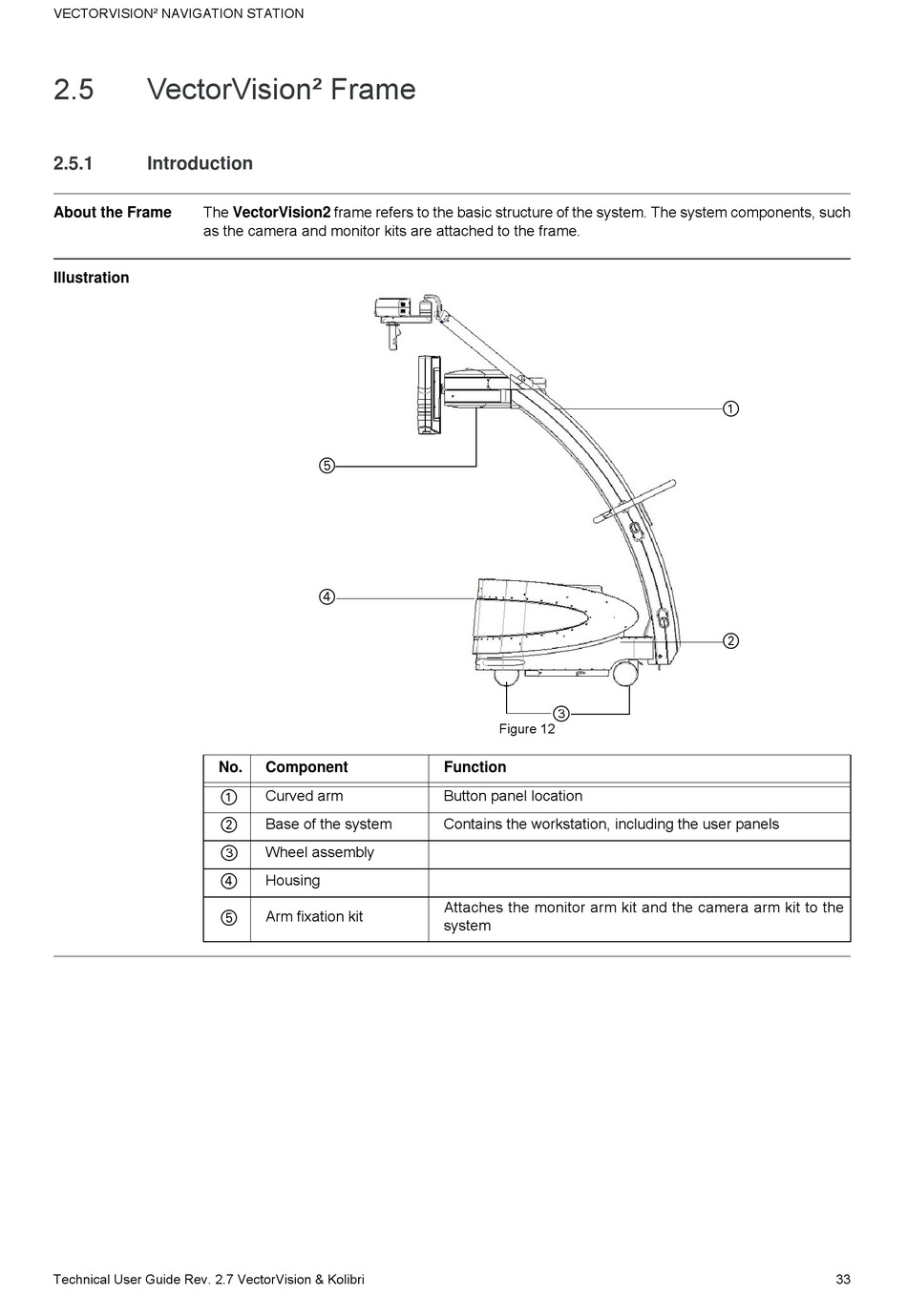

Figure 12
