Quick Start
•
In ADCPro, select the MultiScope plug-in in the Test drop-down menu as shown in
•
In ADCPro, select the Continuous button to begin continuous conversions. Confirm that the signal
being applied to Channel 1 is being captured and displayed in the Multichannel Scope window as
shown below and that the signal is roughly 1 Vpp-diff.
8
ADS1278EVM-CVAL Evaluation Module User's Guide

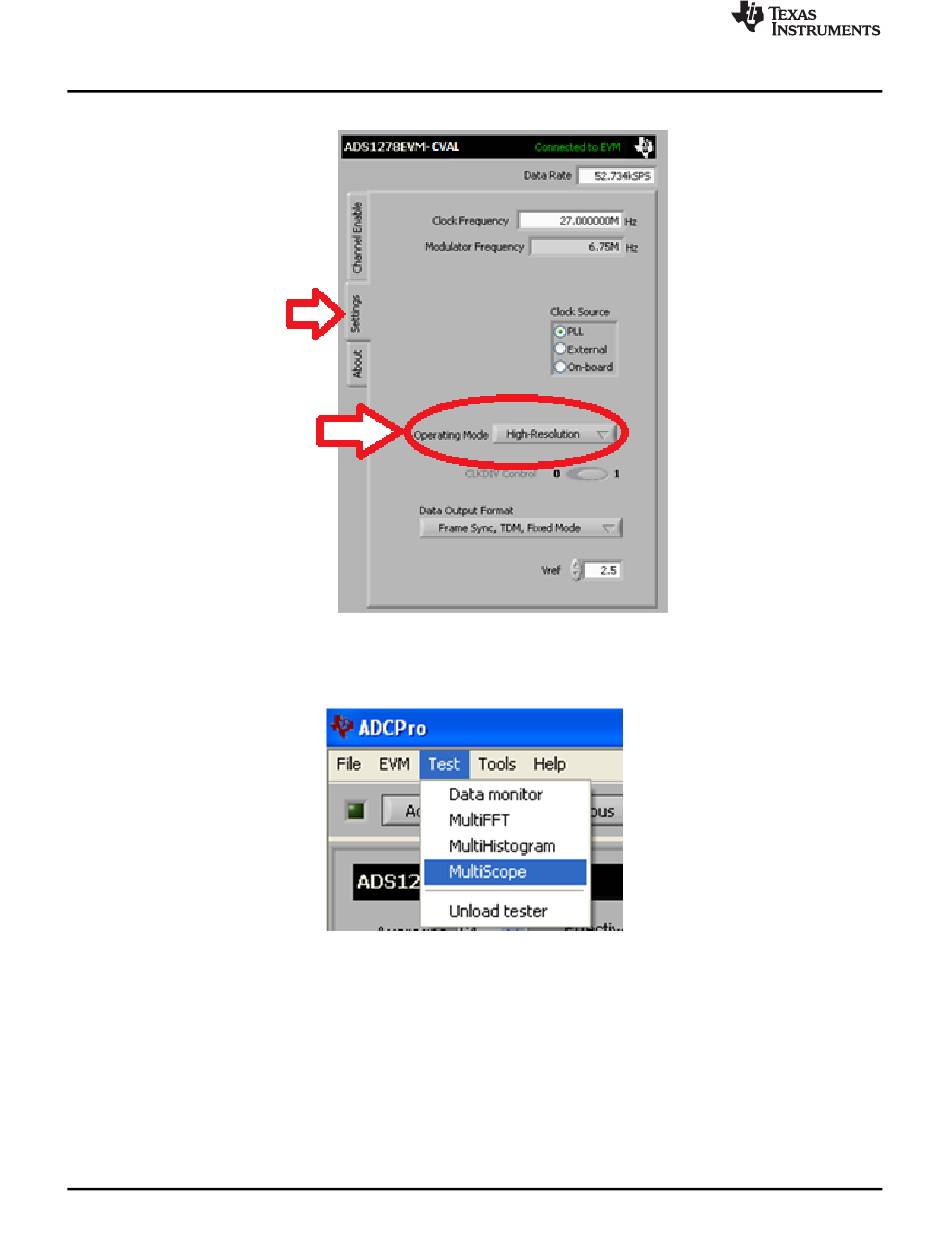

Figure 6. Set Operating Mode to High-Resolution
Figure 7. Select Test=>MultiScope
Copyright © 2018, Texas Instruments Incorporated
www.ti.com
Figure
7.
SBAU324 – September 2018
Submit Documentation Feedback
