EVM User's Guide: ADS1278V2EVM-PDK

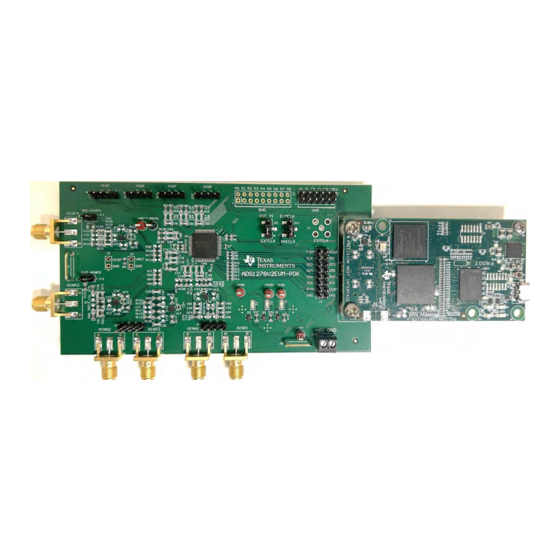

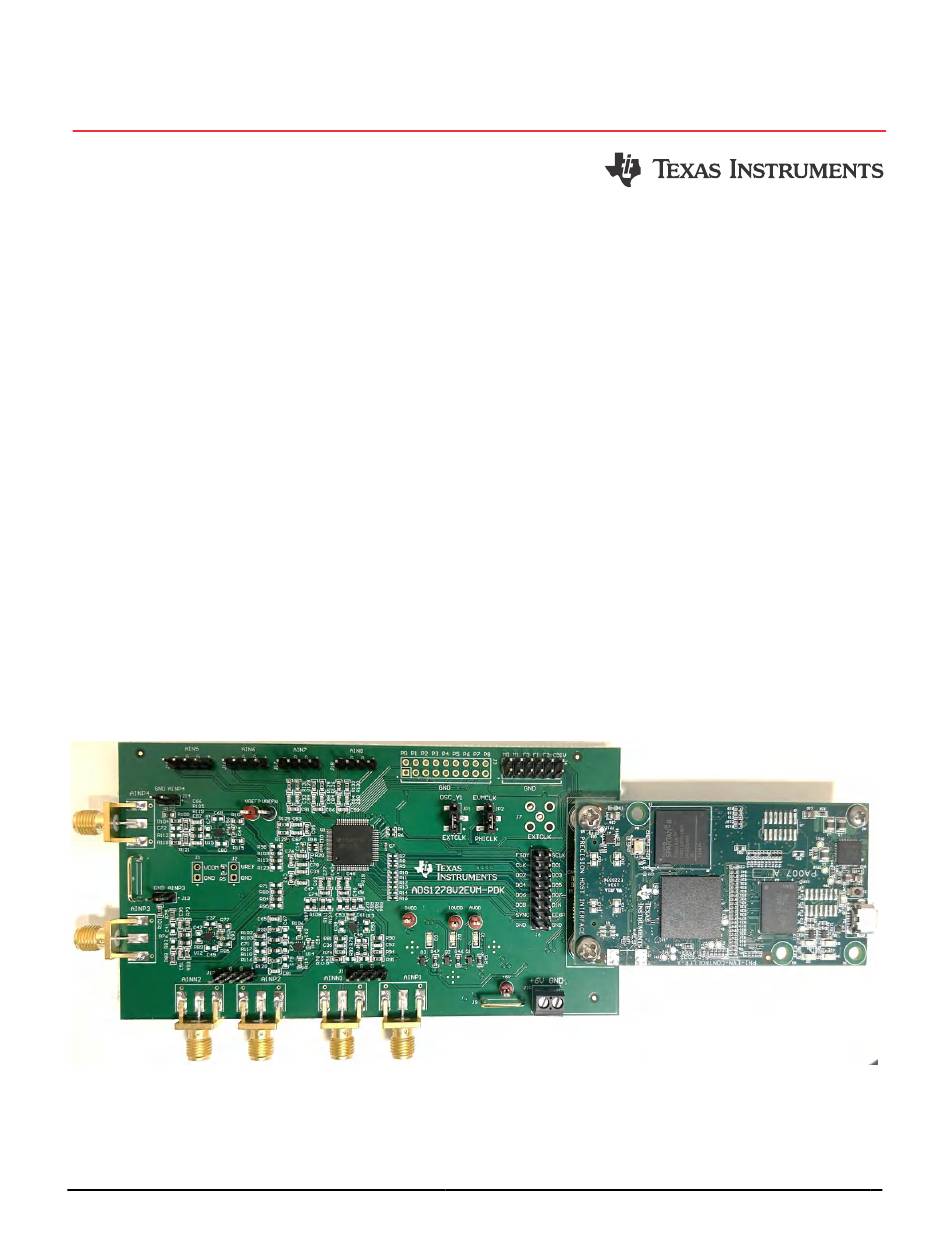

ADS1278EVM-PDK Evaluation Module
Description
The
ADS1278
evaluation module (EVM) is a platform
for evaluating the performance of the ADS1278,
which is a 24-bit, 8-channel simultaneous-sampling
delta-sigma (ΔΣ) analog-to-digital converter (ADC).
The ADS1278 combines high-precision industrial
measurement with excellent dc and ac specifications,
providing a usable signal bandwidth of up to 90% of
the Nyquist rate with less than 0.005dB of passband
ripple. The ADS1278 EVM eases the evaluation of
the device with hardware, software, and computer
connectivity through the universal serial bus (USB)
interface.
Get Started
1. Order the EVM from ti.com.
2. Download the latest software from
PDK.
3. Launch the ADS1278 EVM GUI from the start
menu.
4. Power the ADS1278 EVM from a 6V supply.
5. Connect the ADS1278 EVM to the PHI controller
board and connect the PHI board to the computer
running the ADS1278 EVM GUI.
SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024
Submit Document Feedback
Features
Hardware and software required for diagnostic
testing as well as accurate performance evaluation
of the ADS1278
The PHI controller provides a convenient
communication interface to the ADS1278 over
USB 2.0 (or higher) for digital input and output
Easy-to-use evaluation software for 64-bit
Microsoft
The software suite includes graphical tools for data
capture, histogram analysis, and spectral analysis.
This suite also has a provision for exporting data to
a text file for post-processing
Applications
Vibration/modal analysis
Multi-channel data acquisition
ADS1278EVM-
Acoustics/dynamic strain gauges
Pressure sensors
Copyright © 2024 Texas Instruments Incorporated
®
Windows
®
10 operating system
ADS1278EVM-PDK Evaluation Module
Description
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ADS1278EVM-PDK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments ADS1278EVM-PDK

  • Page 1 5. Connect the ADS1278 EVM to the PHI controller board and connect the PHI board to the computer running the ADS1278 EVM GUI. SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 ADS1278EVM-PDK Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 2: Kit Contents

    1 Evaluation Module Overview 1.1 Introduction The ADS1278EVM-PDK is a platform for evaluating the performance of the ADS1278, a 24-bit, 8-channel, simultaneous sampling delta-sigma ADC. The evaluation kit includes the ADS1278 EVM board and the precision host interface (PHI) controller board that enables the accompanying computer software to communicate with the ADC over the USB for data capture and analysis.
  • Page 3: Specification

    Evaluation Module Overview 1.3 Specification The ADS1278EVM-PDK requires an external 6V power source to power three ultra-low noise TPS7A4700 low-dropout (LDO) linear regulators that supply the ADS1278 voltage rails. The EVM supports the use of an external clock, as well as setting the MODE, FORMAT, and CLKDIV pins with jumpers.
  • Page 4: Device Information

    PWDN[8:1] Input7 CLKDIV CLKDIV Input8 MODE[1:0] MODE[1:0] AGND DGND AGND DGND ADS1274 ADS1278 Figure 1-2. ADS1274 and ADS1278 Block Diagram ADS1278EVM-PDK Evaluation Module SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 5 SMA input circuits on channels 1 and 2 except the negative inputs are grounded as shown in Figure 2-1. SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 ADS1278EVM-PDK Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 6: Power Supplies

    0P4V 0P2V 0P2V 0P2V 0P1V 0P1V MMSZ5227B-7-F 0P1V 3.6V MMSZ4690T1G 3.6V TPS7A4700RGWR TPS7A4700RGWR TPS7A4700RGWR 5.6V Figure 2-3. Power Supply Circuitry ADS1278EVM-PDK Evaluation Module SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 7 CHAN_N8 AINN8 TEST0 AGND AGND AGND AGND AGND DGND DGND DGND DGND PowerPAD ADS1278IPAPR Figure 2-4. ADS1278 Connections and Decoupling SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 ADS1278EVM-PDK Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 8 Audio Precision SYS-2722 to set the signal generator's common-mode output. VCOM OPA2320AQDGKRQ1 AVDD OPA2320AQDGKRQ1 49.9 VCOM_ADC 0.1 µF 0.1 µF Figure 2-6. VCOM Buffer Circuit ADS1278EVM-PDK Evaluation Module SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 9: Voltage Reference

    AVDD VREFN OPA2320AQDGKRQ1 47.0 1.00k VOUT TRIM/NR TEMP 100 µF 0.1 µF 10µF REF5025AIDGKT REF5025AIDGKT Figure 2-7. Reference Voltage Circuit SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 ADS1278EVM-PDK Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 10: Clock Tree

    PLL to become stuck if the entered frequencies are coerced to the same frequency. If this occurs, then disconnect and reconnect the GUI to reset the PLL. ADS1278EVM-PDK Evaluation Module SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 11: Digital Interfaces

    0.1 µF CONTROL.FORMAT1 100k CONTROL.FORMAT2 100k CONTROL.CLKDIV 100k EEPROM_WP TSW-106-07-G-D EVM_ID_SCL EVM_ID_SDA BR24G32FVT-3AGE2 0.1 µF Figure 2-9. Digital Interface Connections SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 ADS1278EVM-PDK Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 12 Figure 3-1, accept the license agreements and follow the on-screen instructions to complete the installation. Figure 3-1. GUI Installation Prompts ADS1278EVM-PDK Evaluation Module SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 13 As a part of the ADS1278 EVM GUI installation, install the Device Driver as shown in Figure 3-2. Click Next to proceed. Figure 3-2. Device Driver Installation Prompts SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 ADS1278EVM-PDK Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 14 LabVIEW run-time engine is not already installed, as shown in Figure 3-3. Figure 3-3. LabVIEW Runtime Installation Prompts ADS1278EVM-PDK Evaluation Module SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 15: Hardware Connections

    3. PHI Indicator LEDs connect USB. 3. Connect 5. Connect Input Power to the Signals ADS1278 EVM Figure 4-1. Hardware Connections SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 ADS1278EVM-PDK Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 16 Mode and Format Channel Pins Shutdown Pins Vref IN External Clock Digital Vcm out Communica on pins Figure 4-2. Optional EVM Connections ADS1278EVM-PDK Evaluation Module SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 17 ¡ ¢ Vref se ng Number of samples to capture Clock Se n gs £ Figure 4-3. EVM Settings SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 ADS1278EVM-PDK Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 18 Switching pages to any of the analysis tools described in the subsequent sections causes calculations to be performed on the same set of data. Figure 4-4. Time Domain Display ADS1278EVM-PDK Evaluation Module SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 19 24-bit ADC. The None option corresponds to not using a window (or a rectangular window) and is not recommended. Figure 4-5. Frequency Domain Display SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 ADS1278EVM-PDK Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 20: Histogram Display

    Figure 4-6, the histogram corresponding to a dc input is displayed on clicking the Capture button. Figure 4-6. Histogram Display ADS1278EVM-PDK Evaluation Module SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 21 100k CONTROL.FORMAT1 100k /PWDN6 100k CONTROL.FORMAT2 100k /PWDN7 100k CONTROL.CLKDIV 100k /PWDN8 100k TSW-106-07-G-D TSW-109-07-G-D Figure 5-1. ADS1278 Connections Schematic SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 ADS1278EVM-PDK Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 22 PHI CLK EVM_ID_SCL SG-210STF27.0000ML0 EVM_ID_SDA Alternate: LMK6CA027000CDLFR TSM-103-01-L-SV BR24G32FVT-3AGE2 0.1 µF OSC DISABLE Figure 5-2. ADS1278 EVM Digital Connections Schematic ADS1278EVM-PDK Evaluation Module SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 23 With CNR set to 2uF 5.6V Start Slope = 58.5V/s Startup m e=119ms ¡ Start Slope = 30.2V/s Figure 5-3. Power Supplies Schematic SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 ADS1278EVM-PDK Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 24 THS4551IRUNR THS4551IRUNR 270pF 270pF AINN4 R120 R121 470pF 470pF R122 1.00k 1.00k R123 R124 Figure 5-4. Driven Input Circuitry Schematic ADS1278EVM-PDK Evaluation Module SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 25 0.01uF 0.01uF TSW-104-07-G-S TSW-104-07-G-S 220pF 220pF R131 R132 AINN6 AINN8 CHAN_N6 CHAN_N8 0.1% 0.1% Figure 5-5. Undriven Input Circuitry Schematic SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 ADS1278EVM-PDK Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 26 PCB layouts for the ADS1278 EVM. Figure 5-6. Top Side Composite Layout Figure 5-7. Bottom Side Composite Layout ADS1278EVM-PDK Evaluation Module SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 27 Hardware Design Files Figure 5-8. Top Signal Layer Layout Figure 5-9. Ground Layer Layout SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 ADS1278EVM-PDK Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 28 Hardware Design Files www.ti.com Figure 5-10. Power Layer Layout Figure 5-11. Bottom Signal Layer Layout ADS1278EVM-PDK Evaluation Module SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 29 CAP, CERM, 0.01uF, 25V, +/- 5%, C0G/NP0, 0.01uF 0603 C0603H103J3GACTU Kemet C85, C86, C91, C92 0603 CAPCLK, MCLKo Test Point, SMT Test Point, SMT S2751-46R Harwin SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 ADS1278EVM-PDK Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 30 0402 CRCW04020000Z0ED Vishay-Dale 0402 RES, 1.00 k, 1%, 0.063 W, AEC-Q200 Grade R19, R23 1.00k 0402 CRCW04021K00FKED Vishay-Dale 0, 0402 ADS1278EVM-PDK Evaluation Module SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 31 Converters Automotive Qualified Precision, Zero- Crossover, 20MHz, 0.9pA Ib, RRIO, CMOS DGK0008A OPA2320AQDGKRQ1 Texas Instruments Operational Amplifier, DGK0008A (VSSOP-8) SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 ADS1278EVM-PDK Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 32 R95, R96, R97, R98, RES, 0, 5%, 0.1 W, AEC-Q200 Grade 0, 0603 0603 CRCW06030000Z0EA Vishay-Dale R110, R112, R123, R124 ADS1278EVM-PDK Evaluation Module SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 33: Additional Information

    NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Revision * (January 2024) to Revision A (February 2024) Page • Added Operating Conditions table........................3 SBAU436A – JANUARY 2024 – REVISED FEBRUARY 2024 ADS1278EVM-PDK Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
