Settings Tab - Texas Instruments ADS1278EVM-CVAL User Manual

www.ti.com
The Master (All) Enable control allows for the selection of channels to convert. Manual Control allows
channel enable control via CH1 through CH8 selector switches. All Channels Enabled and All Channels
Disabled turn all the selector switches either ON or OFF.
4.3

Settings Tab

The Settings tab as shown below allows for the selection of the various clock frequencies, operating
mode, data format, and other settings.
SBAU324 – September 2018
Submit Documentation Feedback

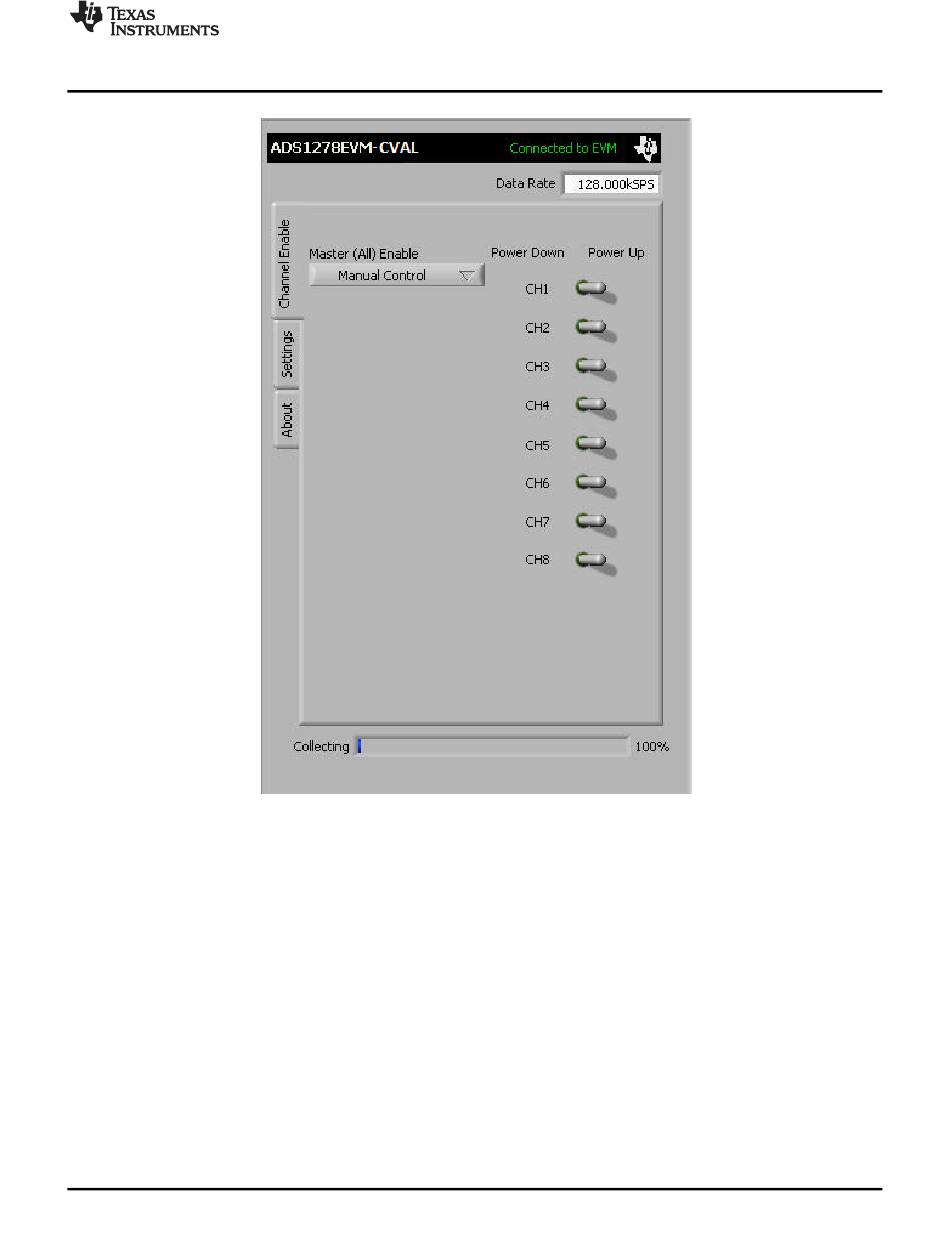

Figure 10. Channel Enable
ADS1278EVM-CVAL Evaluation Module User's Guide
Copyright © 2018, Texas Instruments Incorporated
Using the ADS1278EVM-CVAL Plug-in ADCPro
13
