12.10

Analogs

The NetGuardian LT G2 can have up to 2 analog channels. The first channel is dedicated to monitoring the power
input (channel is not used if build option was not selected). This channel supports the entire range of power inputs
that the NetGuardian LT G2 can support. The second channel is user defineable. It can monitor analog inputs
from 0V-4.5V (or can be shunted in hardware to measure current from 4-20mA). Each channel must be
individually configured to monitor data.
Note: Only analogs supported by the units hardware will appear in the NetGuardian LT G2's web browser
interface.

12.10.1Basic Configuration

Basic configuration for the NetGuardian LT G2's analog temperature sensors can be accomplished from the
Provisioning > Analogs menu. From this screen, you enable or disable the analog channels, select notification
devices, and set thresholds.
Id
Enab
Description
Notification devices

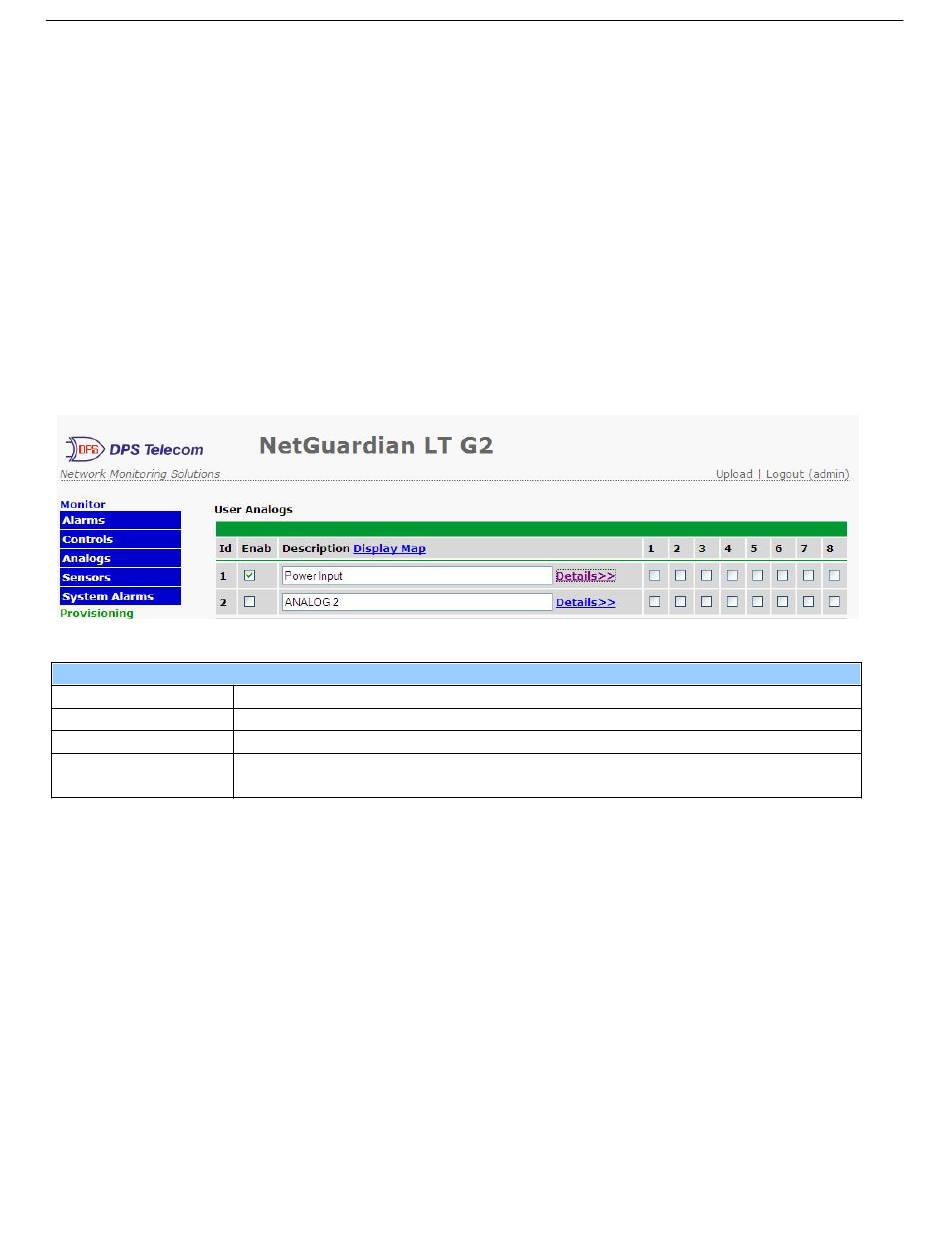

Fig.12.10.1.1 The basic Provisioning > Analogs menu
Analog Id number
Check this box to enable the analog
User-definable description for the analog channel.
Check which notification device(s), 1 through 8, you want to send alarm
notifications for that analog alarm.
