12.10.2Advanced Configuration

To access the Details configuration screen, click the Details>> on the right of the Description cell.
From the Details configuration screen, you can now select which temperature units you want to use, define
alarm "set" and "clear" descriptions, and define Qualification settings.
Record Freq
Deadband
On set
On clear
Qual. Time
(Qualification Time)
Qual. Type
(Qualification Type)
Units
Low ref
High ref
Thresholds
*
These values are gathered from your sensor. Keep in mind that the NetGuardian is trying to build a

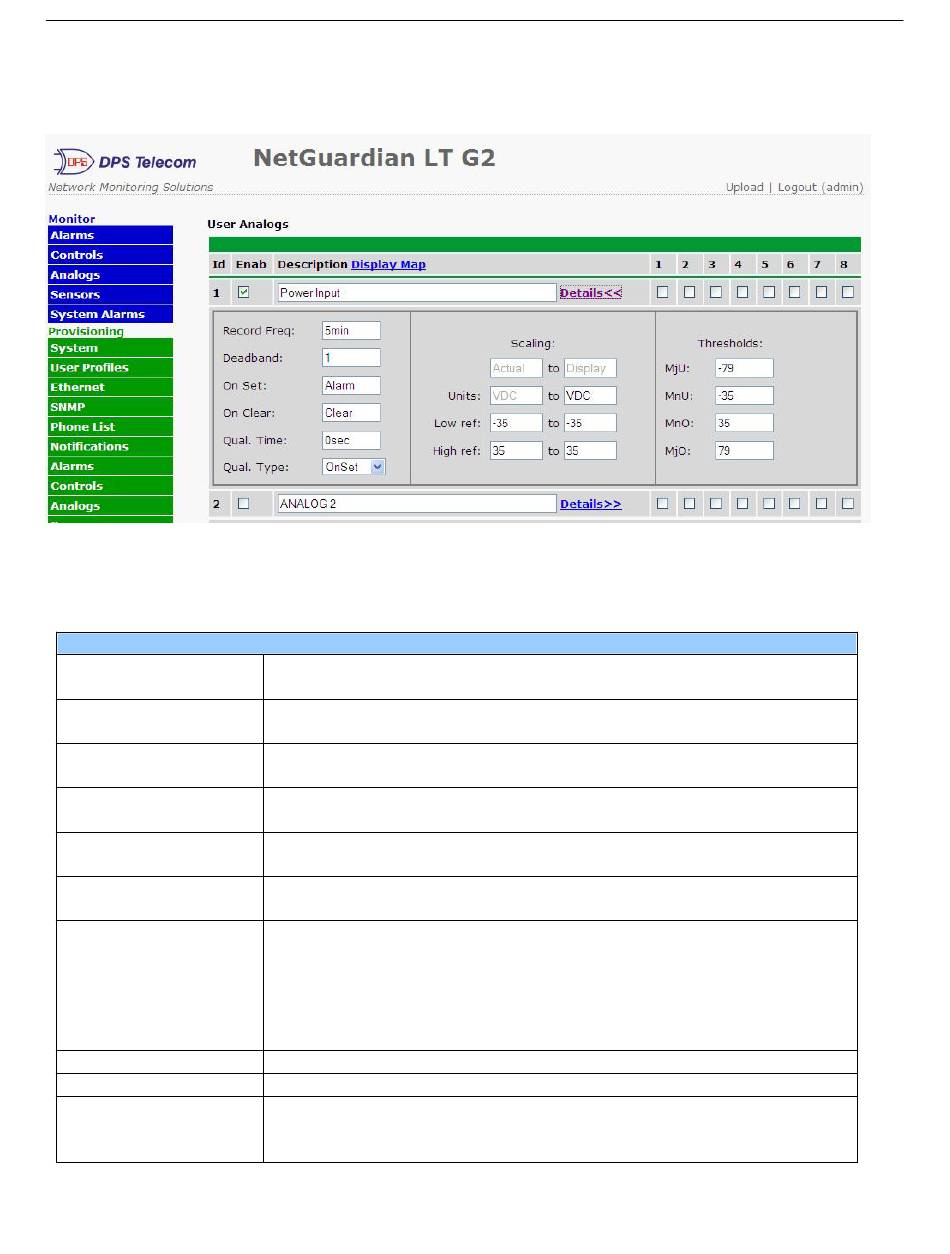

Fig.12.10.2.1 The Advanced Provisioning > Analogs menu
Aanalogs (Details>>)
The amount of time, in minutes(min) or seconds (s), between each log of
each analog value to history.
The amount (in volts) that the channel needs to go above or below a
threshold in order to cause an alarm.
User-definable description (condition) that will appear for the temperature
alarm on Set. Example: "Alarm"
User-definable description (condition) that will appear for the temperature
alarm Clear. Example: "Clear"
The length of time that must pass, without interruption, in order for the
condition to be considered an Alarm or a Clear.
Allows you to choose whether you want to apply the Qualification Time to
the alarm Set, Clear, or Both.
User-definable display units or optional choice between Fahrenheit and
Celsius temperatures. The most common are:
User-definable lower threshold settings
User-definable upper threshold settings
These settings are set to indicate the severity of the alarm depending on
which threshold values have been passed. Enter values for Major Under
(MjU0, Minor Under (MnU), Minor Over (MnO) and Major Over (MjO).
VDC = Voltage
%H = Humidity
F = Fahrenheit
C = Celsius
