1. Depending on your order options, you will can attach wall-mount flanges to both sides of the unit in one of two
ways:
a. Place the flange over the protruding screws and fasten it to the 3/8" hex nuts provided.
b. OR Fasten the flange to the NetGuardian LT with two of the 6/32 screws provided. (NOTE: Screws longer
than those provided may contact the internal components of the unit, adversely affecting its normal
operation.)
2. After flanges have been attached to the NetGuardian LT, mount the unit in the desired location with two
screws through each flange.

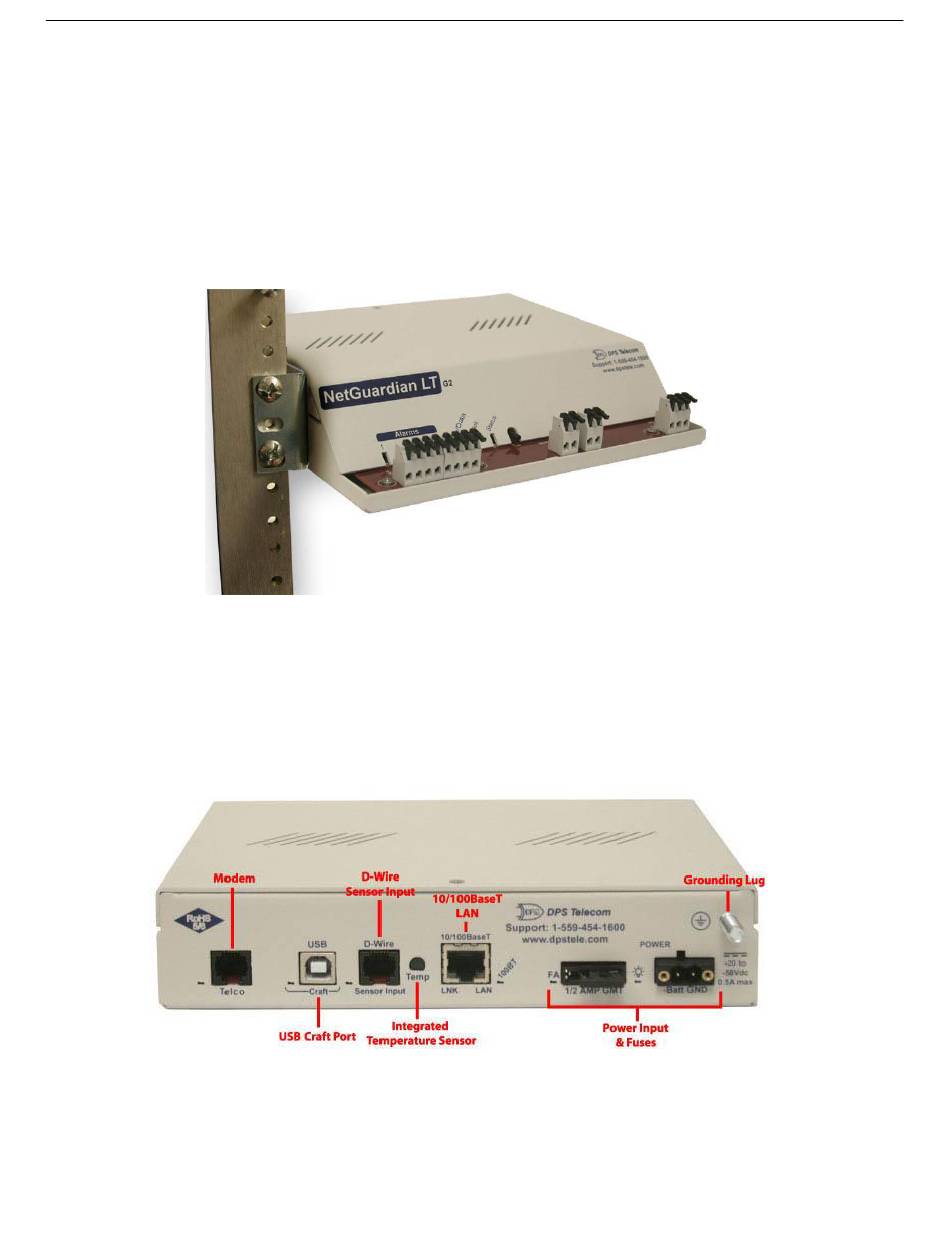

Fig. 5.3 The NetGuardian LT also mounts on your 19" or 23" equipment racks.
Rack-Mounting Instructions
The NetGuardian LT mounts onto one side of a 19" or 23" rack using the provided rack ear for either size. The ear
can be rotated 180 degrees during installation to adjust the position of the unit relative to the rack. Attach the
appropriate ear to the rack in the desired location.
5.2
NetGuardian LT G2 Back Panel
Fig. 5.2.1 NetGuardian LT G2 back panel connections
