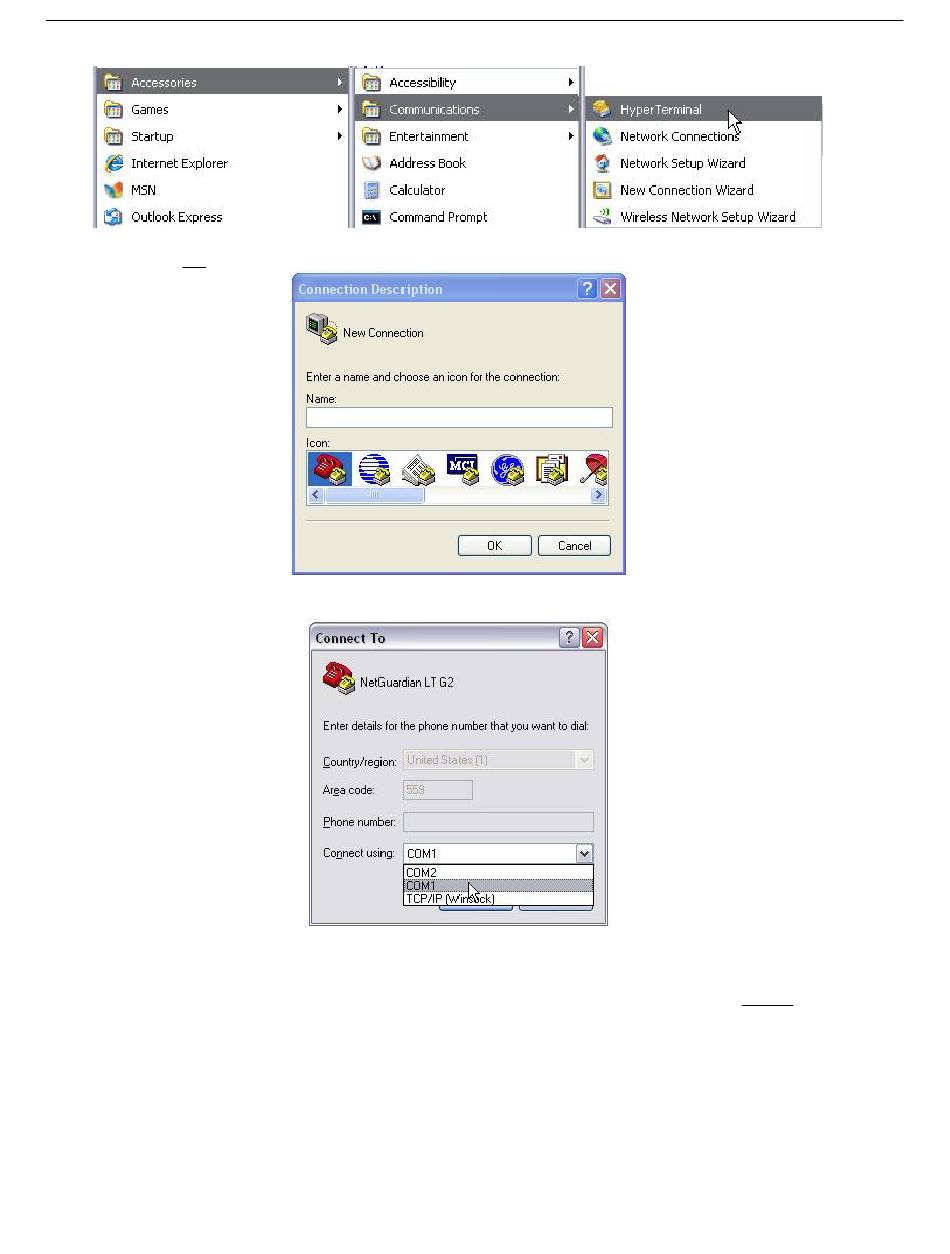

13. At the Connection Description screen, enter a name for this connection. You may also select an icon. The
name and icon do not affect your ability to connect to the unit.
14. At the Connect To screen, use the drop-down menu to select the COM port you found earlier in the
Device Manager.
15. Select the following COM port options:
• Bits per second: 9600
• Data bits: 8
• Parity: None
• Stop bits: 1
• Flow control: None
Once connected, you will see a blank, white
HyperTerminal screen. Press Enter to activate the
configuration menu.
16. When prompted, enter the default user name
admin and password dpstelecom. NOTE: If you
don't receive a prompt for your user name and
password, check the Com port you are using on your
PC and make sure you are using the cable provided.
Additional cables can be ordered from DPS
Telecom.
