Tools Needed
To install the NetGuardian, you'll need the following tools. NOTE: To install the NetGuardian LT G2 in one of the
wall-mount configurations, you will also require a wrench or driver capable of tightening 3/8" hex nuts.
Wire Strippers
5
Installation
5.1
Mounting
The compact NetGuardian LT occupies only half the width of a standard rack unit. 19" rack ears are supplied with
the NetGuardian LT. The NetGuardian LT mounts in a 19" or 23" rack, and can be mounted on the right or left, or
rear mount locations, as shown below.

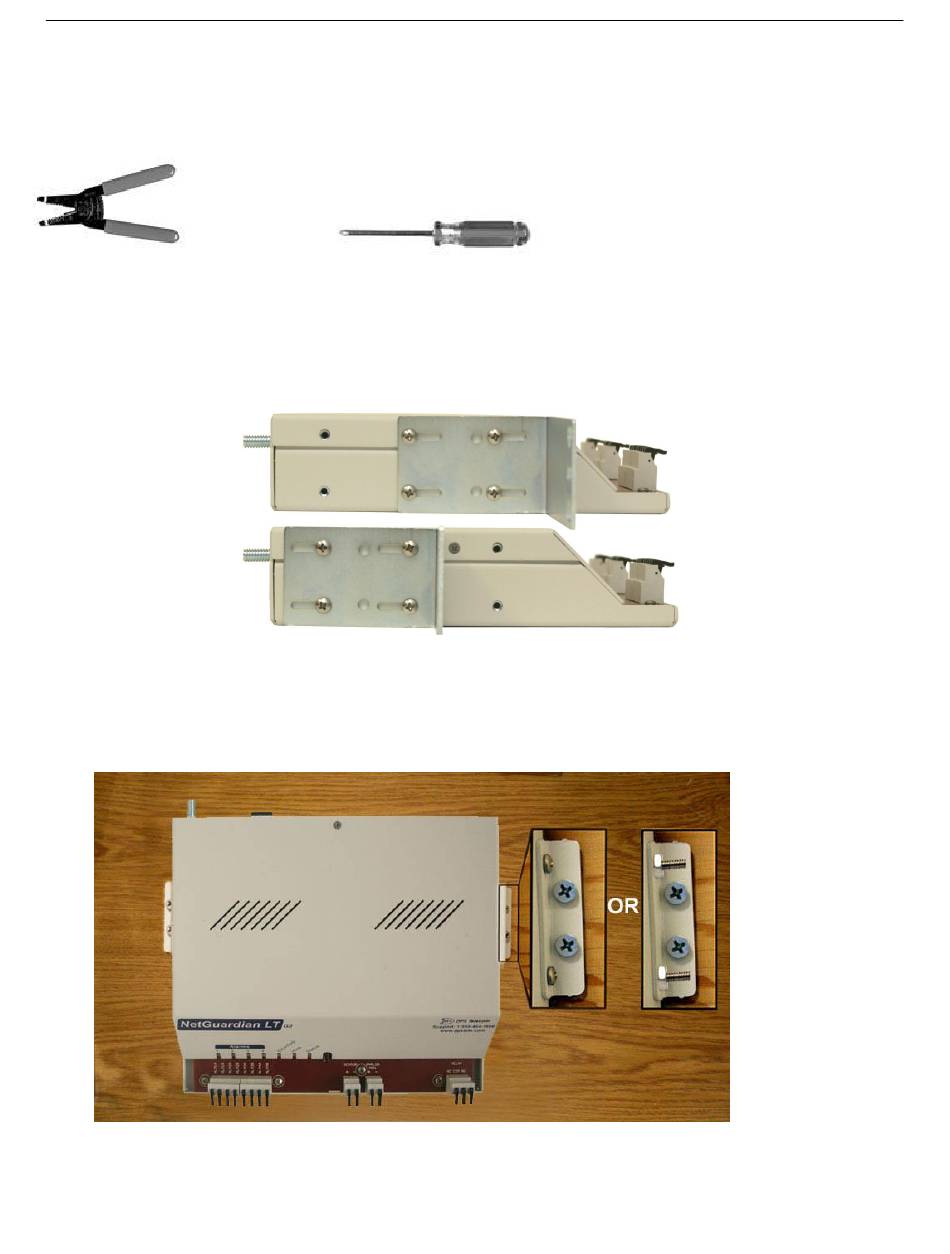

Fig 5.2 Use the included wall mount bracket to mount the NetGuardian LT vertically on the wall.
Wall-Mounting Instructions
The rack ears can be rotated 90° for wall mounting or 180º for other mounting options (not shown).
Phillips No. 2 Screwdriver (For rack mounting)
Fig. 5.1 The NetGuardian LT can be front or rear-mounted
