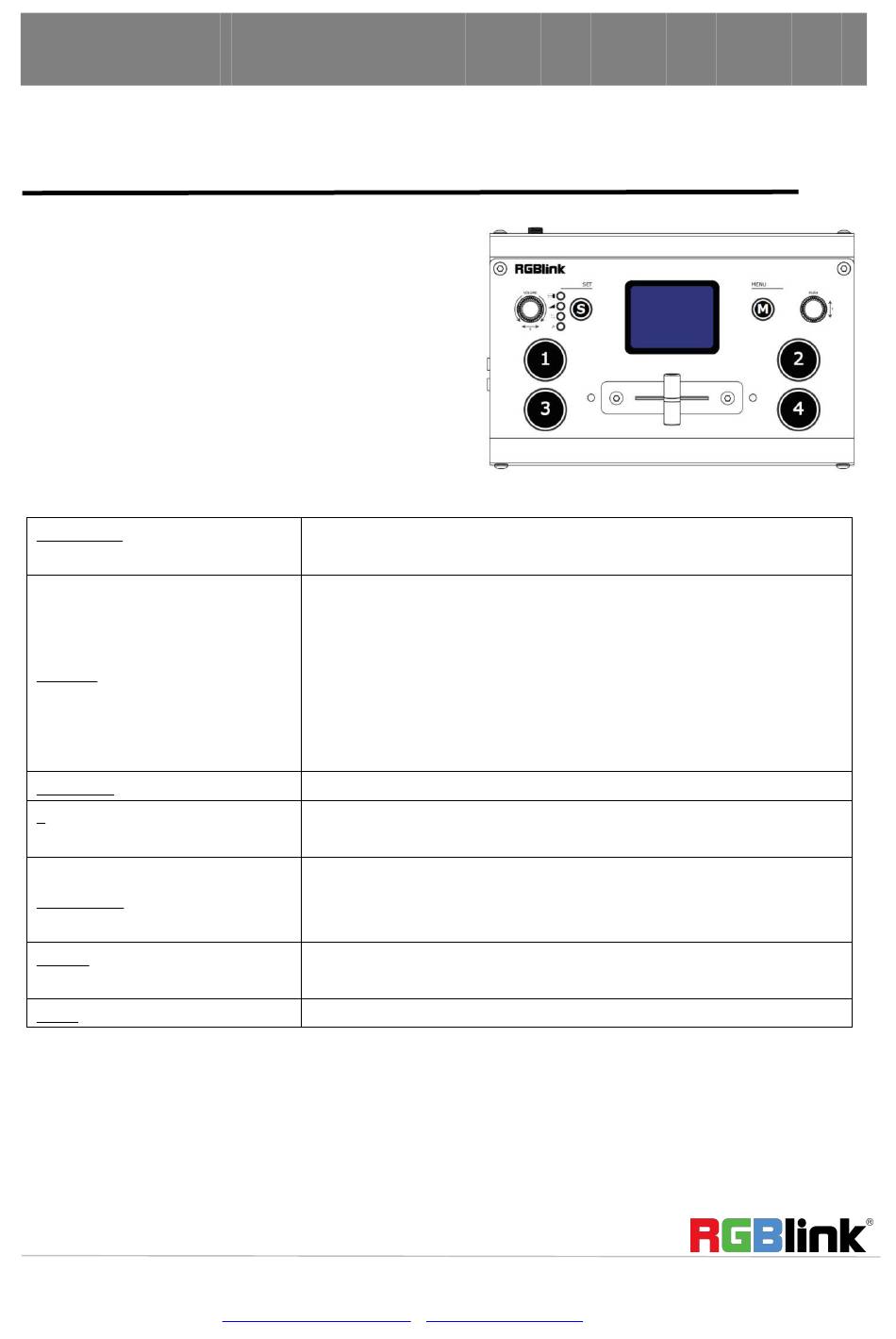

Hardware Orientation

Front Panel

TFT display
PUSH/Y
M( menu)
S
VOLUME/X
1,2,3,4
T-Bar
© Xiamen RGBlink Science & Technology Co., Ltd.
Ph: +86 592 5771197 |
To display 4 inputs and menu
1. Knob, turn to select menu item, push to confirm
2. Work as a quick button to switch HDMI Out between 6-Picture
PVW and PGM when TFT is under the state of previewing 4 inputs.
3. On mini+, control camera lens position, moving up and down
under PTZ control menu-Pos.
4. On mini+, control camera lens zoom in and out under PTZ control
menu-Zoom.
Menu and Back Button
Function Select button, to select Transition effect, Switch Mode (Fast
or T-Bar), PIP and FX (reserved licensed feature for future)
1. Turn to adjust volume of PGM
2. On mini+, control camera lens move left and right under PTZ
control menu.
4 inputs, red is on air (PGM), static green is signal standing by to
switch, flash green is the ready to be switched
Manual switch, push to left end or right end to switch signal to PGM.
