RGBlink Mini Quick Start Manual page 22

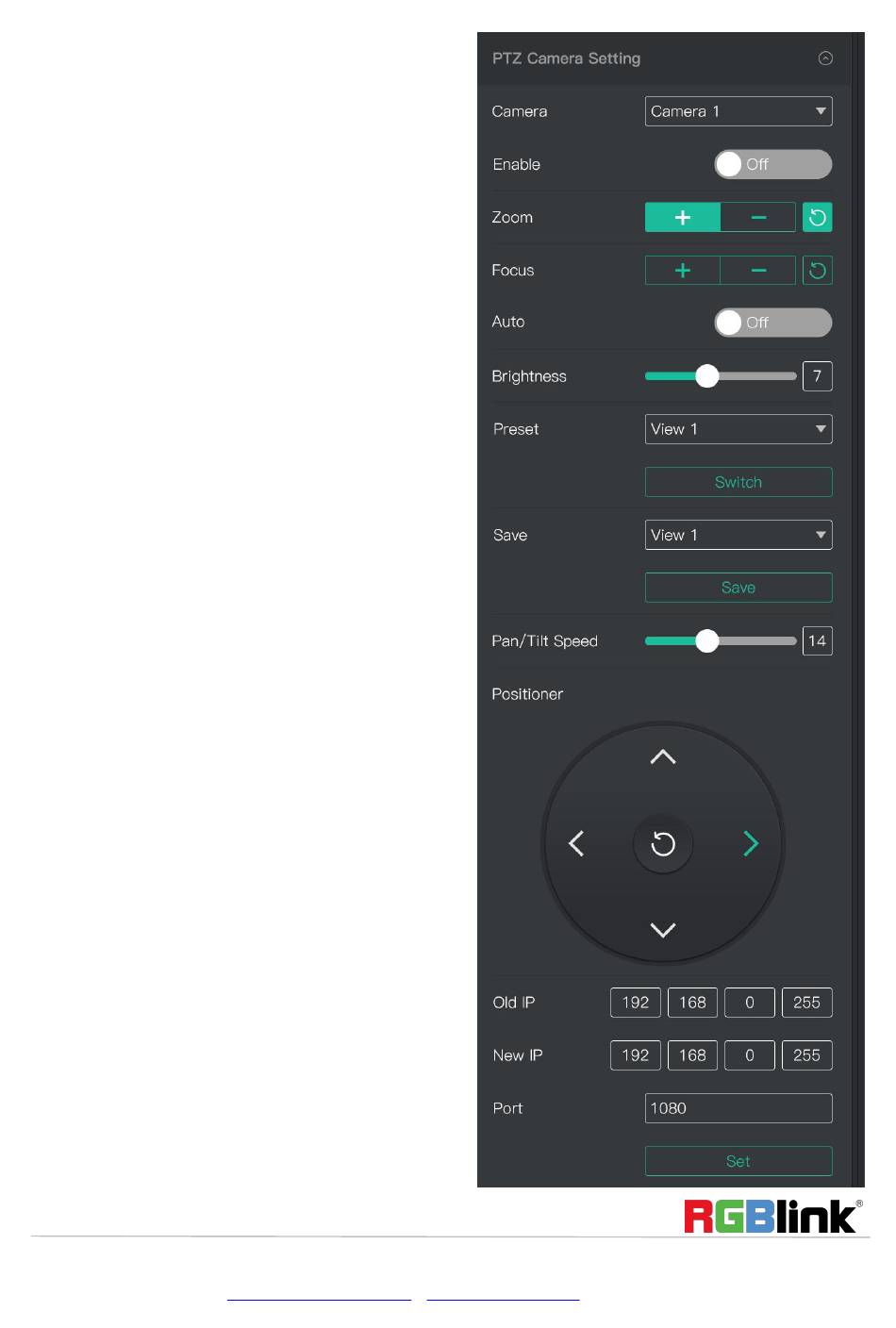

PTZ Camera Setting
Camera：choose camera 1~8
Enable：choose On to enable the LAN
communication of the chosen camera.
Zoom：Click + - to Zoom in and out
Focus：Slide Auto to On usually
Brightness：Click + - to adjust
Preset：Load position and zoom setting of camera
lens from View 1~20
Save: Save position and zoom setting of camera
lens to View 1~20
Pan/Tilt Speed：Adjust the lens moving speed.
Positioner：to adjust the lens left right up down
position
OLD IP：the current IP address of the camera
New IP：the new IP address just typed in.
Port: Set port number for PTZ camera. PTZ control
support Visca protocol, port number is 1259 by
default. mini+ support control PTZ cameras in
same IP address with different port number.
Note: Not all cameras can be set IP and port
number on XPOSE, for those cameras, IP and port
number set can be done on web.
