3. Slide the outer slide rail bracket assembly onto the side rack-mounting rail so that the round hole
adapter is over the rack rail.
n
Have someone help you hold the slide rails level while you are positioning them in the rack.

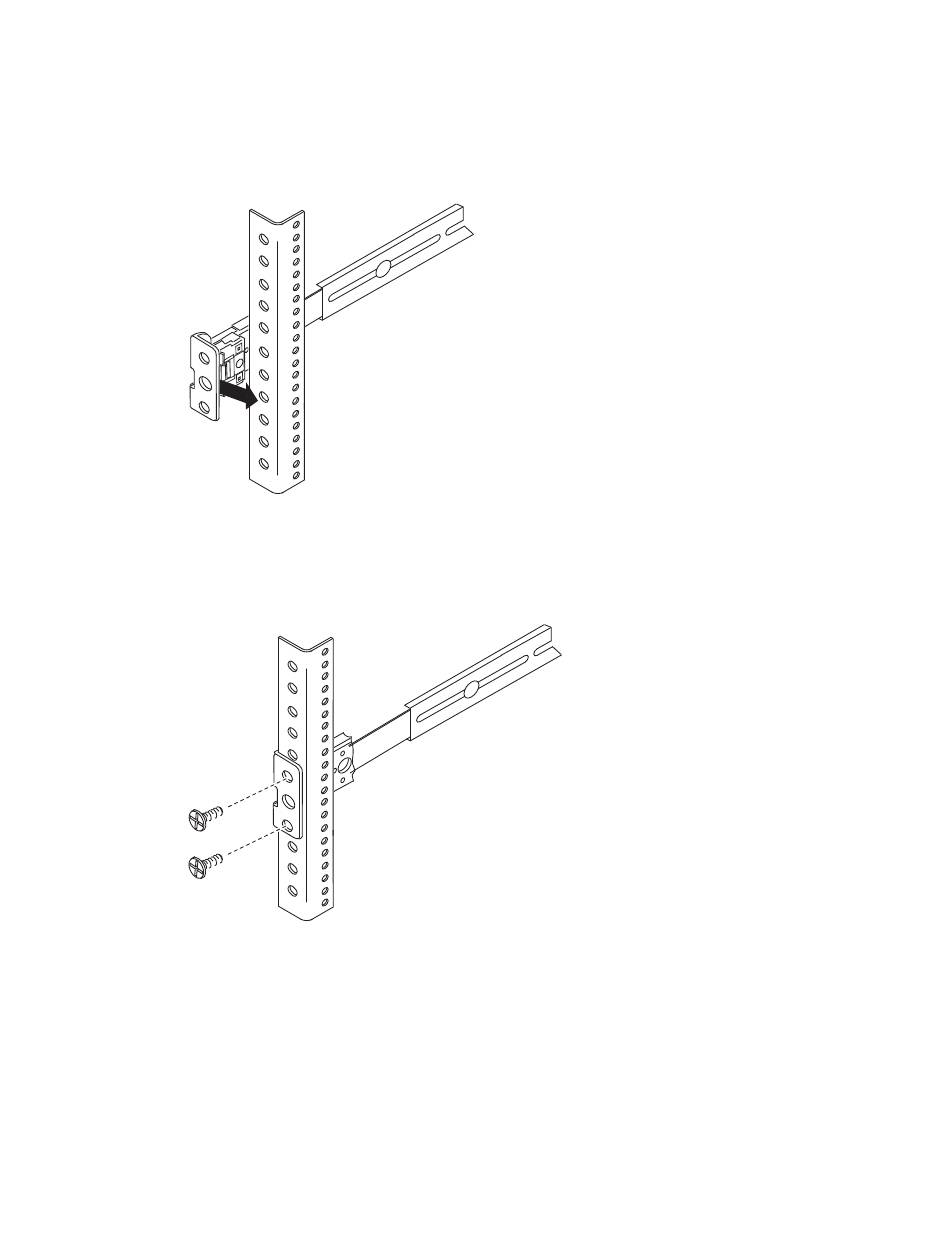

Insert the Outer Slide Rail to the Front Rack-Mounting Rail
4. Insert the small (10-32) Phillips-head screws through the round-hole adapter and mounting rail,
into the bracket. If the rack holes are different size, you must supply your own screws.
Securing the Outer Slide Rail to the Rack-Mounting Rail
5. Adjust the outer slide rail bracket assembly to the rear mounting rail.
6. Secure the rear outer slide rail bracket assembly to the rear mounting rail as you did for the front
rack-mounting rail.
7. Repeat this procedure to attach the second outer slide rail on the other side of the rack.

Securing the File Gateway Server in a Rack

c
Have someone help you lift the File Gateway server while you are positioning it into the slide
rails.
19
Rack Mounting the File Gateway
