Separating the Slide Rails
3. Pull and separate the two halves.
4. Repeat these steps to separate the second slide rail.

Attaching Inner Slide Rails to the File Gateway Server

Attach the inner slide rails that were separated from the outer slide rails to the File Gateway server.
To attach the inner slide rails:
1. Position the inner slide rail against the side of the server so that the screw holes are toward the
rear of the server, and the front of the slide rail fits over the tab at the front of the server.
2. Secure the inner slide rail to the server with two of the small screws.
n
The rail kit might contain more screws than needed.

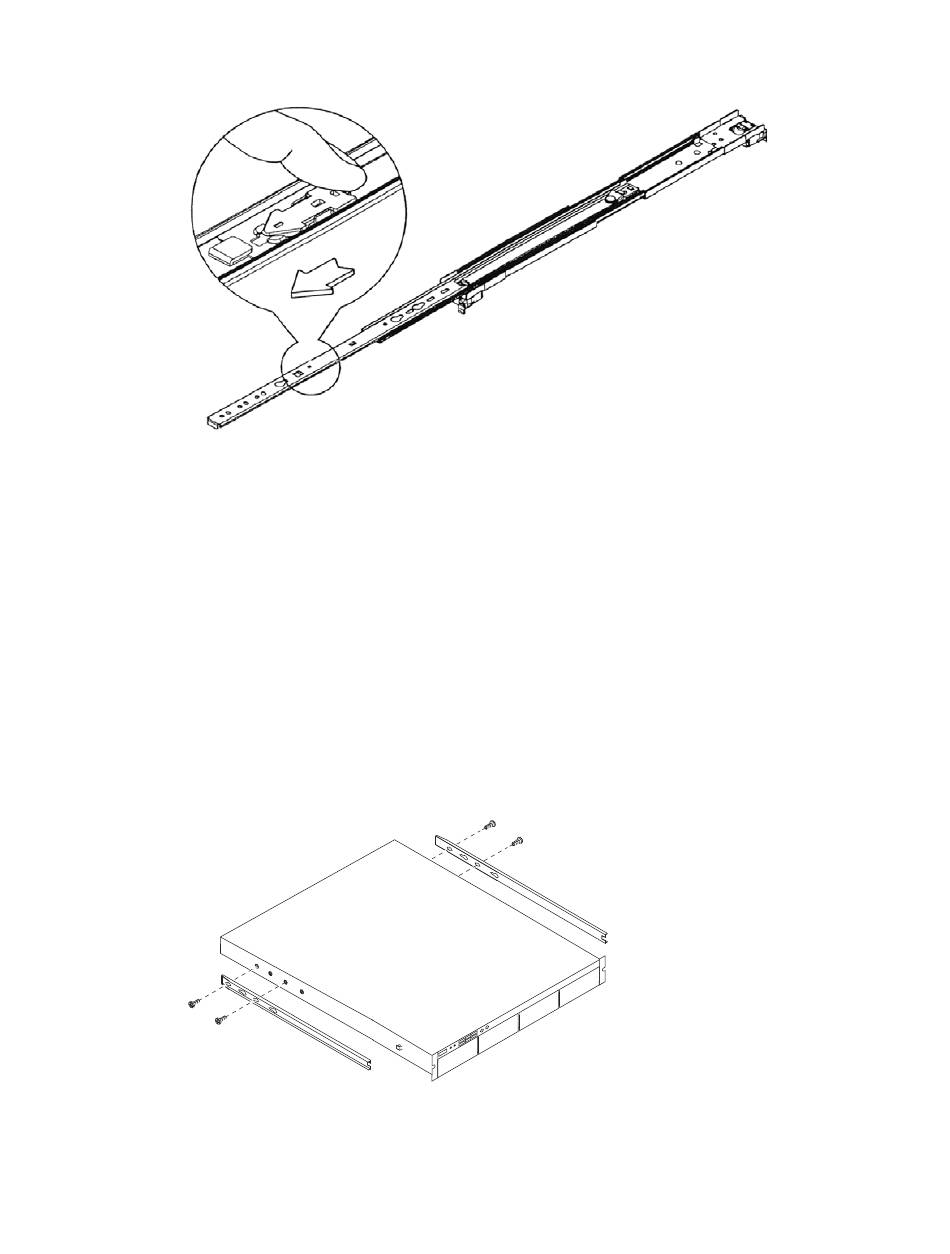

Attaching the Inner Slide Rails
3. Repeat this procedure to attach the other inner slide rail on the other side of the server.
16
