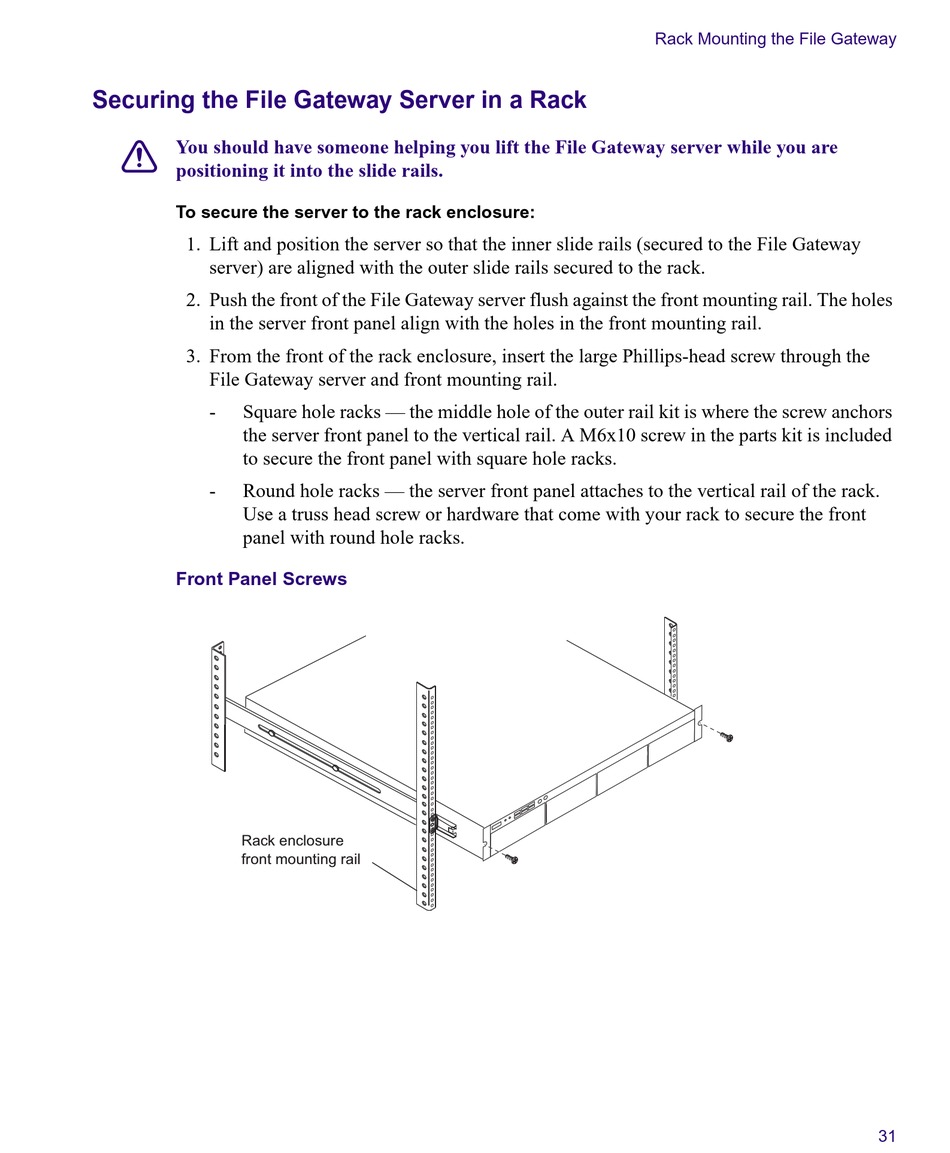

Securing the File Gateway Server in a Rack

c
You should have someone helping you lift the File Gateway server while you are
positioning it into the slide rails.
To secure the server to the rack enclosure:
1. Lift and position the server so that the inner slide rails (secured to the File Gateway
server) are aligned with the outer slide rails secured to the rack.
2. Push the front of the File Gateway server flush against the front mounting rail. The holes
in the server front panel align with the holes in the front mounting rail.
3. From the front of the rack enclosure, insert the large Phillips-head screw through the
File Gateway server and front mounting rail.
- Square hole racks — the middle hole of the outer rail kit is where the screw anchors
the server front panel to the vertical rail. A M6x10 screw in the parts kit is included
to secure the front panel with square hole racks.
- Round hole racks — the server front panel attaches to the vertical rail of the rack.
Use a truss head screw or hardware that come with your rack to secure the front
panel with round hole racks.
Front Panel Screws
Rack enclosure
front mounting rail
Rack Mounting the File Gateway
