• For normal operation, maintain approximately 2 feet (0.6 meters) of open space in front of and
behind the rack. This allows free access to the components in the rack for operating changes or
adjustments. For service, maintain approximately 3 feet (1 meter) of open space in front of the
rack and 2 feet (0.6 meters) of open space behind the rack. This allows for the removal of any
component that needs to be replaced.
• Allow at least 0.5 in (1.3 cm) clearance on top of the enclosure for cover removal.
w
To ensure the stability of the rack enclosure, install the heaviest equipment in the lower sections
of the rack enclosure. Install lighter equipment in the middle and upper sections.
c
For information about power specification and dimensions see
page 61.

Positioning the server in the Rack

t
Select a position in the rack where the File Gateway server is at the proper baseline position.

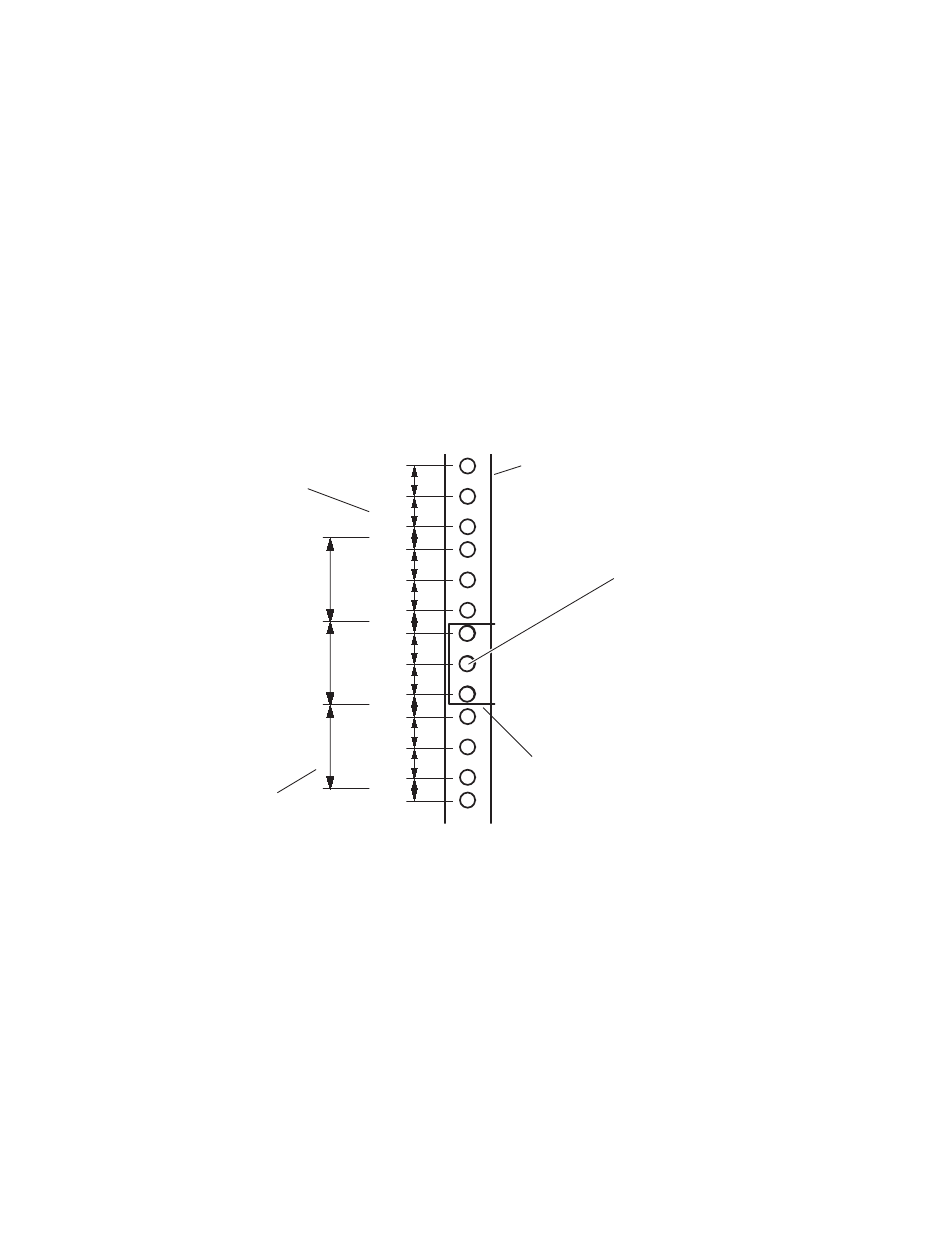

Positioning the File Gateway Server
Rack mounting rail
hole spacing
EIA rack unit

Separating the Slide Rails

Separate the slide rails and attach the inner "movable" section to the File Gateway server and the
outer "fixed" section to the rack rails.
To separate the slide rails:
1. Slide the slide rail completely open.
2. Press the spring clip on the inner slide rail as shown in the illustration.
n
The spring clip is shown in the closeup in the following figure.
5/8 in
5/8 in
1/2 in
5/8 in
1 3/4 in 3U
5/8 in
1/2 in
5/8 in
1 3/4 in 2U
5/8 in
1/2 in
5/8 in
1 3/4 in 1U
5/8 in
1/2 in
"Specifications and Notices" on
Rack mounting rail
System Director
front panel mounting hole
Baseline position is between
two 1/2inch holes.
15
Rack Mounting the File Gateway
