Avid Technology NEXIS File Gateway Setup And User Manual page 23

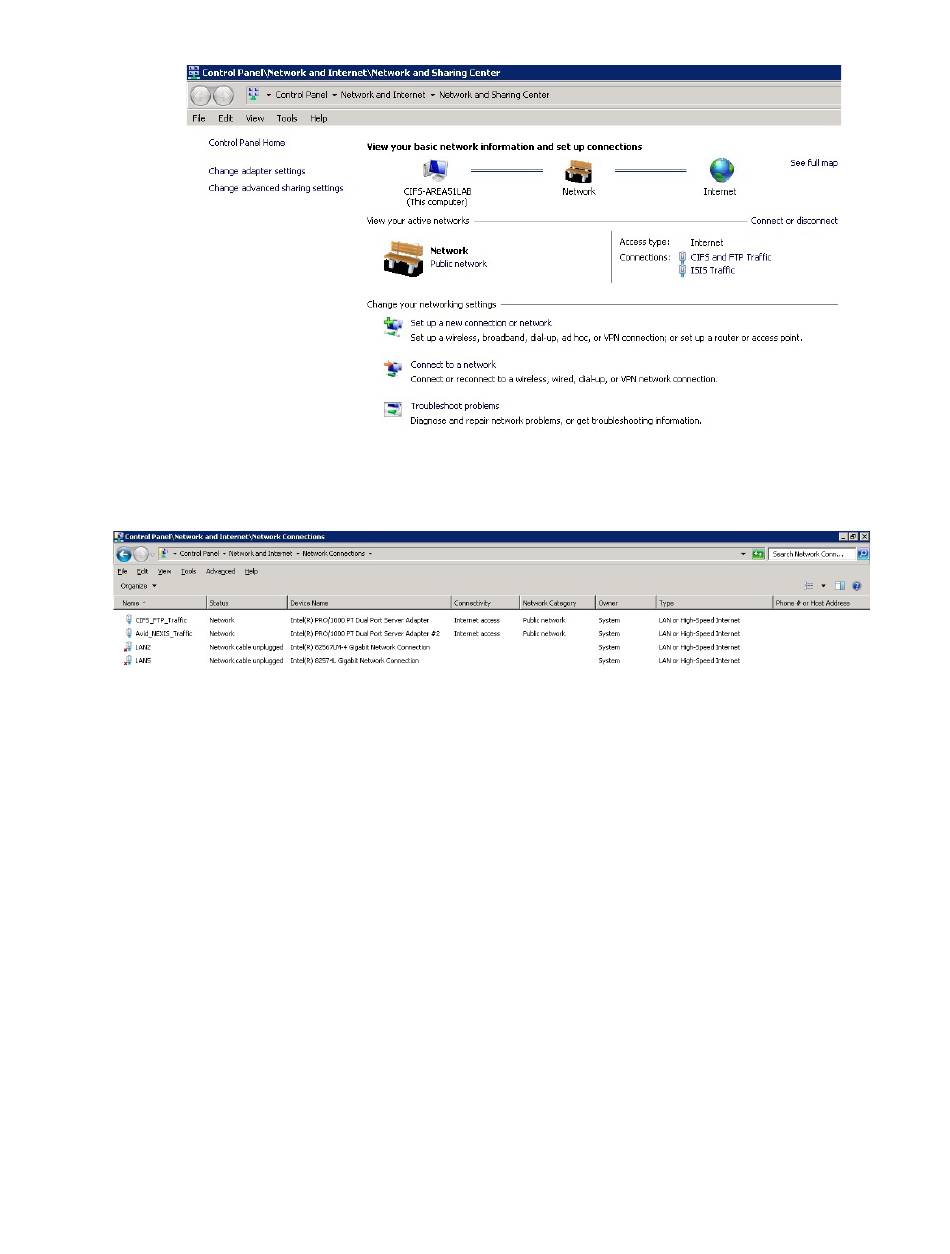

2. Click "Change adapter settings" on the left side of the window.
The Control Panel/Network Connections window opens.
3. Right-click Local Area Connect 2 and select Rename.
4. Rename the connection to CIFS_FTP Traffic.
5. Right-click the CIFS_FTP Traffic connection and select Properties.
a. In the Properties dialog box, double-click Internet Protocol version 4 (TCP/IPv4).
b. Select "Use the following IP address:" and enter the following:
— An IP address (172.20.115.12 used in the following example)
— A subnet mask (255.255.255.128 used in the following example)
— A default gateway (172.20.115.1 used in the following example)
c. Select "Use the following DNS server addresses:" and enter the following:
— Preferred DNS server (172.20.110.5 used in the following example)
— Alternate DNS server (172.16.4.235 used in the following example)
d. Click OK.
6. Deselect "File and Printer Sharing for Microsoft Networks."
7. Right-click Local Area Connect 3 and select Rename.
8. Rename the connection to Avid NEXIS Traffic.
23
Network Connection
