Attaching the Outer Rails to a Square-Hole Rack

If your mounting rails have round holes, see
page 18.
To attach the outer slide rails to the rack with square holes:
1. Align the outer slide rail bracket assembly with the front rack-mounding holes.
n
Have someone help you hold the slide rails level while you are positioning them in the rack.
2. Slide the square tabs through the holes in the front, vertical rack-mounting rail.

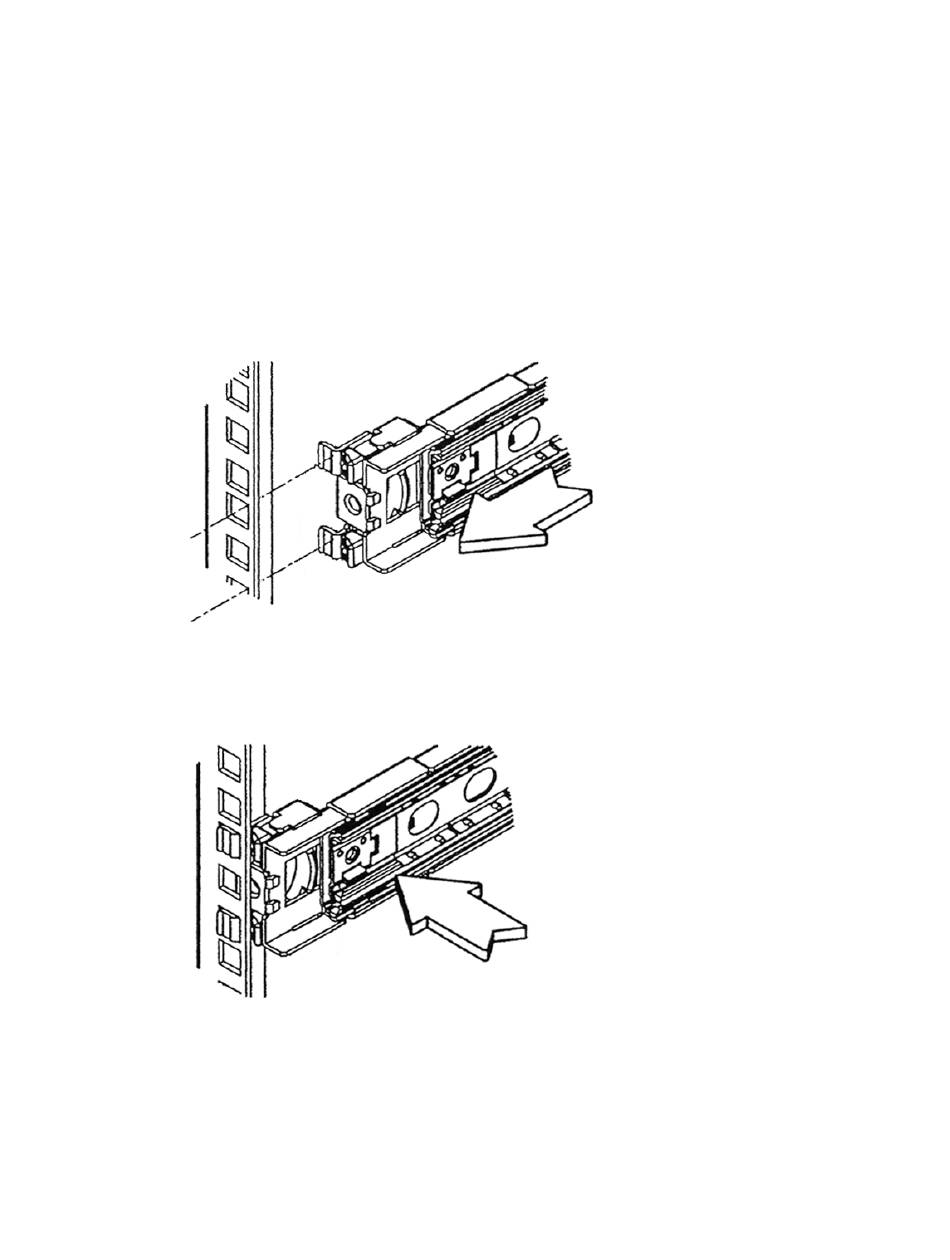

Positioning the Outer Slide Rail with the Front Rack-Mounting Rail
3. Push the outer rail towards the outside of the rack, to secure the outer rail in place
Insert the Outer Slide Rail to the Front Rack-Mounting Rail
4. Adjust the outer slide rail bracket assembly to the rear mounting rail.
5. Secure the rear outer slide rail bracket assembly to the rear mounting rail as you did for the front
rack-mounting rail.
