2 Connecting the ISIS Equipment

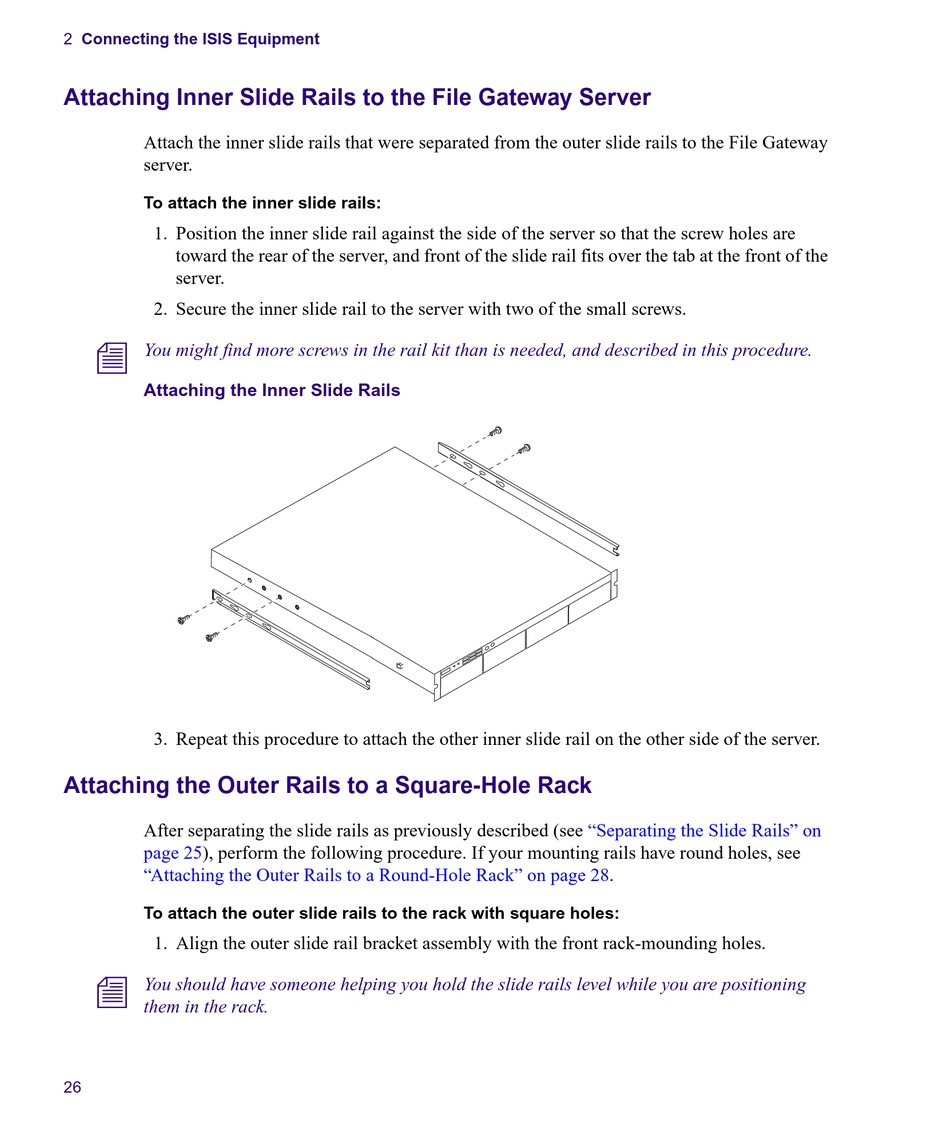

Attaching Inner Slide Rails to the File Gateway Server

Attach the inner slide rails that were separated from the outer slide rails to the File Gateway
server.
To attach the inner slide rails:
1. Position the inner slide rail against the side of the server so that the screw holes are
toward the rear of the server, and front of the slide rail fits over the tab at the front of the
server.
2. Secure the inner slide rail to the server with two of the small screws.
n
You might find more screws in the rail kit than is needed, and described in this procedure.
Attaching the Inner Slide Rails
3. Repeat this procedure to attach the other inner slide rail on the other side of the server.

Attaching the Outer Rails to a Square-Hole Rack

After separating the slide rails as previously described (see
page 25), perform the following procedure. If your mounting rails have round holes, see
"Attaching the Outer Rails to a Round-Hole Rack" on page
To attach the outer slide rails to the rack with square holes:
1. Align the outer slide rail bracket assembly with the front rack-mounding holes.
n
You should have someone helping you hold the slide rails level while you are positioning
them in the rack.
26
"Separating the Slide Rails" on
28.
