2 Connecting the ISIS Equipment

Positioning the server in the Rack

The following information helps you decide where to install the File Gateway server in the
rack.
To position the File Gateway server in the rack enclosure:
t
Select a position in the rack where the File Gateway server is at the proper baseline
position.

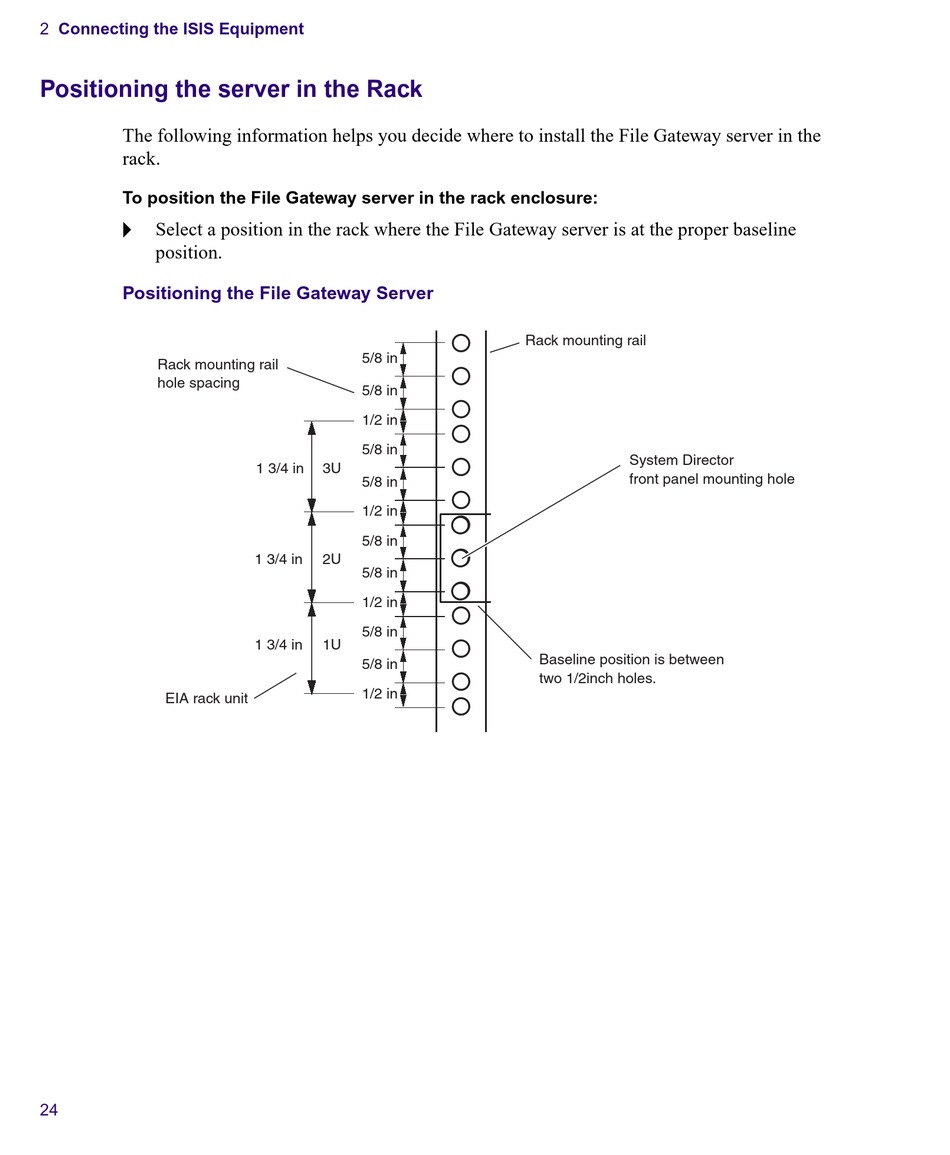

Positioning the File Gateway Server
Rack mounting rail
hole spacing
EIA rack unit
24
5/8 in
5/8 in
1/2 in
5/8 in
1 3/4 in 3U
5/8 in
1/2 in
5/8 in
1 3/4 in 2U
5/8 in
1/2 in
5/8 in
1 3/4 in 1U
5/8 in
1/2 in
Rack mounting rail
System Director
front panel mounting hole
Baseline position is between
two 1/2inch holes.
