Stryker C-Mount User Insert page 6

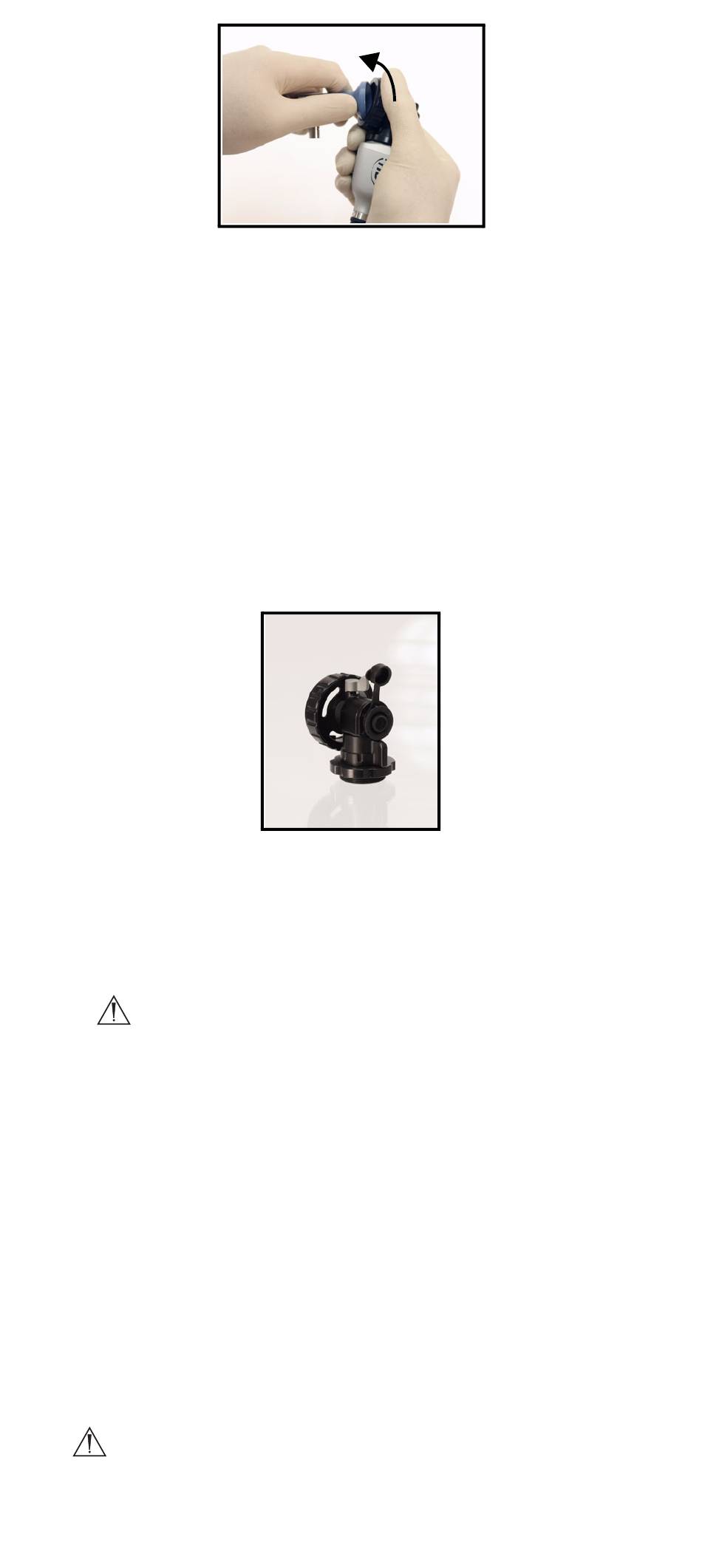

Figure 6: Locking the coupler
4. Release the endobody cover to secure the scope.
5. Unlock the locking lever.
6. Twist the rotating endobody to the desired position and lock the
locking lever.
7. With the camera console turned on, rotate the focusing ring to
establish a sharp focus.
8. The image may also be viewed from the beamsplitter eyepiece.
a. Remove the eyepiece rubber cover.
b. View the image closely through the eyepiece.
c. Replace the rubber cover after viewing.
Figure 7: Viewing through the coupler
Cleaning
WARNING
1. Holding the coupler so the camera end points toward you, turn the
focusing ring clockwise until it stops. (For autoclavable couplers only)
2. Open the rubber eyepiece cover (For rotating beamsplitter couplers
only).
3. Rinse the coupler in lukewarm tap water. Use a mild enzymatic
detergent and a soft brush to remove resistant debris and bioburden
from all surfaces.
4. Rinse off all soap residue with water.
5. Clean glass surfaces with alcohol.
6. Dry the coupler thoroughly with a soft towel or gauze surgical sponge.
Disinfection
Caution
Separate the camera head, coupler, and scope prior to
disinfection or sterilization. Refer to the camera head and
scope product manuals for disinfection instructions.
4
The coupler must be cleaned and sterilized prior to
the first use and after every subsequent use.
(a)
(b)
