Stryker C-Mount User Insert page 5

2. Depress the endobody clamp with your thumb and insert a scope into
the scope end of the coupler.
3. Release the endobody clamp to secure the scope.
4. With the camera console turned on, rotate the focusing ring to
establish a sharp focus.
Rotating C-Mount Models
1. Screw the camera end into the camera head
until it forms a tight seal.
2. Lock the locking lever (see Figure 3a).
3. Depress the endobody clamp with your
thumb and insert a scope into the scope
end of the coupler.
4. Release the endobody clamp to secure the
scope.
5. Unlock the locking lever (see Figure 3a).
6. Twist the rotating endobody to the desired position and lock the
locking lever.
7. With the camera console turned on, rotate the focusing ring to
establish a sharp focus.
Rotating Beamsplitter C-Mount Models
1. Screw the camera end into the camera head until it aligns with the
camera. (See Figure 4). Rotate the lock ring until it forms a tight seal.

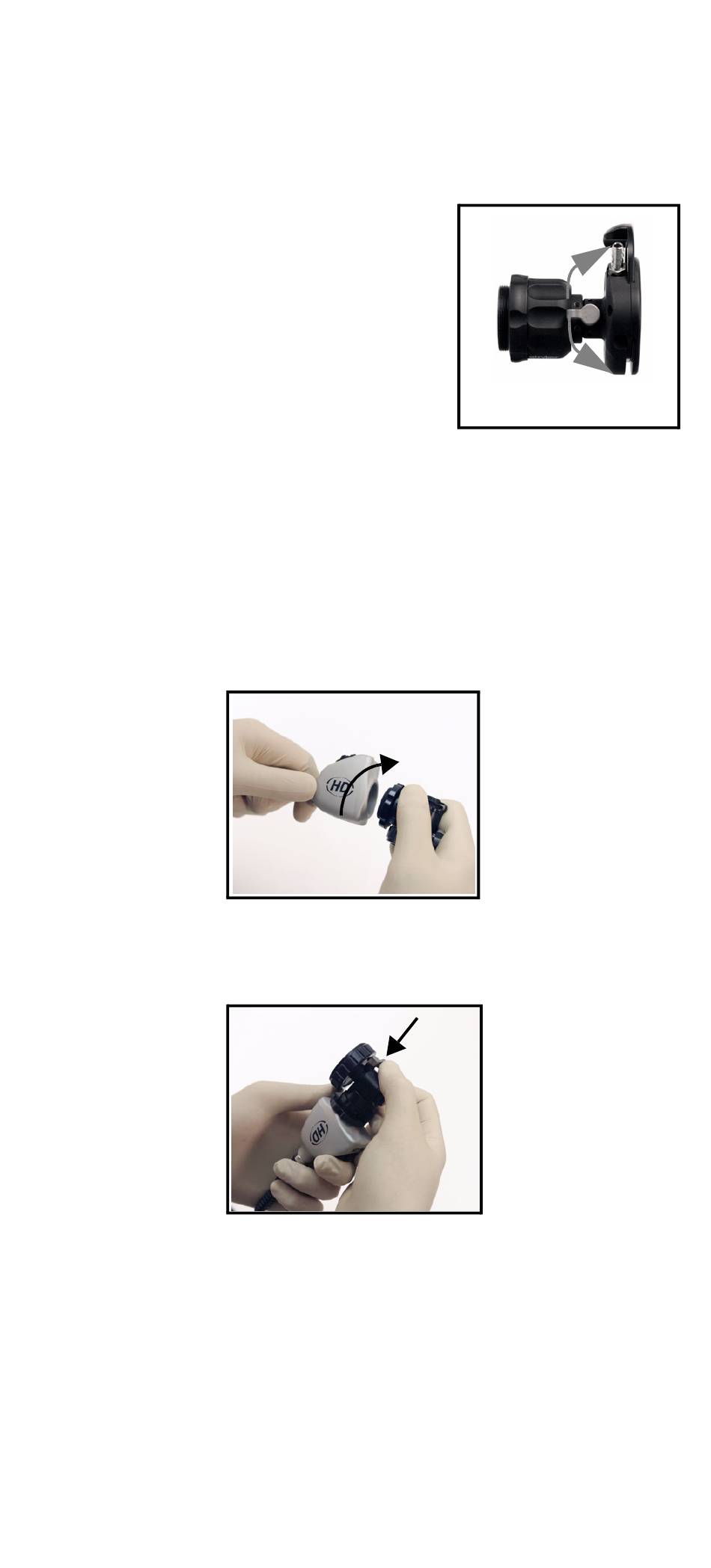

Figure 4: Attaching the coupler
2. Lock the locking lever (see Figure 5).
Figure 5: Figure : Locking the coupler
3. Twist the endobody cover to open it and insert an endoscope eyepiece
into the scope end of the coupler. (See figure 6).
Unlock
Lock
Figure 3a
3
