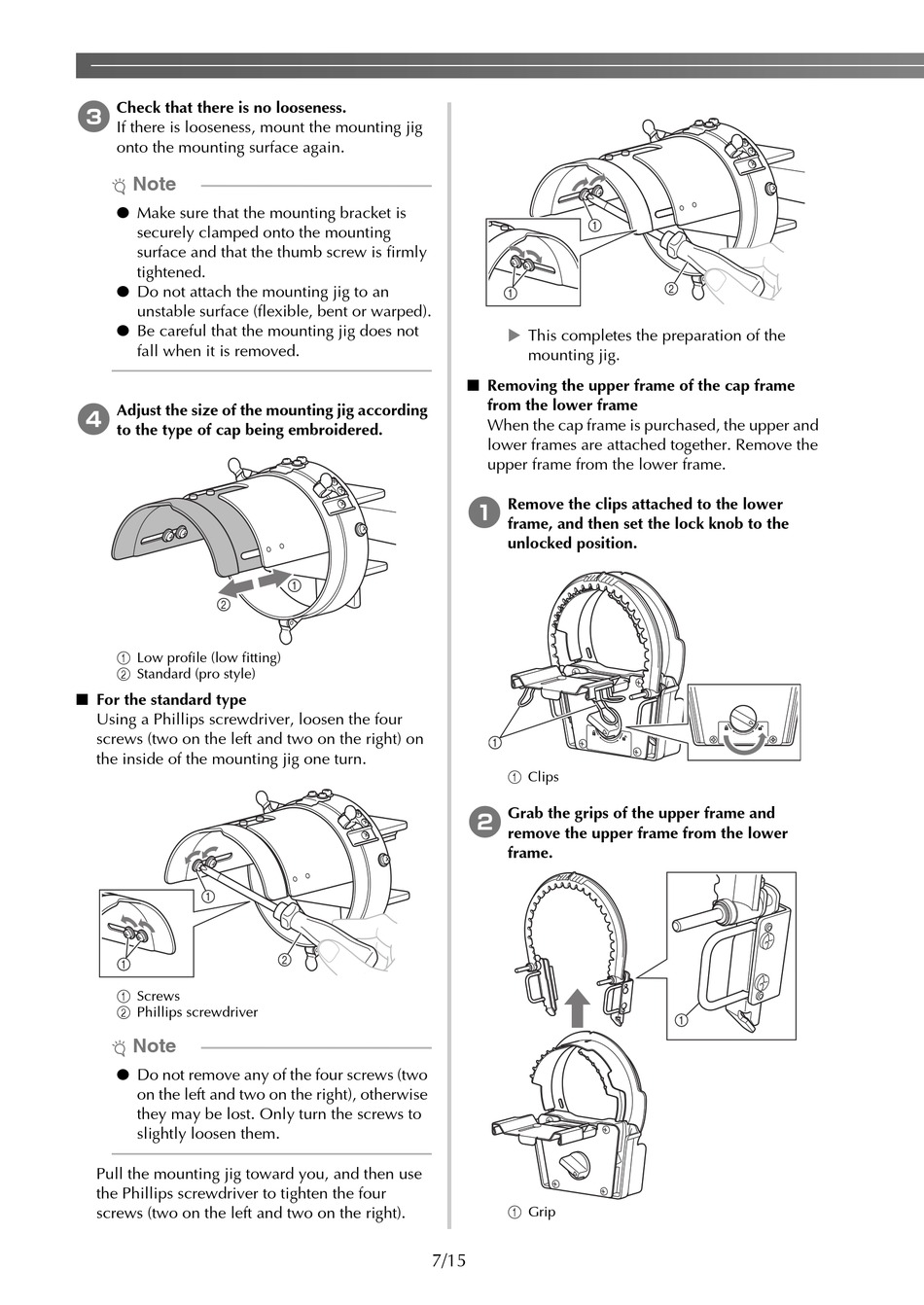

3 Check that there is no looseness.
If there is looseness, mount the mounting jig
onto the mounting surface again.
Note
● Make sure that the mounting bracket is
securely clamped onto the mounting
surface and that the thumb screw is firmly
tightened.
● Do not attach the mounting jig to an
unstable surface (flexible, bent or warped).
● Be careful that the mounting jig does not
fall when it is removed.
4 Adjust the size of the mounting jig according
to the type of cap being embroidered.
1 Low profile (low fitting)
2 Standard (pro style)
■ For the standard type
Using a Phillips screwdriver, loosen the four
screws (two on the left and two on the right) on
the inside of the mounting jig one turn.
1 Screws
2 Phillips screwdriver
Note
● Do not remove any of the four screws (two
on the left and two on the right), otherwise
they may be lost. Only turn the screws to
slightly loosen them.
Pull the mounting jig toward you, and then use
the Phillips screwdriver to tighten the four
screws (two on the left and two on the right).
This completes the preparation of the
mounting jig.
■ Removing the upper frame of the cap frame
from the lower frame
When the cap frame is purchased, the upper and
lower frames are attached together. Remove the
upper frame from the lower frame.
1 Remove the clips attached to the lower
frame, and then set the lock knob to the
unlocked position.
1 Clips
2 Grab the grips of the upper frame and
remove the upper frame from the lower
frame.
1 Grip
7/15
