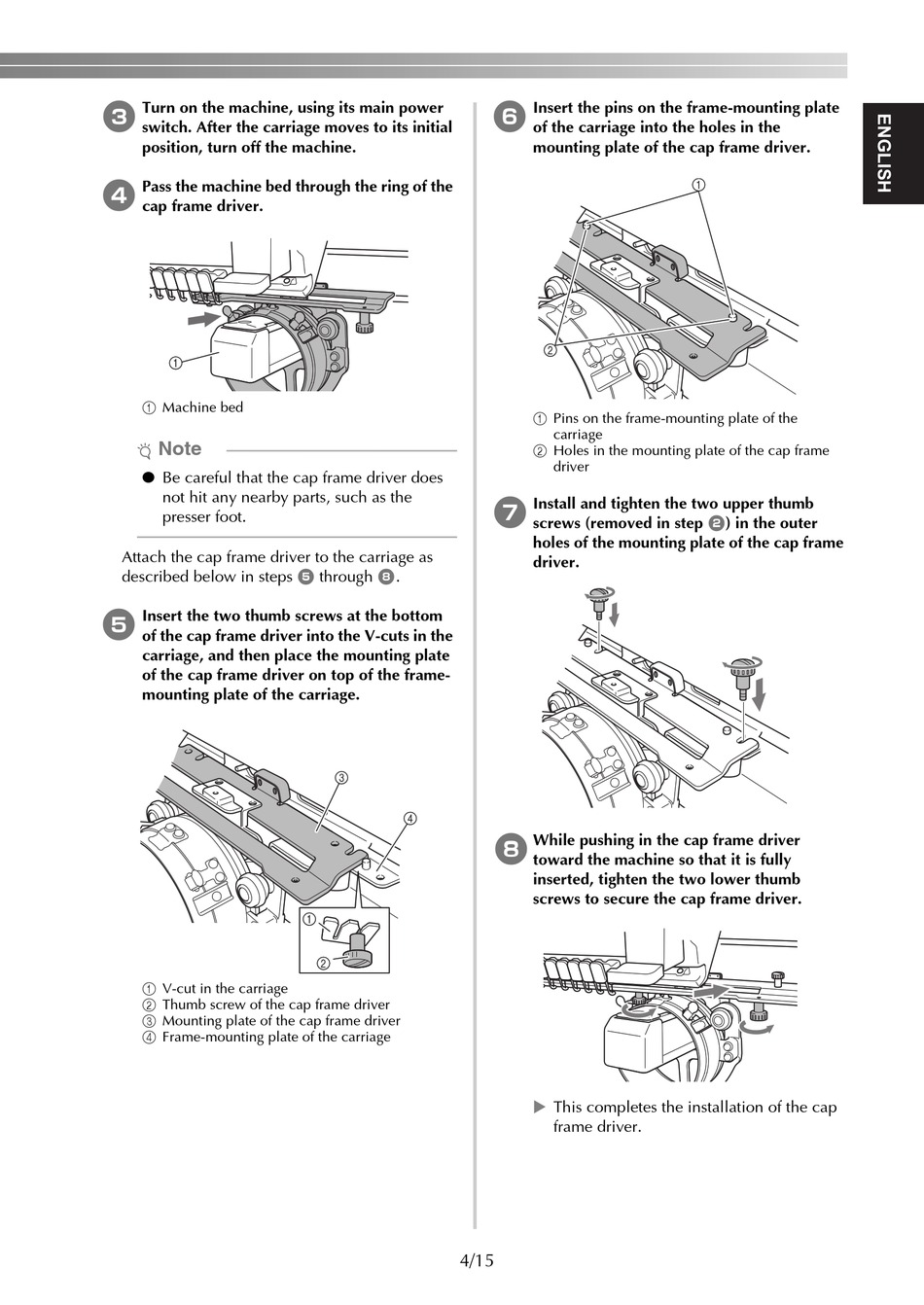

3 Turn on the machine, using its main power
switch. After the carriage moves to its initial
position, turn off the machine.
4 Pass the machine bed through the ring of the
cap frame driver.
1 Machine bed
Note
● Be careful that the cap frame driver does
not hit any nearby parts, such as the
presser foot.
Attach the cap frame driver to the carriage as
described below in steps
5 Insert the two thumb screws at the bottom
of the cap frame driver into the V-cuts in the
carriage, and then place the mounting plate
of the cap frame driver on top of the frame-
mounting plate of the carriage.
1 V-cut in the carriage
2 Thumb screw of the cap frame driver
3 Mounting plate of the cap frame driver
4 Frame-mounting plate of the carriage
5 8
through .
4/15
6 Insert the pins on the frame-mounting plate
of the carriage into the holes in the
mounting plate of the cap frame driver.
1 Pins on the frame-mounting plate of the
carriage
2 Holes in the mounting plate of the cap frame
driver
7 Install and tighten the two upper thumb
screws (removed in step
holes of the mounting plate of the cap frame
driver.
While pushing in the cap frame driver
8
toward the machine so that it is fully
inserted, tighten the two lower thumb
screws to secure the cap frame driver.
This completes the installation of the cap
frame driver.
2
) in the outer
