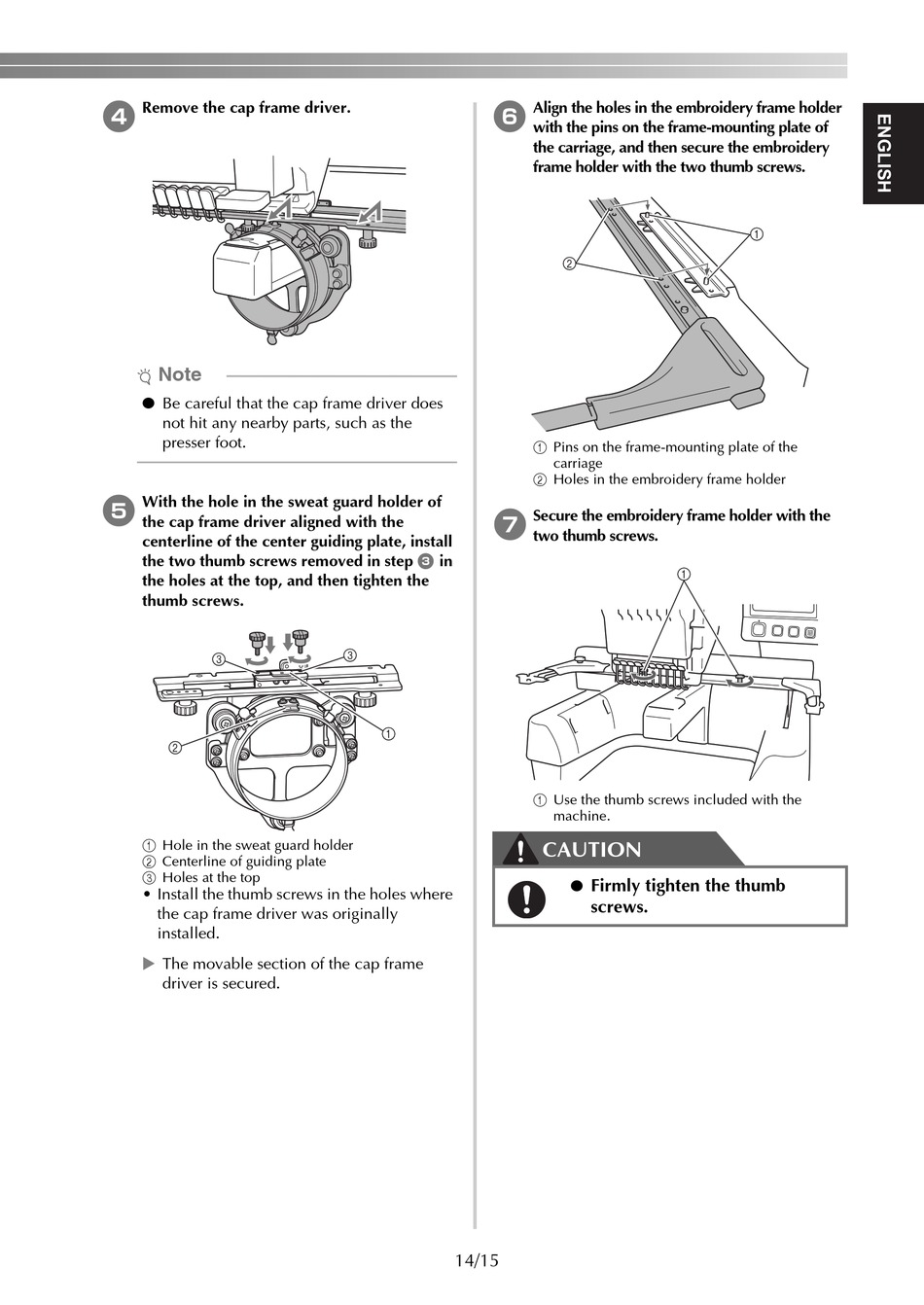

Brother PRCF5 User Manual page 15

4 Remove the cap frame driver.
Note
● Be careful that the cap frame driver does
not hit any nearby parts, such as the
presser foot.
5 With the hole in the sweat guard holder of
the cap frame driver aligned with the
centerline of the center guiding plate, install
the two thumb screws removed in step
the holes at the top, and then tighten the
thumb screws.
1 Hole in the sweat guard holder
2 Centerline of guiding plate
3 Holes at the top
• Install the thumb screws in the holes where
the cap frame driver was originally
installed.
The movable section of the cap frame
driver is secured.
6 Align the holes in the embroidery frame holder
with the pins on the frame-mounting plate of
the carriage, and then secure the embroidery
frame holder with the two thumb screws.
1 Pins on the frame-mounting plate of the
carriage
2 Holes in the embroidery frame holder
7 Secure the embroidery frame holder with the
two thumb screws.
3
in
1 Use the thumb screws included with the
machine.
CAUTION
●
Firmly tighten the thumb
screws.
14/15
