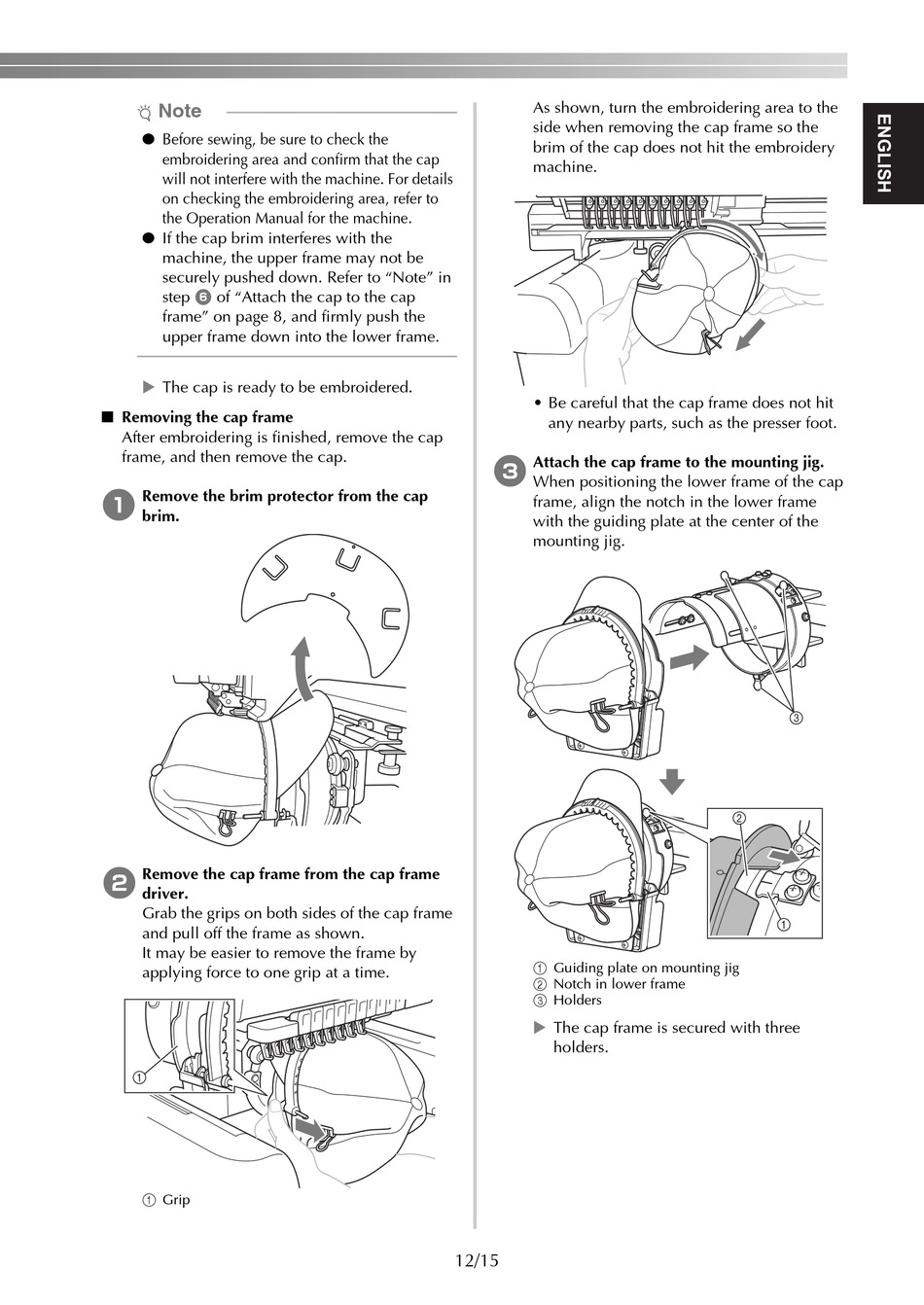

Brother PRCF5 User Manual page 13

Note
● Before sewing, be sure to check the
embroidering area and confirm that the cap
will not interfere with the machine. For details
on checking the embroidering area, refer to
the Operation Manual for the machine.
● If the cap brim interferes with the
machine, the upper frame may not be
securely pushed down. Refer to "Note" in
6
step of "Attach the cap to the cap
frame" on page 8, and firmly push the
upper frame down into the lower frame.
The cap is ready to be embroidered.
■ Removing the cap frame
After embroidering is finished, remove the cap
frame, and then remove the cap.
1 Remove the brim protector from the cap
brim.
2 Remove the cap frame from the cap frame
driver.
Grab the grips on both sides of the cap frame
and pull off the frame as shown.
It may be easier to remove the frame by
applying force to one grip at a time.
1 Grip
As shown, turn the embroidering area to the
side when removing the cap frame so the
brim of the cap does not hit the embroidery
machine.
• Be careful that the cap frame does not hit
any nearby parts, such as the presser foot.
3 Attach the cap frame to the mounting jig.
When positioning the lower frame of the cap
frame, align the notch in the lower frame
with the guiding plate at the center of the
mounting jig.
1 Guiding plate on mounting jig
2 Notch in lower frame
3 Holders
The cap frame is secured with three
holders.
12/15
