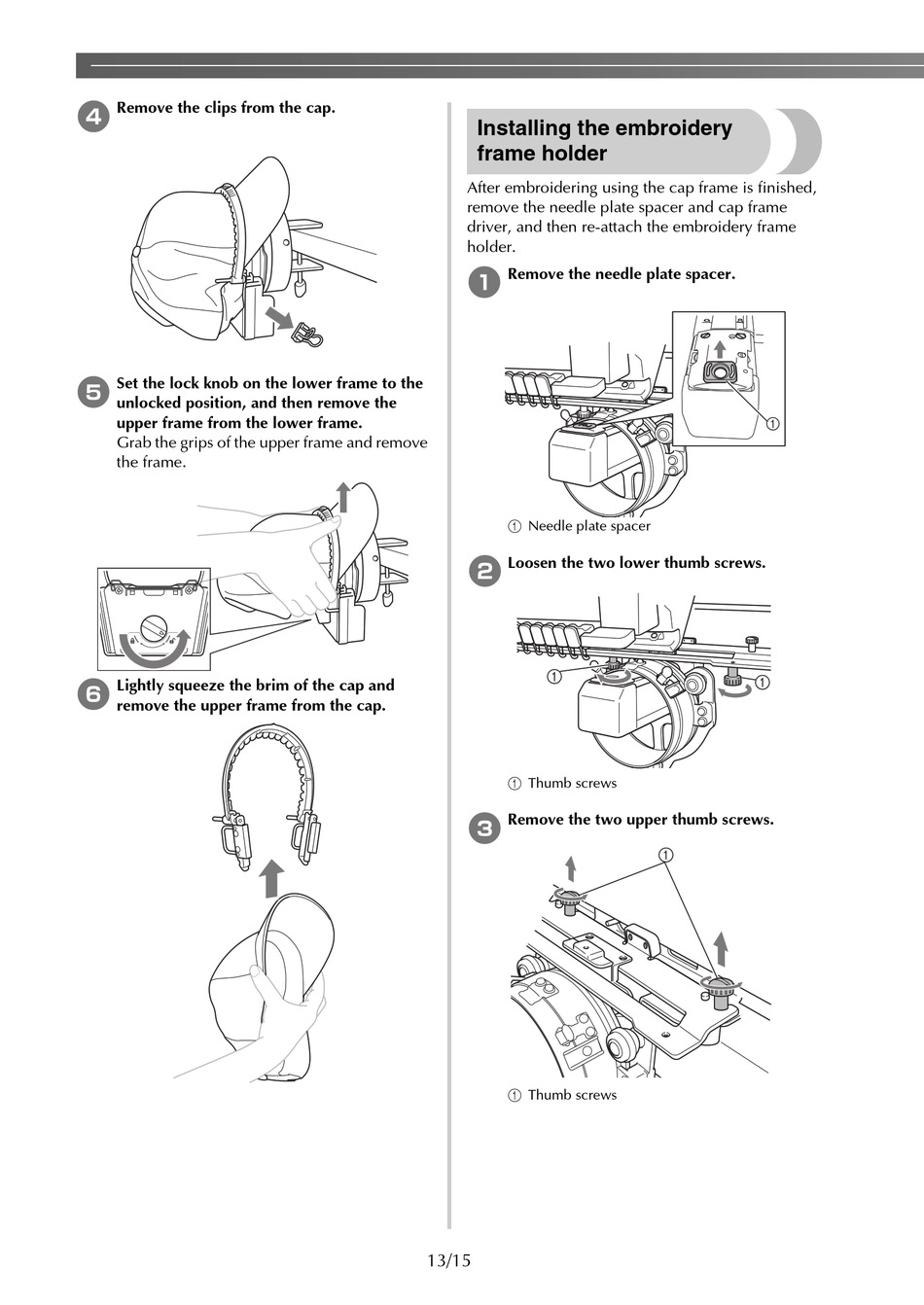

4 Remove the clips from the cap.
5 Set the lock knob on the lower frame to the
unlocked position, and then remove the
upper frame from the lower frame.
Grab the grips of the upper frame and remove
the frame.
6 Lightly squeeze the brim of the cap and
remove the upper frame from the cap.
Installing the embroidery
frame holder
After embroidering using the cap frame is finished,
remove the needle plate spacer and cap frame
driver, and then re-attach the embroidery frame
holder.
1 Remove the needle plate spacer.
1 Needle plate spacer
2 Loosen the two lower thumb screws.
1 Thumb screws
3 Remove the two upper thumb screws.
1 Thumb screws
13/15
