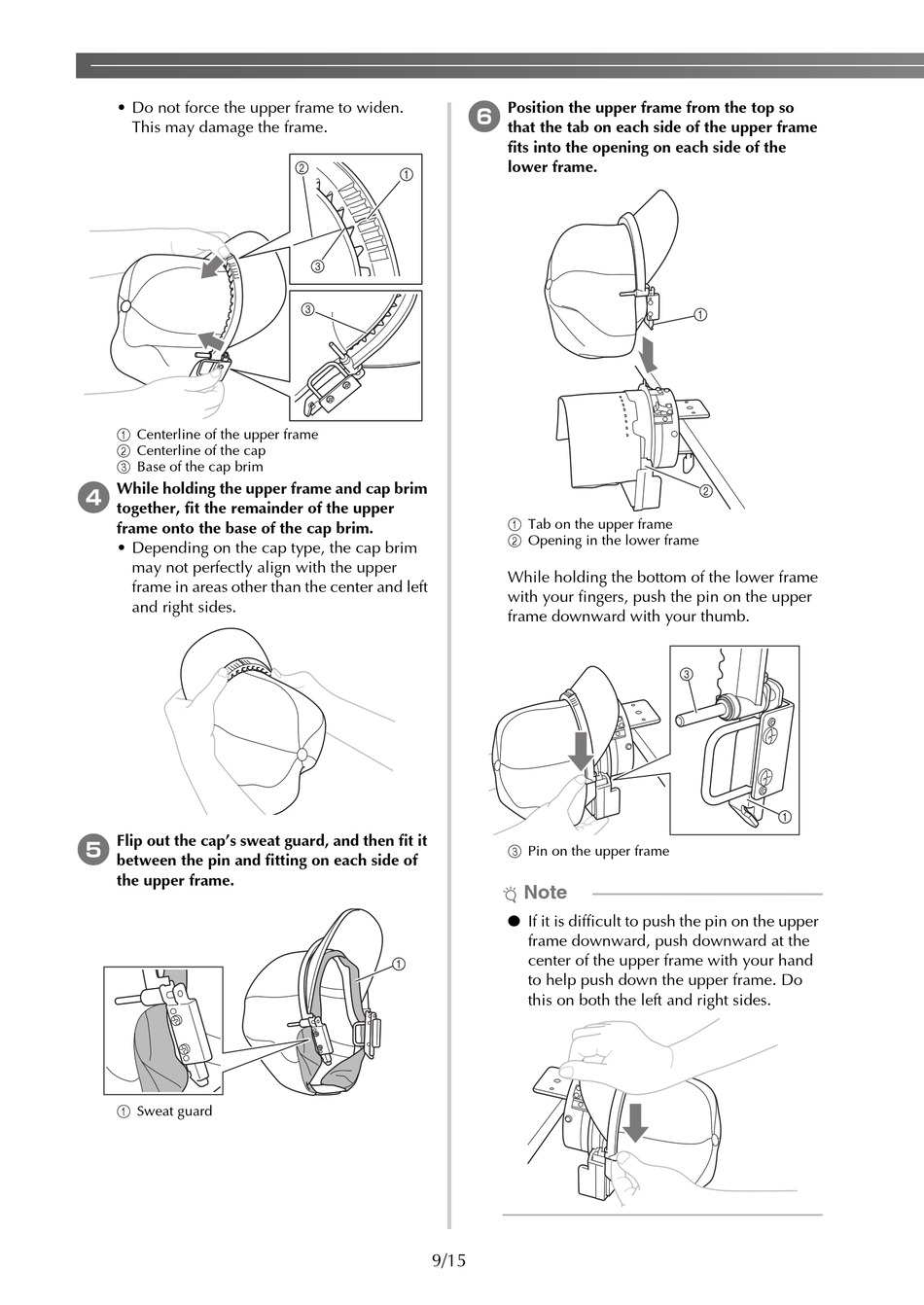

Brother PRCF5 User Manual page 10

• Do not force the upper frame to widen.
This may damage the frame.
1 Centerline of the upper frame
2 Centerline of the cap
3 Base of the cap brim
4 While holding the upper frame and cap brim
together, fit the remainder of the upper
frame onto the base of the cap brim.
• Depending on the cap type, the cap brim
may not perfectly align with the upper
frame in areas other than the center and left
and right sides.
5 Flip out the cap's sweat guard, and then fit it
between the pin and fitting on each side of
the upper frame.
1 Sweat guard
6 Position the upper frame from the top so
that the tab on each side of the upper frame
fits into the opening on each side of the
lower frame.
1 Tab on the upper frame
2 Opening in the lower frame
While holding the bottom of the lower frame
with your fingers, push the pin on the upper
frame downward with your thumb.
3 Pin on the upper frame
Note
● If it is difficult to push the pin on the upper
frame downward, push downward at the
center of the upper frame with your hand
to help push down the upper frame. Do
this on both the left and right sides.
9/15
