Data Indirect With Displacement - Atmel AVR AT90S2313 Manual

Data Direct
Data Indirect with
Displacement
Data Indirect
AT90S2313
12
Operand address is contained in 6 bits of the instruction word. n is the destination or
source register address.

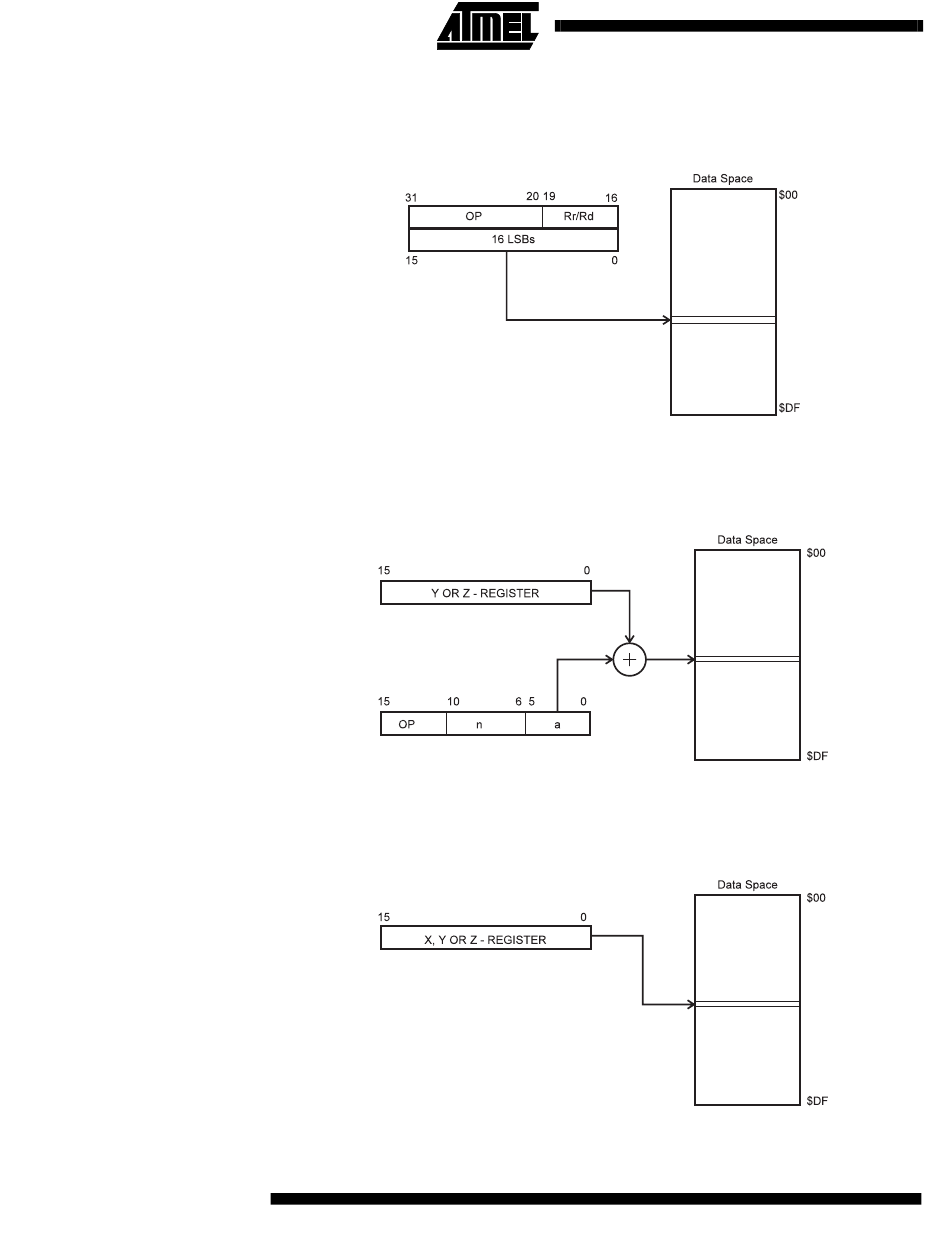

Figure 12. Direct Data Addressing
A 16-bit data address is contained in the 16 LSBs of a 2-word instruction. Rd/Rr specify
the destination or source register.
Figure 13. Data Indirect with Displacement
Operand address is the result of the Y- or Z-register contents added to the address con-
tained in 6 bits of the instruction word.
Figure 14. Data Indirect Addressing
Operand address is the contents of the X-, Y- or Z-register.
