Display menu

Using navigation buttons it is possible to quick & easy navigate through the menu:
- SEL/Exit to enter or exit a level
- Arrow up/down to circle on the same level
- To save the modified parameters press and hold the SEL /MENU button
message "SAVED!".

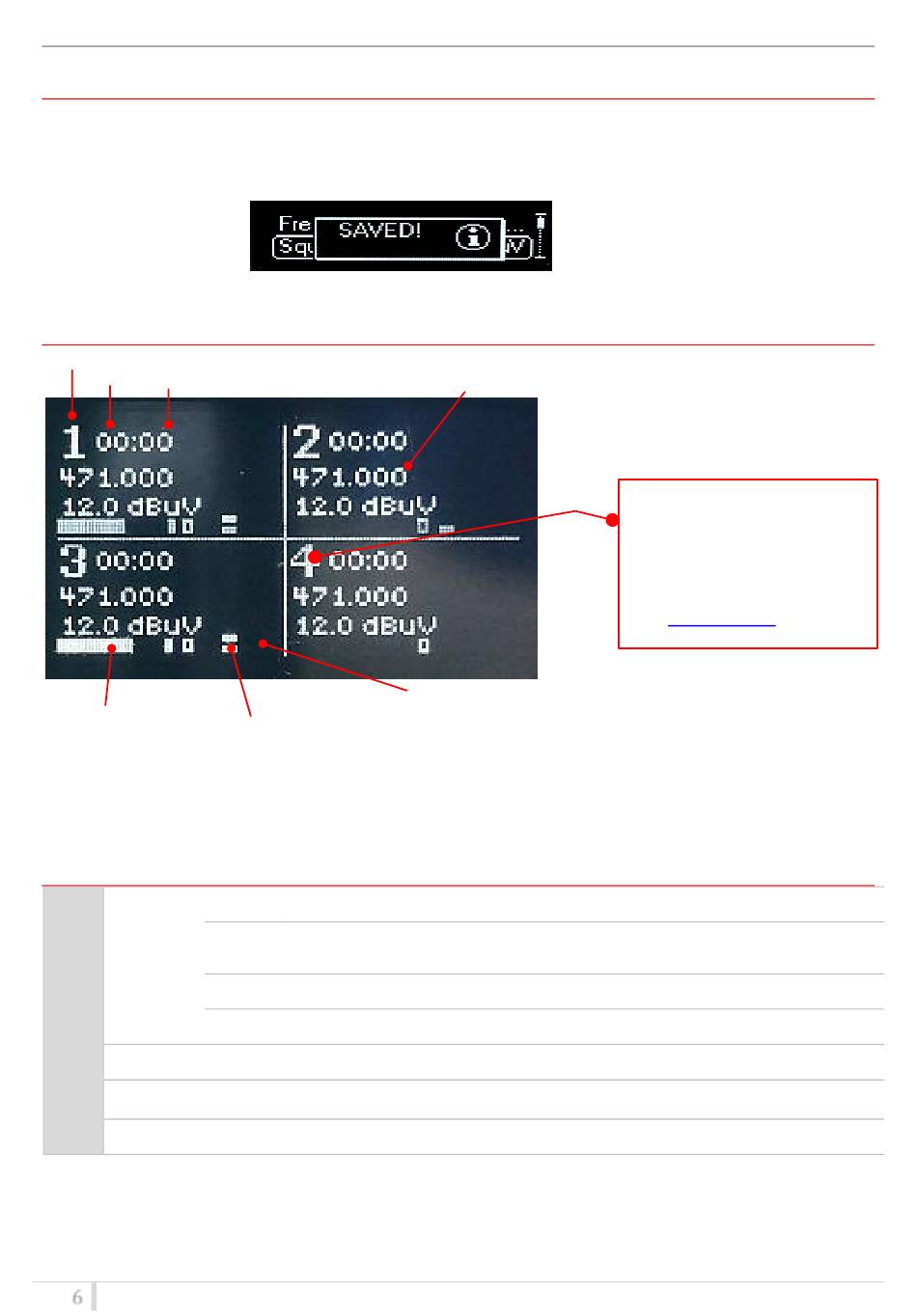

Status screen

RX Number
Group Channel
Audio Modulation Bar
(from -42 to 0 dB)
Peak deviation ≥ 56KHz
Tree menu
Preset
Main
Setup
Info
Bluetooth Pwr on No/Yes
6
TX Battery
RF bar
(8 steps of 10dBµV,
from 10 to 80 dBµV)
Active
Load
U01-Preset1/U02-Preset2/U03-Preset3.... U16-Preset16
Save
U01-Preset1/U02-Preset2/U03-Preset3.... U16-Preset16
Factory
Supply/ Model / Serial / Range / Base / HW/ FW / Diagnostic / Alarms
Frequency
Level
❾ until appears the
WARNING!
RX Number and Rx red
LED blink if frequency is
out of filter (32MHz)
see NOTE page 3
