high performances microphone system

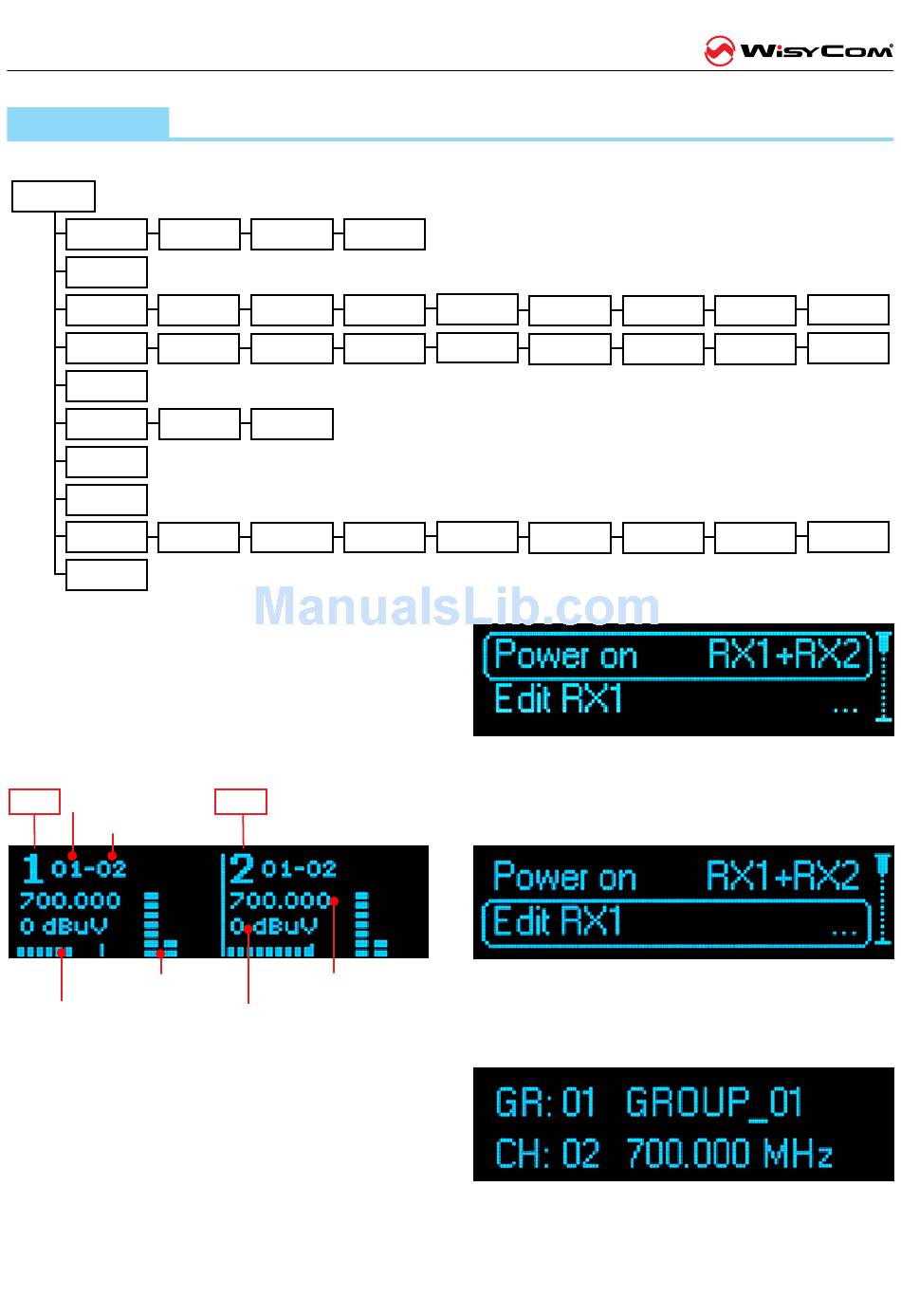

Display menu

Following a draft of MCR42 menu's structure.

Main Menu

Headphone

Volume

Power on

Edit Rx1
Edit Rx2
LINE mode
Display Contrast
Infrared
Sync
Info
Fact. Preset
Using navigation buttons it is possible to quick &
easy navigate through the MCR42 menu:
- Sel/Exit to enter or exit a level
- Arrow up/down to circle on the same level
MAIN MENU
RX1
Group
Channel
RF Bar
Audio Bar
HEADPHONE
Left and right channel of stereo jack can be mapped
respectively on line 1 & 2 or on a Line 1 + Line 2.
Cycle through menu's with up/down arrow to get
your desired configuration then confirm with SEL.
It is possible to set the desired output level from
Max (+6 dB) to min (-24 dB) in 1 dB step.
Rx
Gr. Ch Frequency
Gr. Ch Frequency
On Timeout
Power Model
RX2
Frequency
Squelch Level
Signal
Expander
Squelch
Expander
Squelch
Range
Serial
POWER ON
To enable each of the two true diversity receiveirs:
Rx1 & Rx2, just Rx1 or just Rx2.

EDIT RX1/RX2

Selecting this sub-menu most of RX1 setups are
configurable.

EDIT RX1:GR-Ch

Select current group and channel. Group name and
channel frequency are displayed on the right.
Tone Sq. Audio Out
Tone Sq. Audio Out
Option Boot Loader
Scan
Sig. Phase
Scan
Sig. Phase
Application Base
