MCR54 User Manual
Edit RX> Audio Out: Sig. Phase
To change audio phase of 0 deg. or 180 deg.
Edit RX> Audio Out: Cal. Tone
If Cal. tone is enabled, a calibration tone is transmitted from the outputs of the receiver and the
audio LED of the relative RX become blue (to turn off the calibration tone, go on the menu
Advanced > RX and press EXIT)
It's possible to select the audio level between -30dB to 0 dB (referred to the maximum output
level set on the audio outputs). It represent the reference of the peak deviation (56KHz).
The frequency of the tone can be chosen between 400/600/1000 Hz.

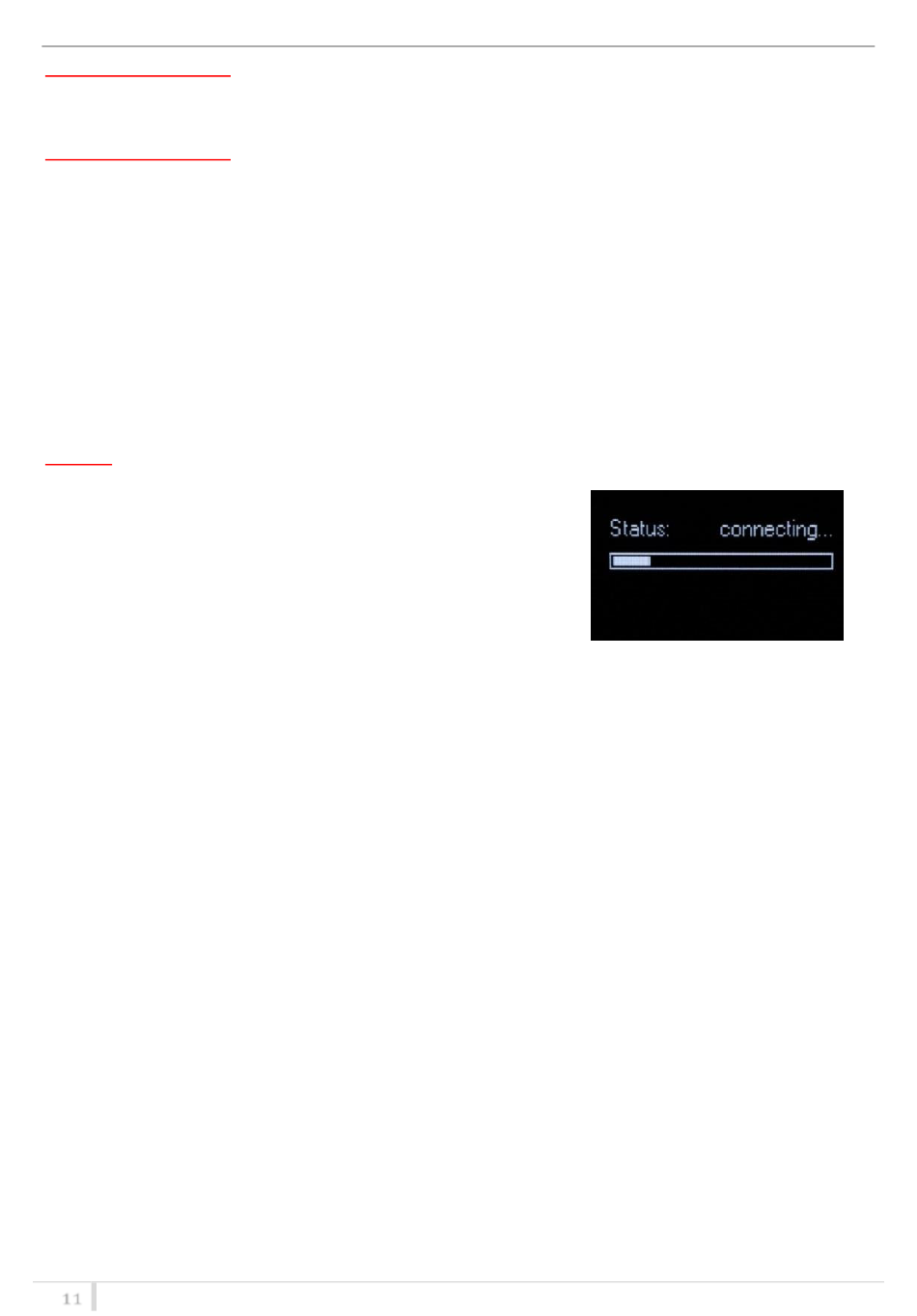

Edit RX: Sync
The SYNC function is useful to tune a transmitter on the same
frequency of the receiver via the IR interface. Before starting
the sync function tune the receiver on desired channel,
manually or using the SCAN utility. After this, enable the IR
interface on the transmitter. Now press UP&EXIT buttons
together or enter in the Sync menu to start the SYNC function.
Keep the IR window of the transmitter in front of the IR window of the receiver and, as soon as the
connection is done, the receiver will send to the transmitter all the information needed.
If the operation is not possible, (i.e. the frequency range of the transmitter is not compatible with
the frequency of the receiver), the display will show an error message.
If the transmitter has the function "NAME" enabled, when the sync function is completed it will
show the same name of the synchronized receiver.
11
