Platform Maintenance

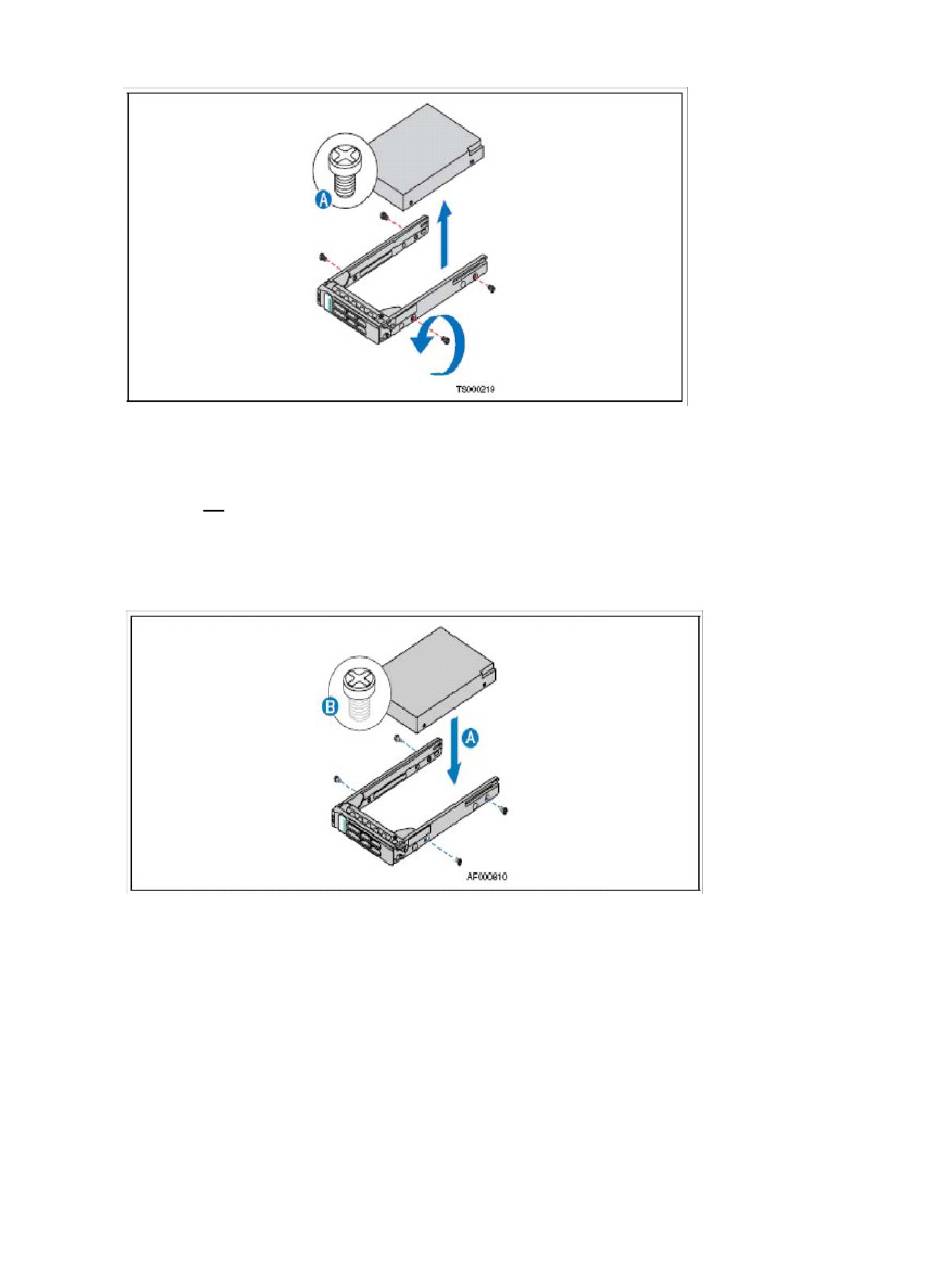

Figure 23: Removing a Hard Drive from the Drive Tray

Procedure Installing a Hard Drive
1. Install the new hard drive in the drive tray ("A" in
Tray) and secure the hard drive with the four screws (Inset "B" in
to the Drive Tray).that come with the drive tray.

Figure 24: Attaching a Hard Drive to the Drive Tray

2. With the drive tray locking lever fully open, push the drive tray into the drive bay in the chassis
until it stops (Figure 25: Inserting New Drive Assembly into
Note: The drive bays are numbered from right (drive 0, sda) to left (drive 2, sdc). When fewer than
three drives are installed, drive bay 0 must be used first, then drive bay 1.
3. Press the lever until it snaps shut to close the hard drive in the bay (Inset "A" in
New Drive Assembly into
910-5680-001 Revision F, February 2014
Chassis).
Field Replaceable Units (FRUs)
Figure 24: Attaching a Hard Drive to the Drive
Figure 24: Attaching a Hard Drive
Chassis).
Figure 25: Inserting
51
