Platform Maintenance
Pin #
15

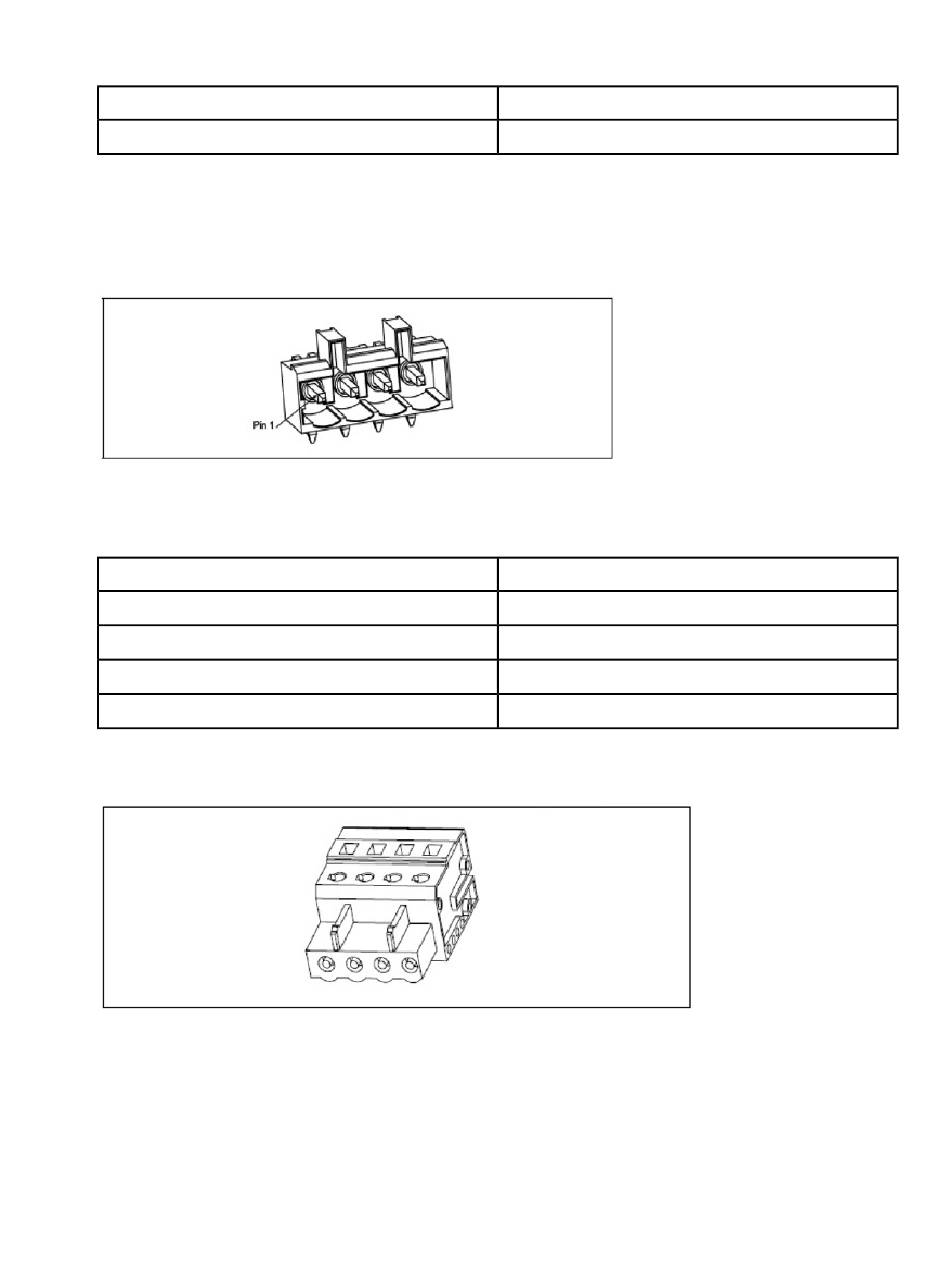

DC Power Supply Unit Input Connector

The DC input power is delivered to the power supply through a 4-pin connector (Molex* MTC
55757-0420 or equivalent) as shown in

Figure 33: DC Power Input Connector and Pin Assignments

Table 12: DC Power Supply Module Input Pin Assignments

Pin $
1
2
3
4
The mating connector for customer cable termination is a Molex 54927-0420 or equivalent, as shown
in
Figure 34: DC Power Supply Module Power Input Mating

Figure 34: DC Power Supply Module Power Input Mating Connector

Front Panel Switches and Status Indicators

Figure 35: T1200 AS Front Panel Board LED Indicators and Switches
switches and LED indicators.
910-5680-001 Revision F, February 2014
Description
PwrAlarm - COM
Figure 33: DC Power Input Connector and Pin
Description
-48V
-48V
RTN
RTN
Connector.
External Hardware Connections
Assignments.
shows the locations of the front panel
61
