Platform Maintenance

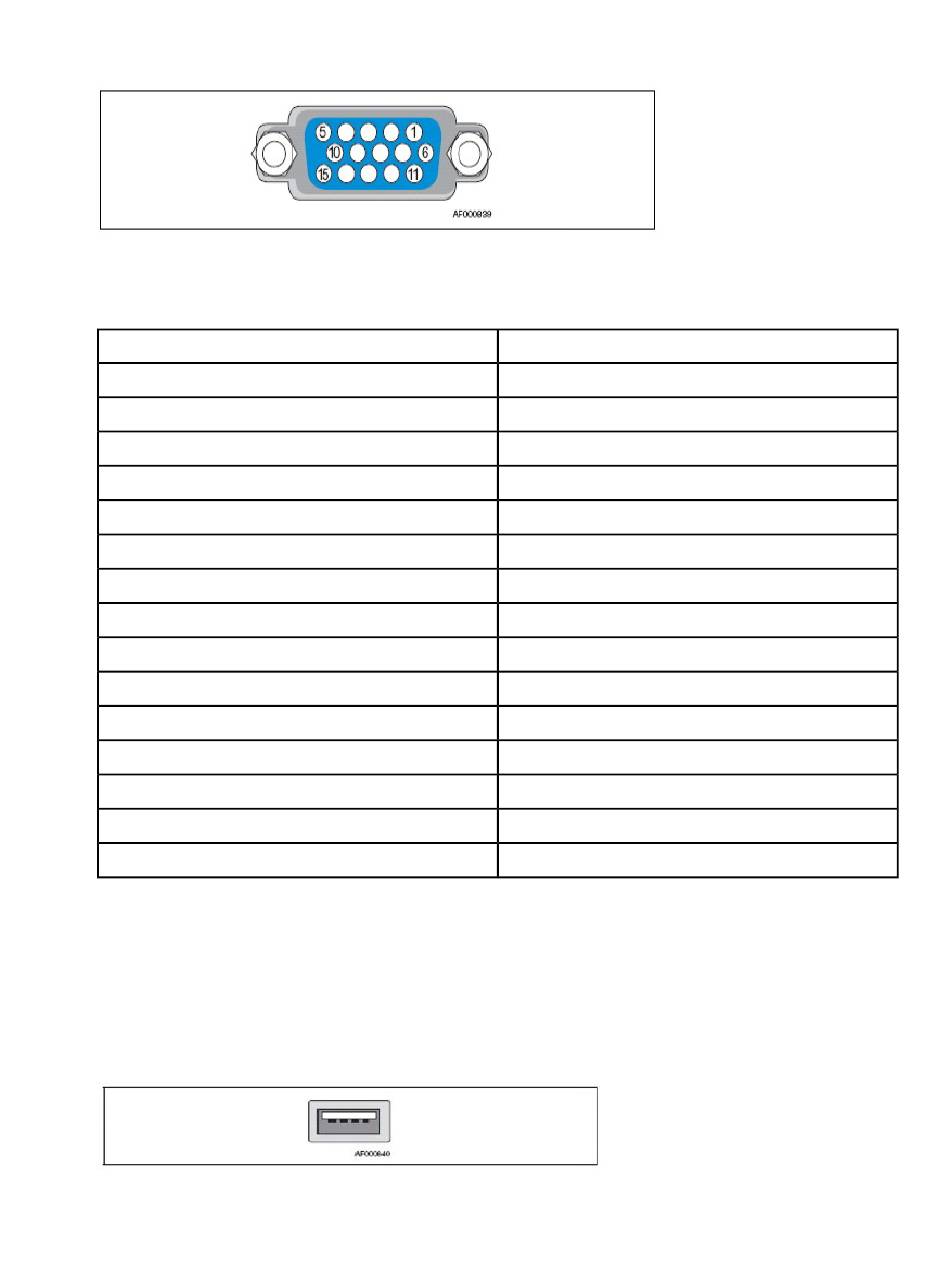

Figure 29: Video Connector

Table 8: Video Connector Pin-Out

Pin #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

Universal Serial Bus (USB) Interface

The server board provides four USB ports. USB ports 0 and 1 are brought to the rear. USB ports 2 and
3 are routed to the front panel board where USB port 2 is brought to the front of the system and USB
port 3 is used internally for interfacing to the optional Intel
built-in external USB ports permit direct connection of three USB peripherals without an external hub.
If more devices are required, an external hub can be connected to any of the built-in ports.

Figure 30: External USB Connector

910-5680-001 Revision F, February 2014
External Hardware Connections
Signal
Red (analog color signal R)
Green (analog color signal G)
Blue (analog color signal B)
No connection
GND
GND
GND
GND
Fused Vcc (+5V)
GND
No connection
DDCDAT
HSYNC (horizontal sync)
VSYNC (vertical sync)
DDCCLK
®
Z-U130 Value Solid State Drive. The
