Remote Management Module Connector; Telco Alarms Connector; Figure 32: Telco Alarms Connector; Table 11: Telco Alarms Connector Pin-Out - Oracle Tekelec 1200 Maintenance Manual

Platform Maintenance
For each Ethernet connector there are two status indicator LEDs integrated into the connector assembly,
a green LED to the left of the connector and a bi-color LED to the right of the connector. The green
LED indicates the connection status for each port. The bi-color LED indicates the connection speed.

Remote Management Module Connector

The Tekelec 1200 application server supports the installation of an optional Intel
Module 2, which provides a 1000 Mbps Ethernet interface through a GCM connector module. The
connector outline, pin-out, and LED indications for the GCM connector are the same as for the server's
standard Ethernet connectors.

Telco Alarms Connector

The system provides one Telco DB15 alarms connector on the rear panel.

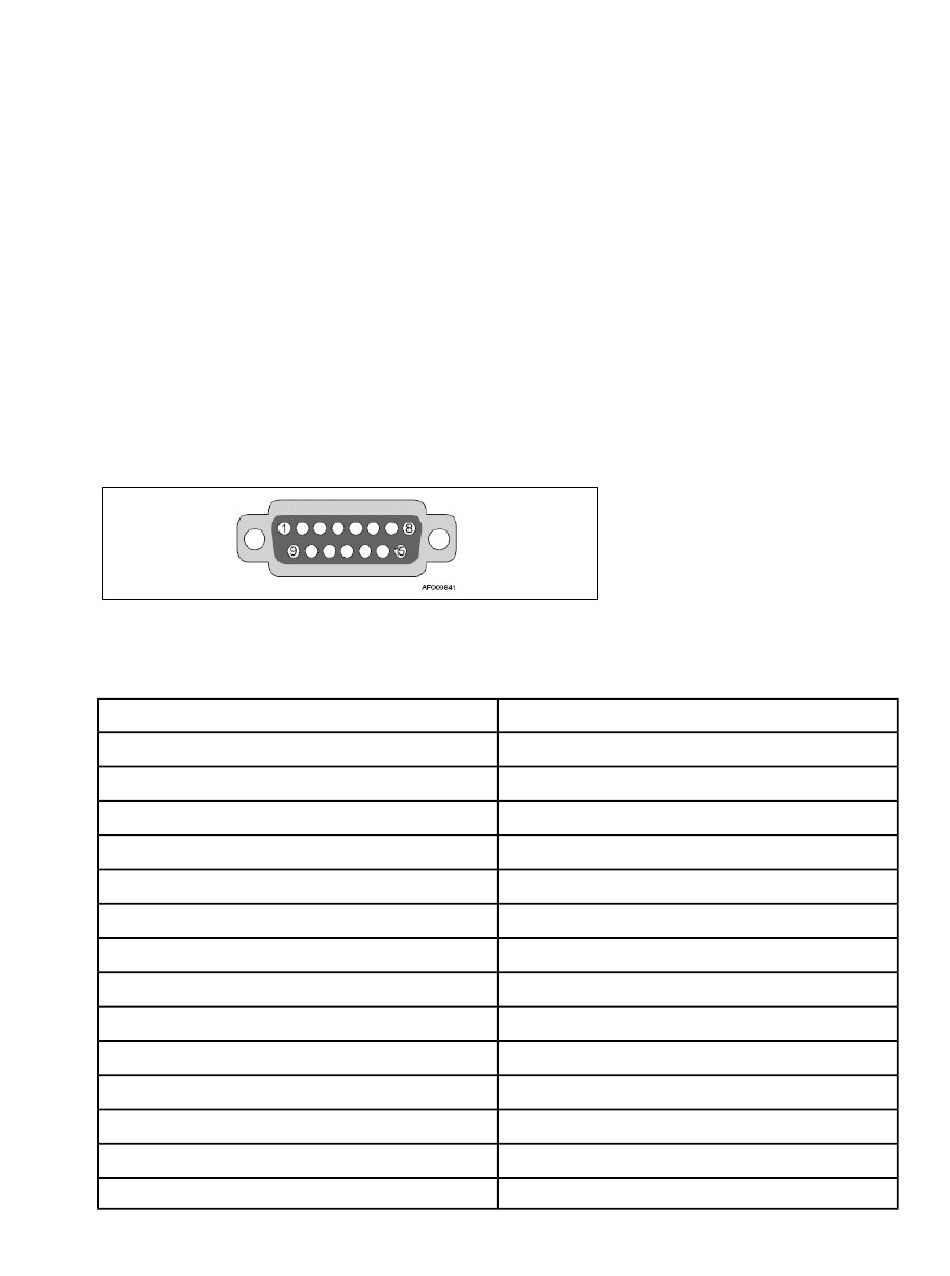

Connector shows the Telco alarms connector as viewed from the back of the server and
Alarms Connector Pin-Out

Figure 32: Telco Alarms Connector

Table 11: Telco Alarms Connector Pin-Out

Pin #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
910-5680-001 Revision F, February 2014
shows the pin-out for the connector.
External Hardware Connections
Figure 32: Telco Alarms
Description
MinorReset +
MinorReset -
MajorReset +
MajorReset -
CriticalAlarm - NO
CriticalAlarm - NC
CriticalAlarm - COM
MinorAlarm - NO
MinorAlarm - NC
MinorAlarm - COM
MajorAlarm - NO
MajorAlarm - NC
MajorAlarm - COM
PwrAlarm - NO
®
Remote Management
Table 11: Telco
