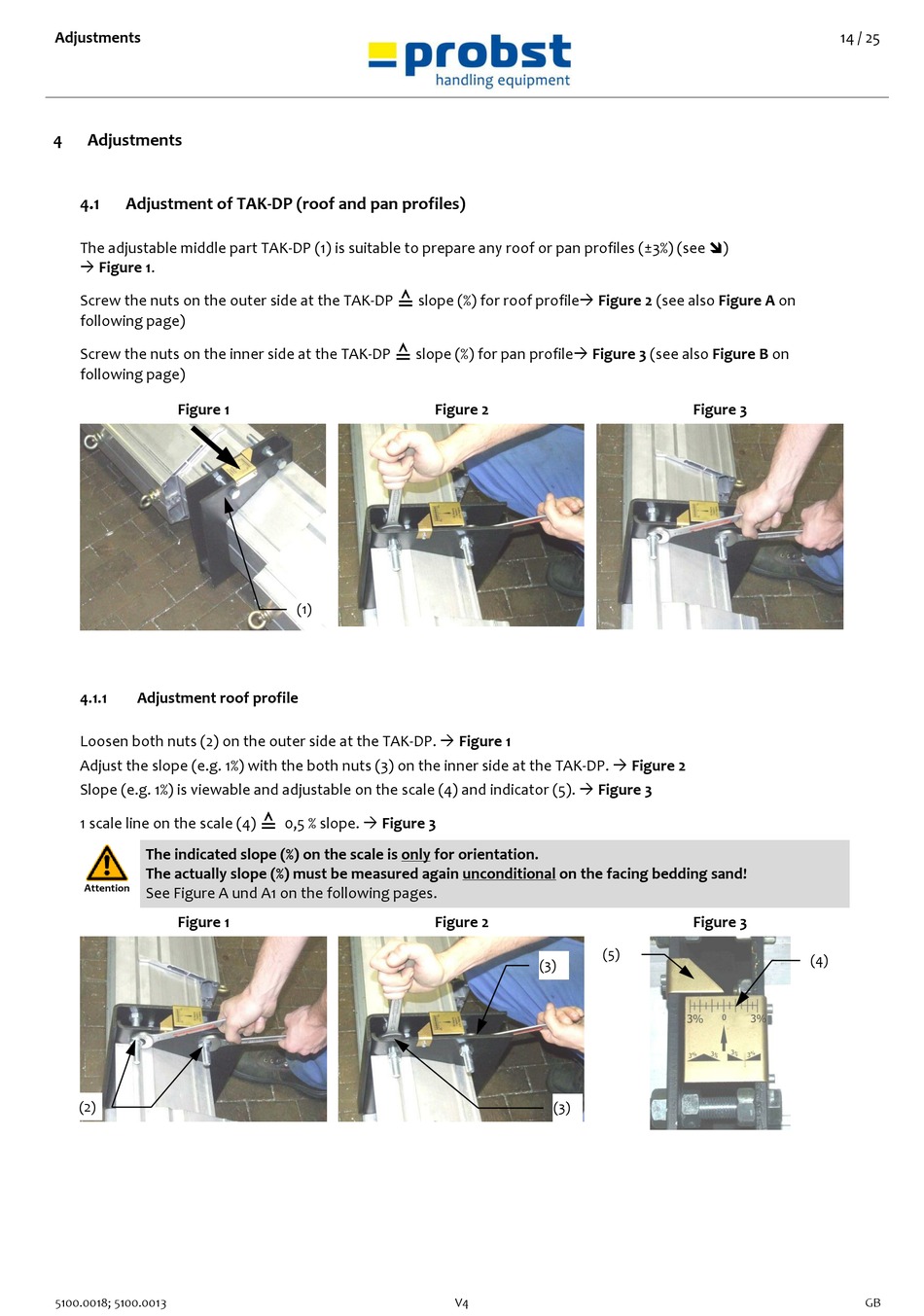

Adjustments; Adjustment Of Tak-Dp (Roof And Pan Profiles); Adjustment Roof Profile - probst TAK Series Operating Instructions Manual

Adjustments

4 Adjustments
4.1

Adjustment of TAK-DP (roof and pan profiles)

The adjustable middle part TAK-DP (1) is suitable to prepare any roof or pan profiles (±3%) (see )
 Figure 1.
Screw the nuts on the outer side at the TAK-DP
following page)
Screw the nuts on the inner side at the TAK-DP
following page)
Figure 1
4.1.1

Adjustment roof profile

Loosen both nuts (2) on the outer side at the TAK-DP.  Figure 1
Adjust the slope (e.g. 1%) with the both nuts (3) on the inner side at the TAK-DP.  Figure 2
Slope (e.g. 1%) is viewable and adjustable on the scale (4) and indicator (5).  Figure 3
1 scale line on the scale (4)
The indicated slope (%) on the scale is only for orientation.
The actually slope (%) must be measured again unconditional on the facing bedding sand!
Attention
See Figure A und A1 on the following pages.
Figure 1
(2)
5100.0018; 5100.0013
≙
slope (%) for roof profile Figure 2 (see also Figure A on
≙
slope (%) for pan profile Figure 3 (see also Figure B on
(1)
≙
0,5 % slope.  Figure 3
Figure 2
Figure 2
(5)
(3)
(3)
V4
14 / 25
Figure 3
Figure 3
(4)
