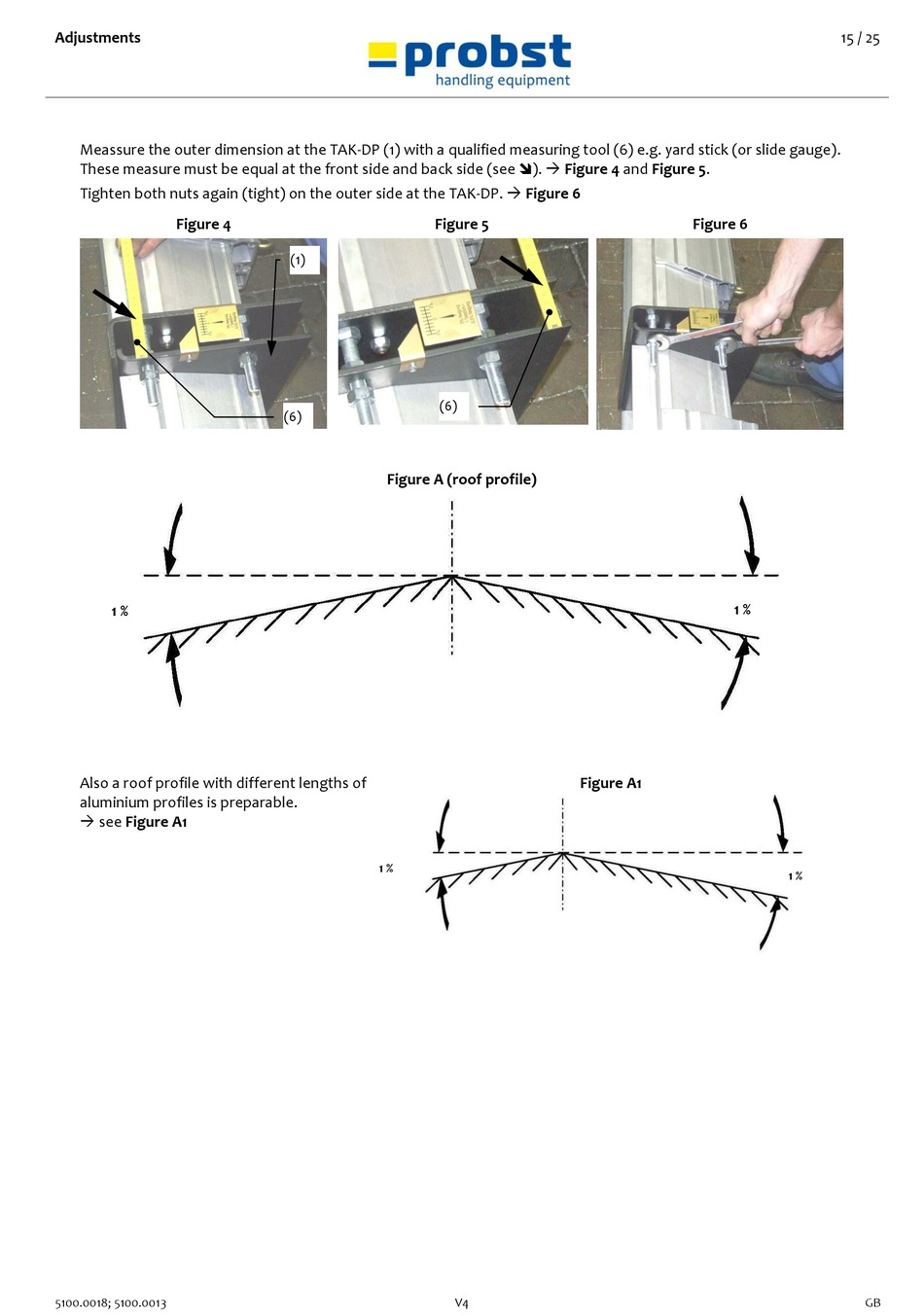

Adjustments
Meassure the outer dimension at the TAK-DP (1) with a qualified measuring tool (6) e.g. yard stick (or slide gauge).
These measure must be equal at the front side and back side (see ).  Figure 4 and Figure 5.
Tighten both nuts again (tight) on the outer side at the TAK-DP.  Figure 6
Figure 4
1 %
Also a roof profile with different lengths of
aluminium profiles is preparable.
 see Figure A1
5100.0018; 5100.0013
Figure 5
(1)
(6)
(6)
Figure A (roof profile)
1 %
V4
Figure 6
1 %
Figure A1
15 / 25
1 %
