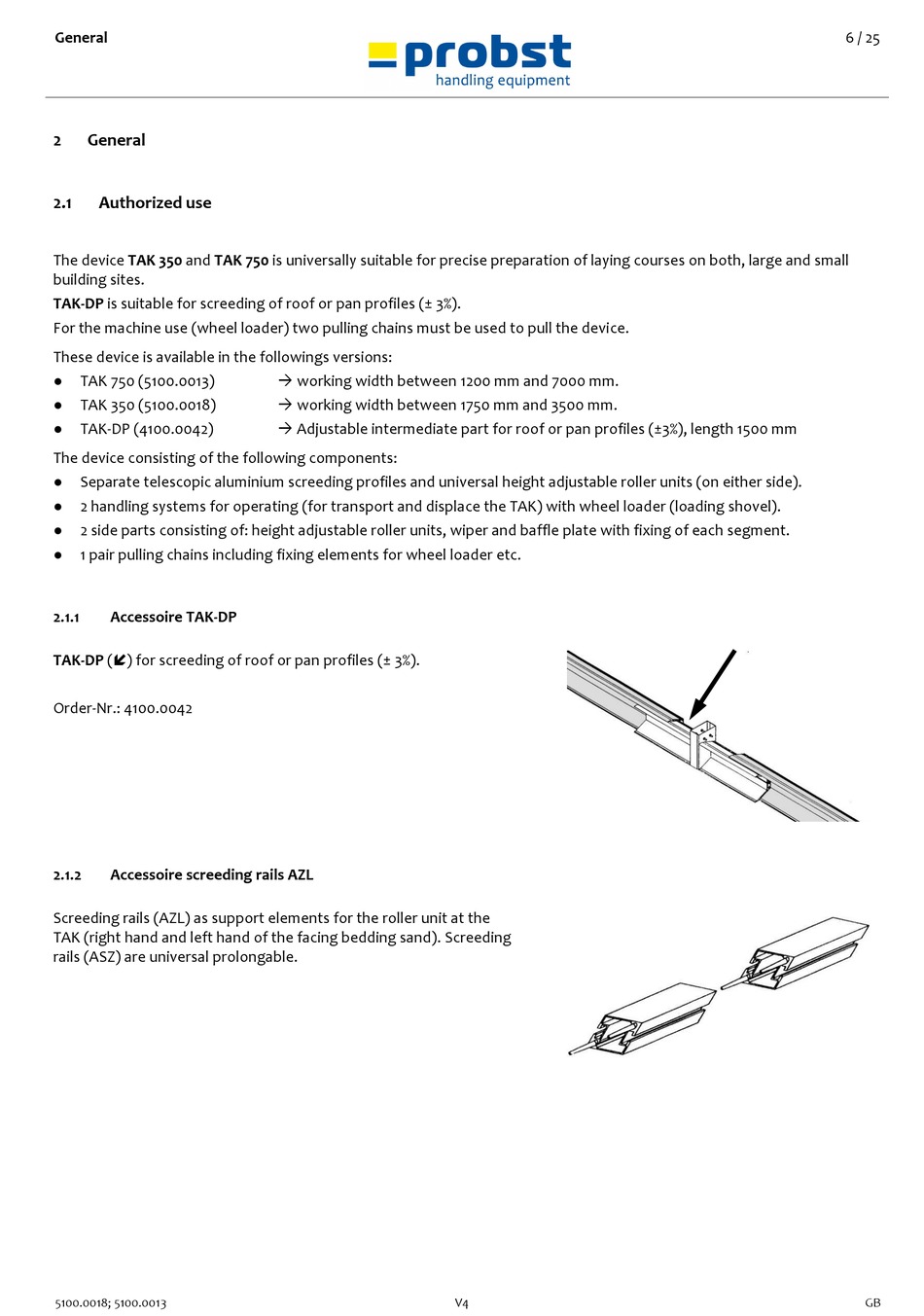

General

2 General
2.1

Authorized use

The device TAK 350 and TAK 750 is universally suitable for precise preparation of laying courses on both, large and small
building sites.
TAK-DP is suitable for screeding of roof or pan profiles (± 3%).
For the machine use (wheel loader) two pulling chains must be used to pull the device.
These device is available in the followings versions:
●
TAK 750 (5100.0013)
●
TAK 350 (5100.0018)
●
TAK-DP (4100.0042)
The device consisting of the following components:
●
Separate telescopic aluminium screeding profiles and universal height adjustable roller units (on either side).
●
2 handling systems for operating (for transport and displace the TAK) with wheel loader (loading shovel).
●
2 side parts consisting of: height adjustable roller units, wiper and baffle plate with fixing of each segment.
●
1 pair pulling chains including fixing elements for wheel loader etc.
2.1.1

Accessoire TAK-DP

TAK-DP () for screeding of roof or pan profiles (± 3%).
Order-Nr.: 4100.0042
2.1.2

Accessoire screeding rails AZL

Screeding rails (AZL) as support elements for the roller unit at the
TAK (right hand and left hand of the facing bedding sand). Screeding
rails (ASZ) are universal prolongable.
5100.0018; 5100.0013
 working width between 1200 mm and 7000 mm.
 working width between 1750 mm and 3500 mm.
 Adjustable intermediate part for roof or pan profiles (±3%), length 1500 mm
