Installation

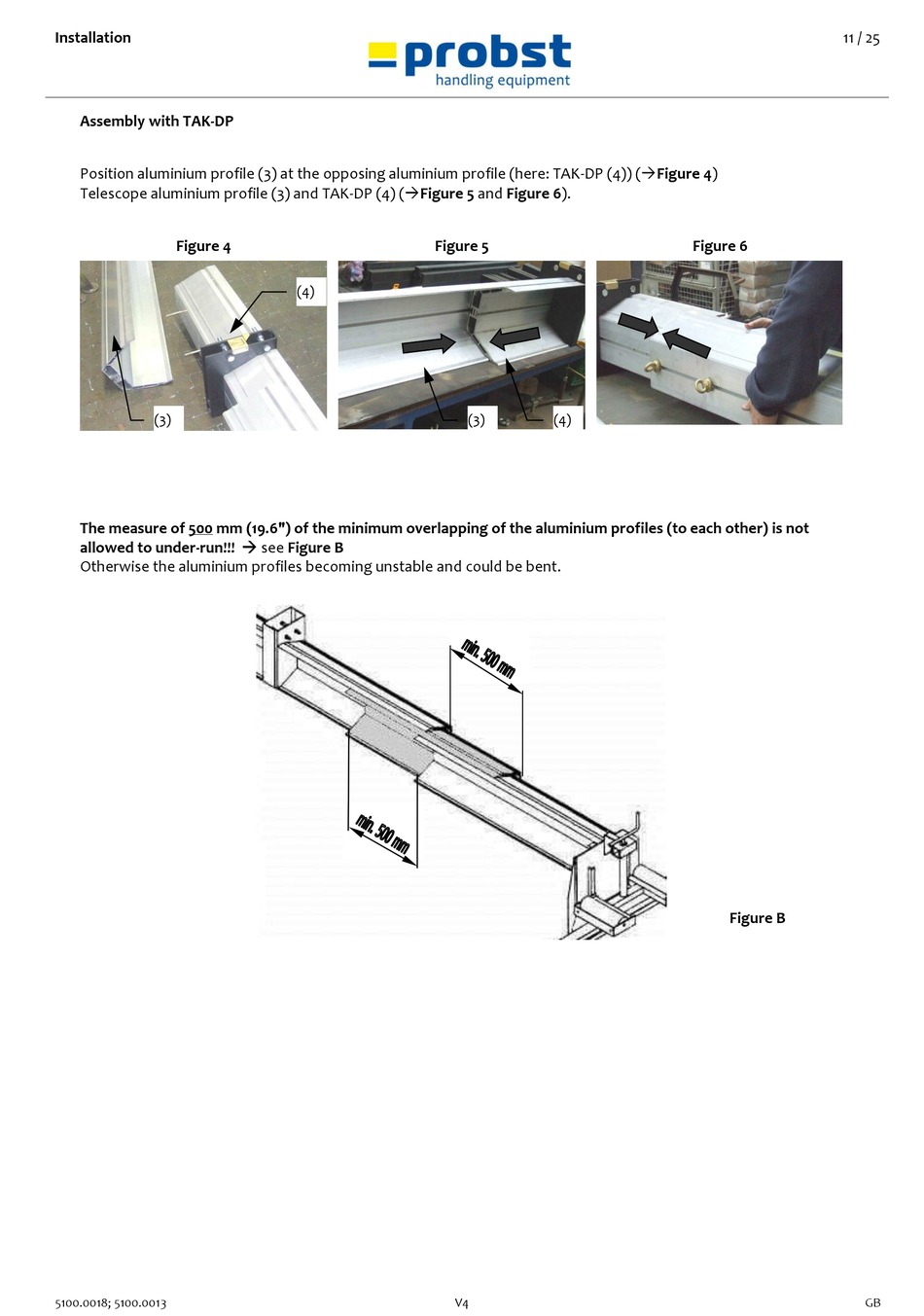

Assembly with TAK-DP
Position aluminium profile (3) at the opposing aluminium profile (here: TAK-DP (4)) (Figure 4)
Telescope aluminium profile (3) and TAK-DP (4) (Figure 5 and Figure 6).
Figure 4
(3)
The measure of 500 mm (19.6") of the minimum overlapping of the aluminium profiles (to each other) is not
allowed to under-run!!! see Figure B
Otherwise the aluminium profiles becoming unstable and could be bent.
5100.0018; 5100.0013
Figure 5
(4)
(3)
V4
Figure 6
(4)
11 / 25
Figure B
GB
