Adjustments
4.1.2

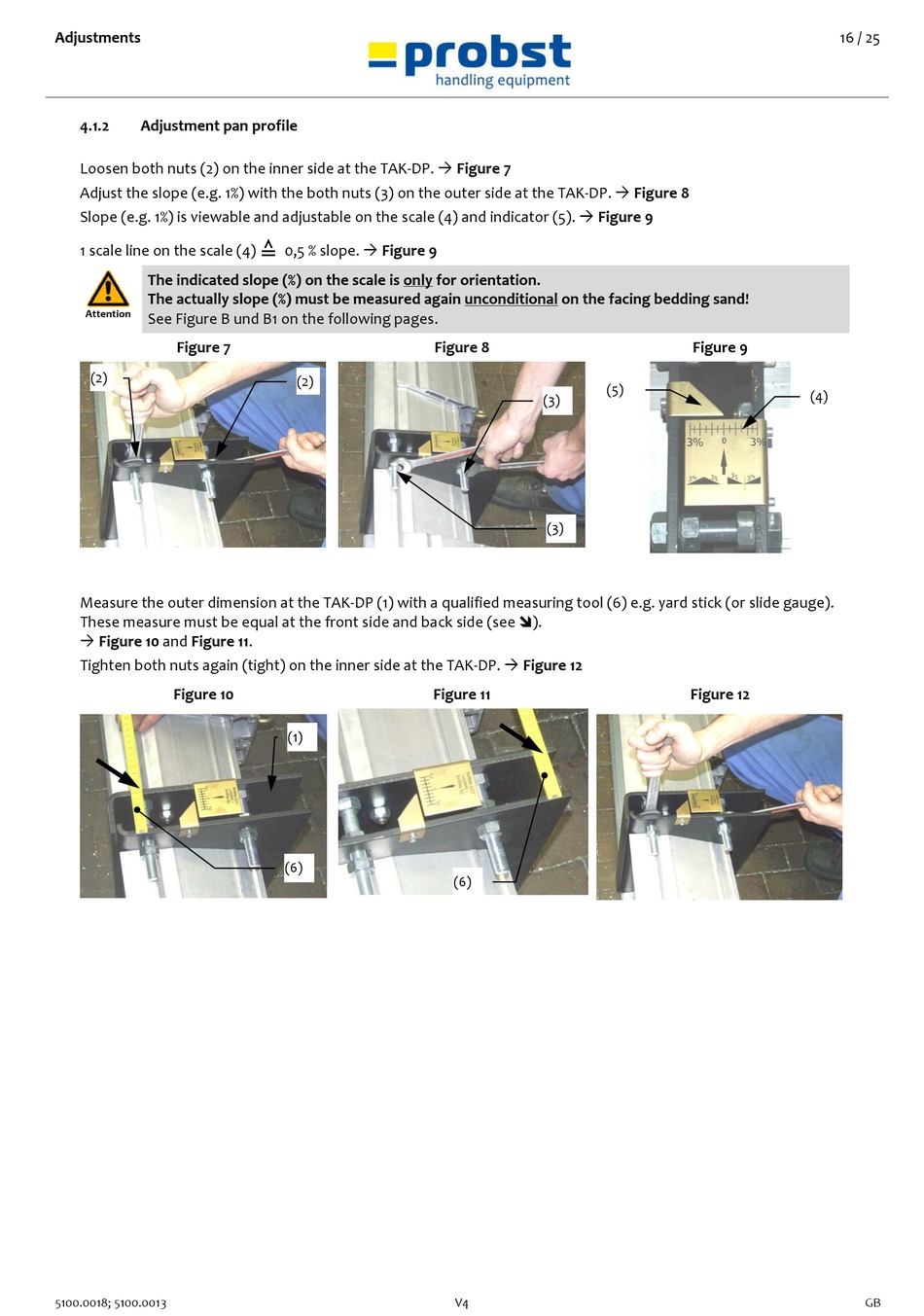

Adjustment pan profile

Loosen both nuts (2) on the inner side at the TAK-DP.  Figure 7
Adjust the slope (e.g. 1%) with the both nuts (3) on the outer side at the TAK-DP.  Figure 8
Slope (e.g. 1%) is viewable and adjustable on the scale (4) and indicator (5).  Figure 9
1 scale line on the scale (4)
The indicated slope (%) on the scale is only for orientation.
The actually slope (%) must be measured again unconditional on the facing bedding sand!
Attention
See Figure B und B1 on the following pages.
Figure 7
(2)
Measure the outer dimension at the TAK-DP (1) with a qualified measuring tool (6) e.g. yard stick (or slide gauge).
These measure must be equal at the front side and back side (see ).
 Figure 10 and Figure 11.
Tighten both nuts again (tight) on the inner side at the TAK-DP.  Figure 12
Figure 10
5100.0018; 5100.0013
≙
0,5 % slope.  Figure 9
(2)
Figure 11
(1)
(6)
Figure 8
(5)
(3)
(3)
(6)
V4
16 / 25
Figure 9
(4)
Figure 12
