Installation
3.1.3

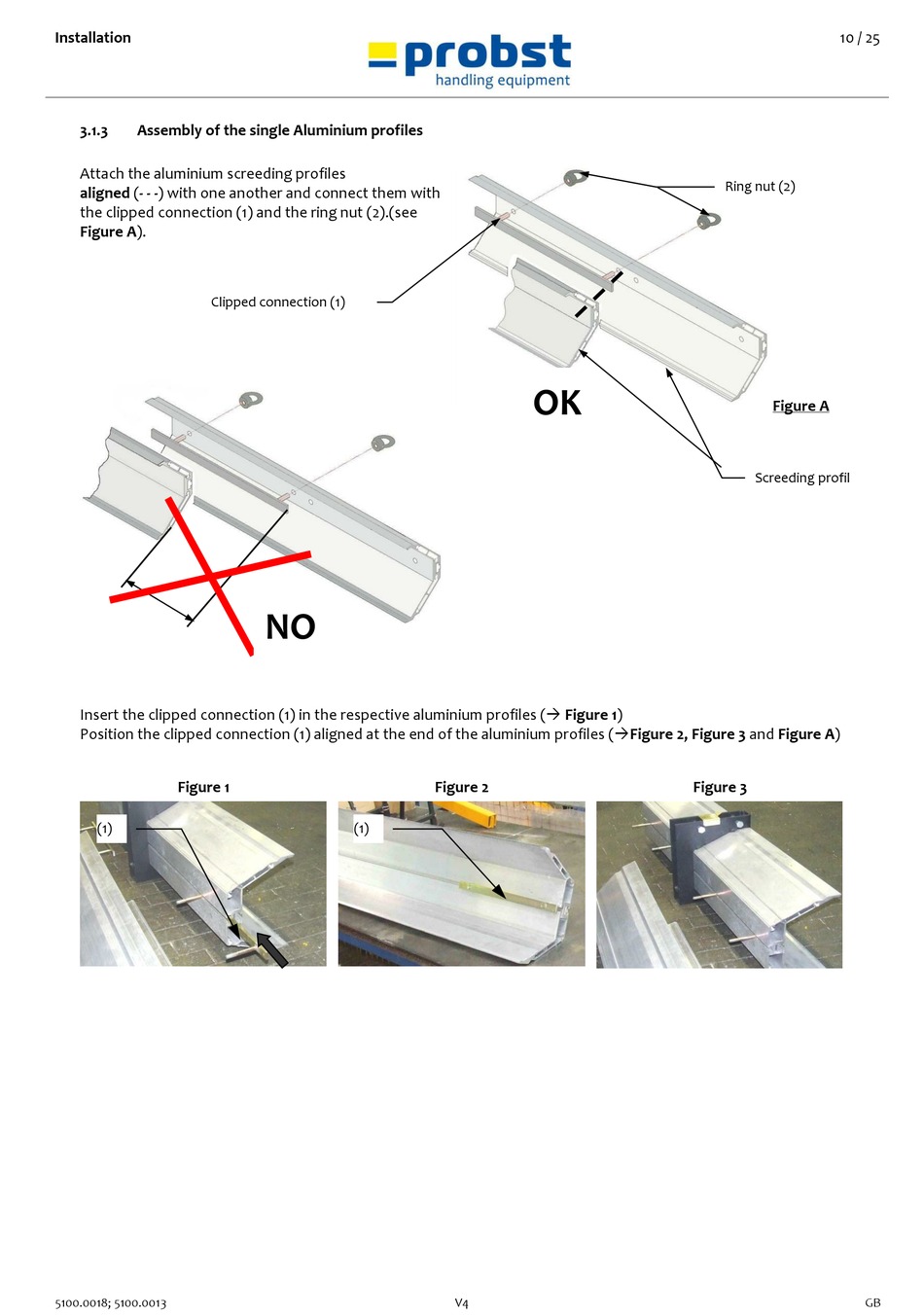

Assembly of the single Aluminium profiles
Attach the aluminium screeding profiles
aligned (- - -) with one another and connect them with
the clipped connection (1) and the ring nut (2).(see
Figure A).
Clipped connection (1)
Insert the clipped connection (1) in the respective aluminium profiles ( Figure 1)
Position the clipped connection (1) aligned at the end of the aluminium profiles (Figure 2, Figure 3 and Figure A)
Figure 1
(1)
5100.0018; 5100.0013
NO
Figure 2
(1)
OK
V4
10 / 25
Ring nut (2)
Figure A
Screeding profil
Figure 3
GB
